2. System Administration
ROX™ v2.2 User Guide 37 RuggedBackbone™ RX1500
2. System Administration
This chapter describes administration-related functions and the Administration menu. Information on
the Administration submenus is found throughout Part 1 of this guide.
2.1. Administration menu

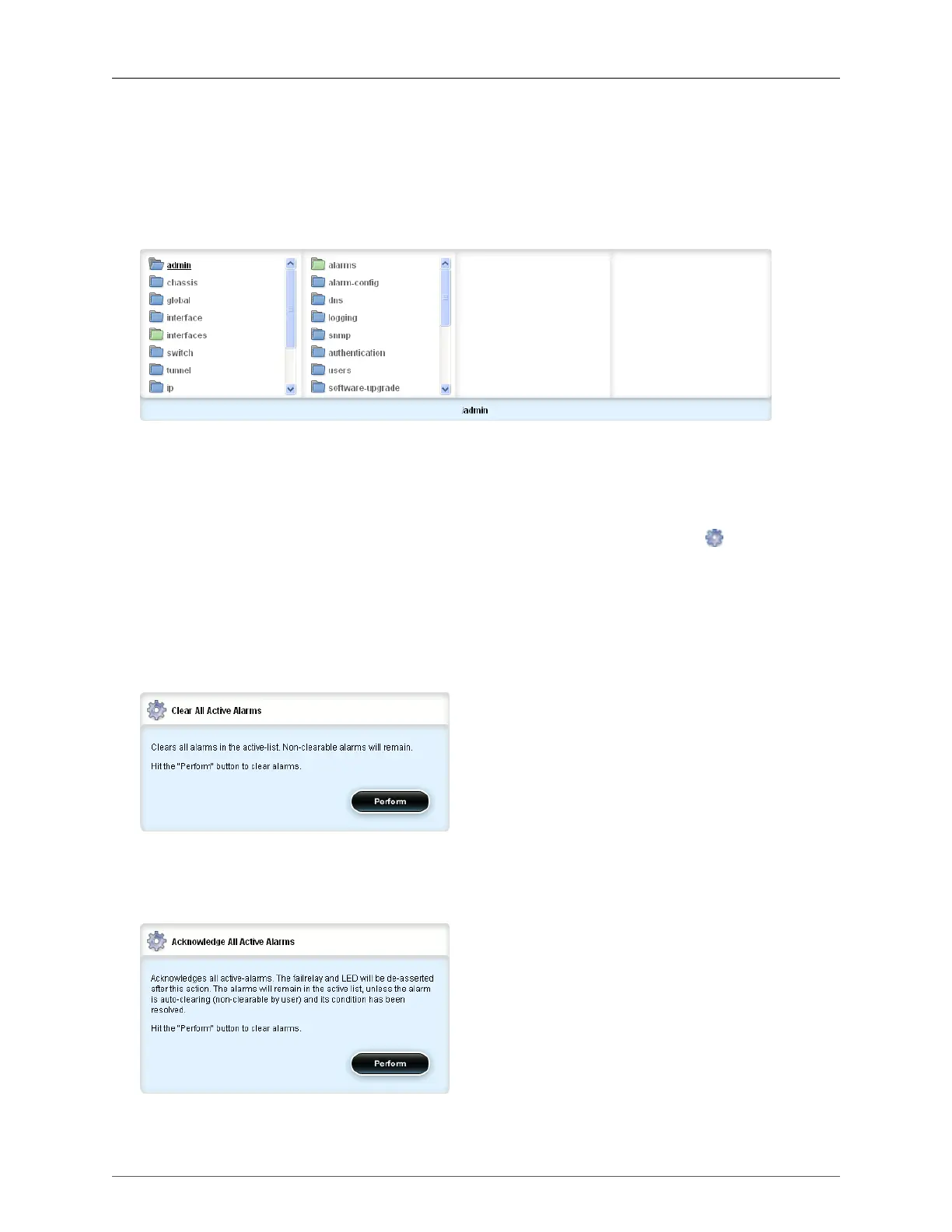

Figure 2.1. Administration menu
The Administration (Admin) menu is accessible from the main menu. Use this menu to link to submenus
related to alarms, DNS, logging, SNMP, authentication, user IDs and passwords, software versions
(upgraded) and netconf.
As well, you can link directly from the Admin menu to commands called "actions" (see below) that
will clear or acknowledge all alarms, shut down or reboot the system, set the system clock or restore
factory defaults.
2.2. System Commands
This section describes where to find basic system commands using the Administration menu and its
menu actions. The following forms are accessible from the Administration menu.
Figure 2.2. Clear All Alarms Menu Action form
To clear all alarms, click on the clear-all-alarms menu action and then click the Perform button on the
Clear All Alarms form.
Figure 2.3. Acknowledge All Alarms Menu Action form

RuggedCom RuggedBackbone RX1500 Specifications

General

Power Supply	Dual redundant, hot-swappable power supplies
Switching Capacity	Up to 128 Gbps
Operating Temperature Range	-40°C to +85°C
Mounting	DIN rail or panel mount
Certifications	IEEE 1613, IEC 61850-3, EN 50155, EN 50121-4
Power Input	24/48VDC or 110/220 VAC
Enclosure	Rugged metal
Type	Modular Layer 3 switch
