RuggedCom RuggedBackbone RX1500 User Manual

23. WAN
ROX™ v2.2 User Guide 256 RuggedBackbone™ RX1500
The number of IPCP (Internet Protocol Control Protocol) packets.

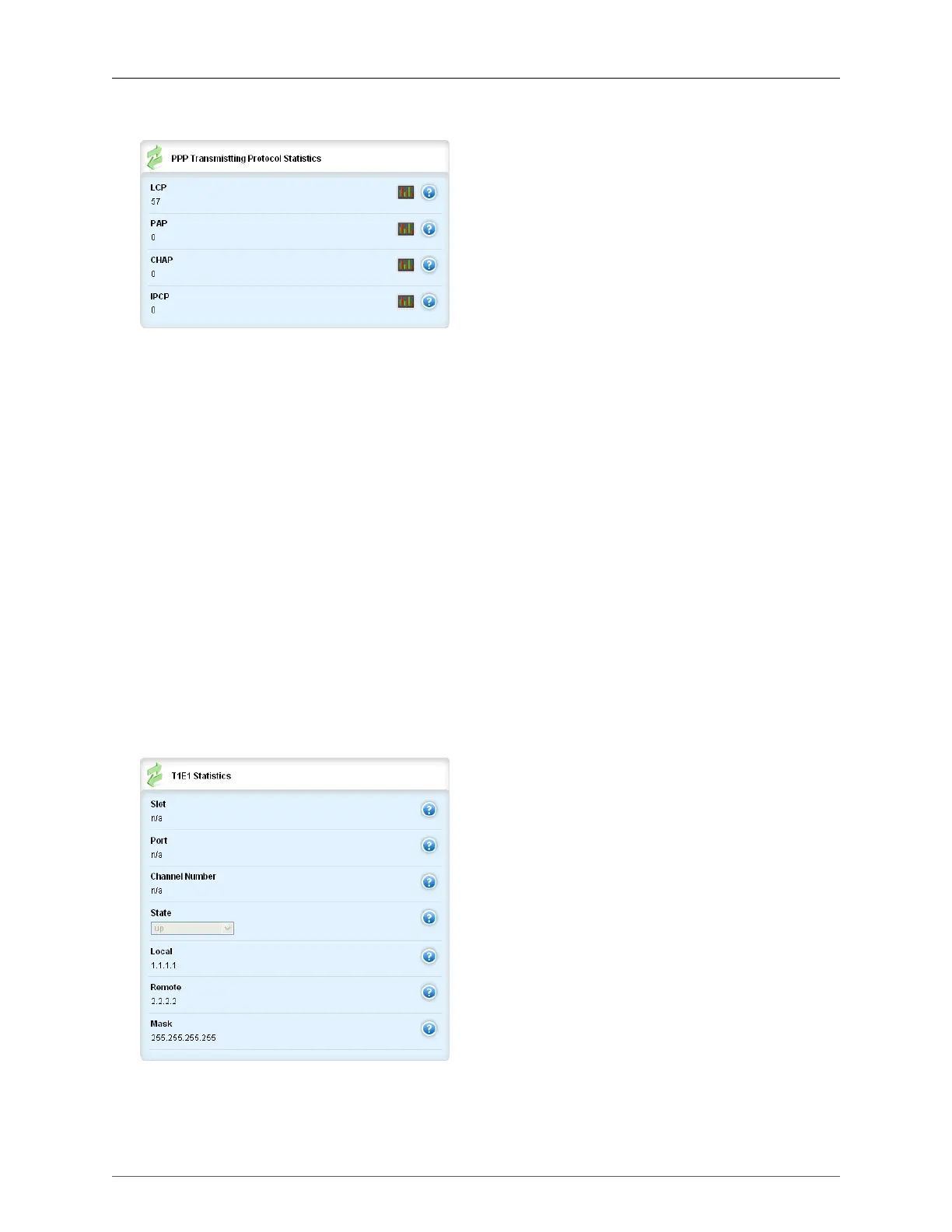

Figure 23.30. PPP Transmitting Protocol Statistics form
The PPP Receiving Protocol Statistics form displays PPP transmitting statistics. The path to this form
is interfaces/wan/t1e1/{line module}/ppp-stats. Additional statistics forms can be found under this ppp-
stats submenu.
LCP
Synopsis: unsigned integer
The number of LCP (Link Control Protocol) packets.
PAP
Synopsis: unsigned integer
The number of PAP (Password Authentication Protocol) packets.
CHAP
Synopsis: unsigned integer
The number of CHAP (Challenge Handshake Authentication Protocol) packets.
IPCP
Synopsis: unsigned integer
The number of IPCP (Internet Protocol Control Protocol) packets.
23.3.2.2. MLPPP Statistics
Figure 23.31. T1E1 Statistics form
The path to this form is interfaces/wan/t1e1/{mlppp line module}.

RuggedCom RuggedBackbone RX1500 Specifications

General

Power Supply	Dual redundant, hot-swappable power supplies
Switching Capacity	Up to 128 Gbps
Operating Temperature Range	-40°C to +85°C
Mounting	DIN rail or panel mount
Certifications	IEEE 1613, IEC 61850-3, EN 50155, EN 50121-4
Power Input	24/48VDC or 110/220 VAC
Enclosure	Rugged metal
Type	Modular Layer 3 switch
