40. VRRP
ROX™ v2.2 User Guide 479 RuggedBackbone™ RX1500

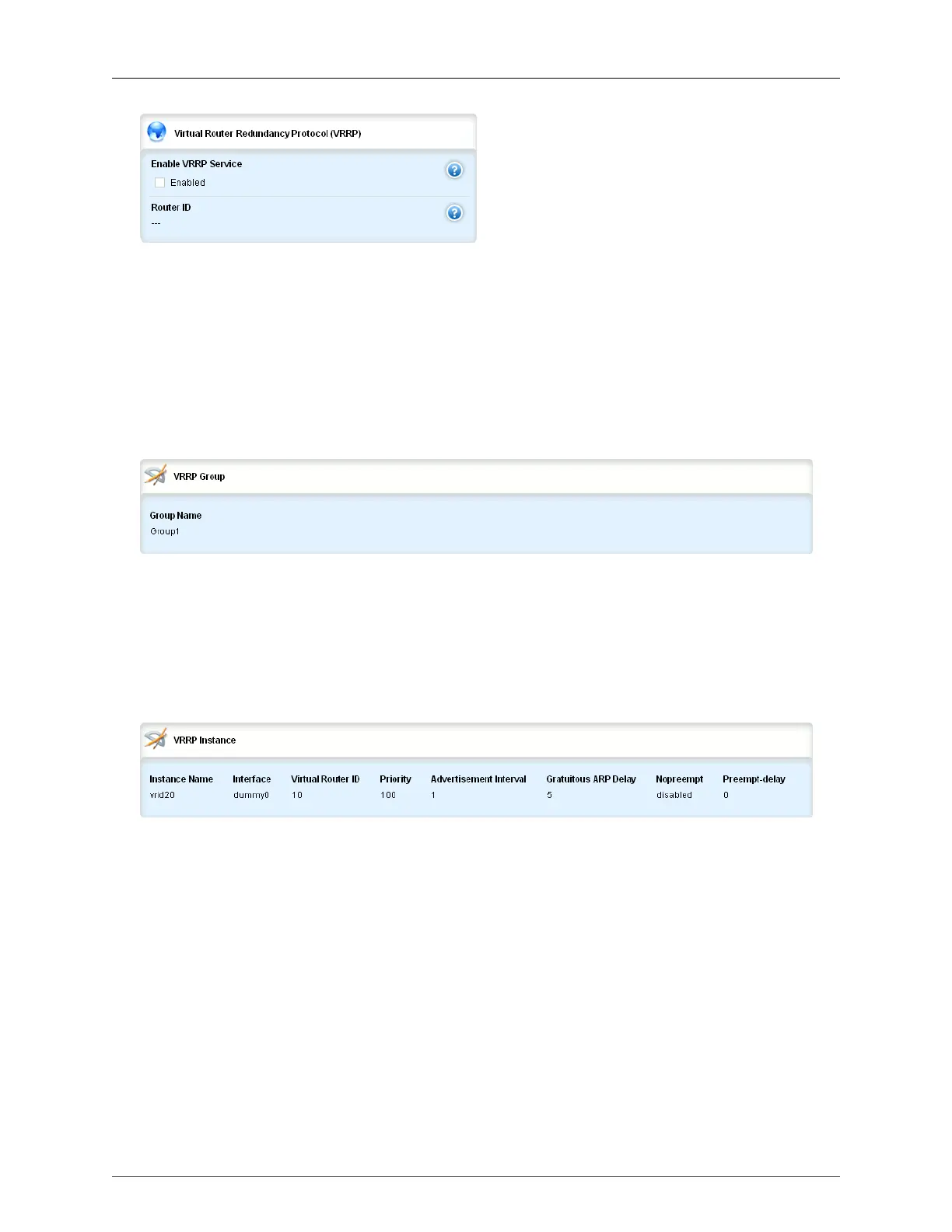

Figure 40.4. Virtual Router Redundancy Protocol (VRRP) Form
The Virtual Router Redundancy Protocol (VRRP) form appears on the same screen as the VRRP menu.
In the Virtual Router Redundancy Protocol (VRRP) form, enable or disable the VRRP service.
Enable VRRP Service
Enables VRRP Service.
Router ID
Synopsis: string
The router ID for VRRP logs.
Figure 40.5. VRRP Group Table
The VRRP Group table displays configured VRRP groups. To display this table, navigate to services/
vrrp/group.
Group Name
Synopsis: string
The group name.
Figure 40.6. VRRP Instance Table
To display this table, navigate to services/vrrp/instance.

RuggedCom RuggedBackbone RX1500 Specifications

General

Power Supply	Dual redundant, hot-swappable power supplies
Switching Capacity	Up to 128 Gbps
Operating Temperature Range	-40°C to +85°C
Mounting	DIN rail or panel mount
Certifications	IEEE 1613, IEC 61850-3, EN 50155, EN 50121-4
Power Input	24/48VDC or 110/220 VAC
Enclosure	Rugged metal
Type	Modular Layer 3 switch
