RuggedCom RuggedBackbone RX1500 User Manual

1. The ROX™ Web Interface
ROX™ v2.2 User Guide 34 RuggedBackbone™ RX1500

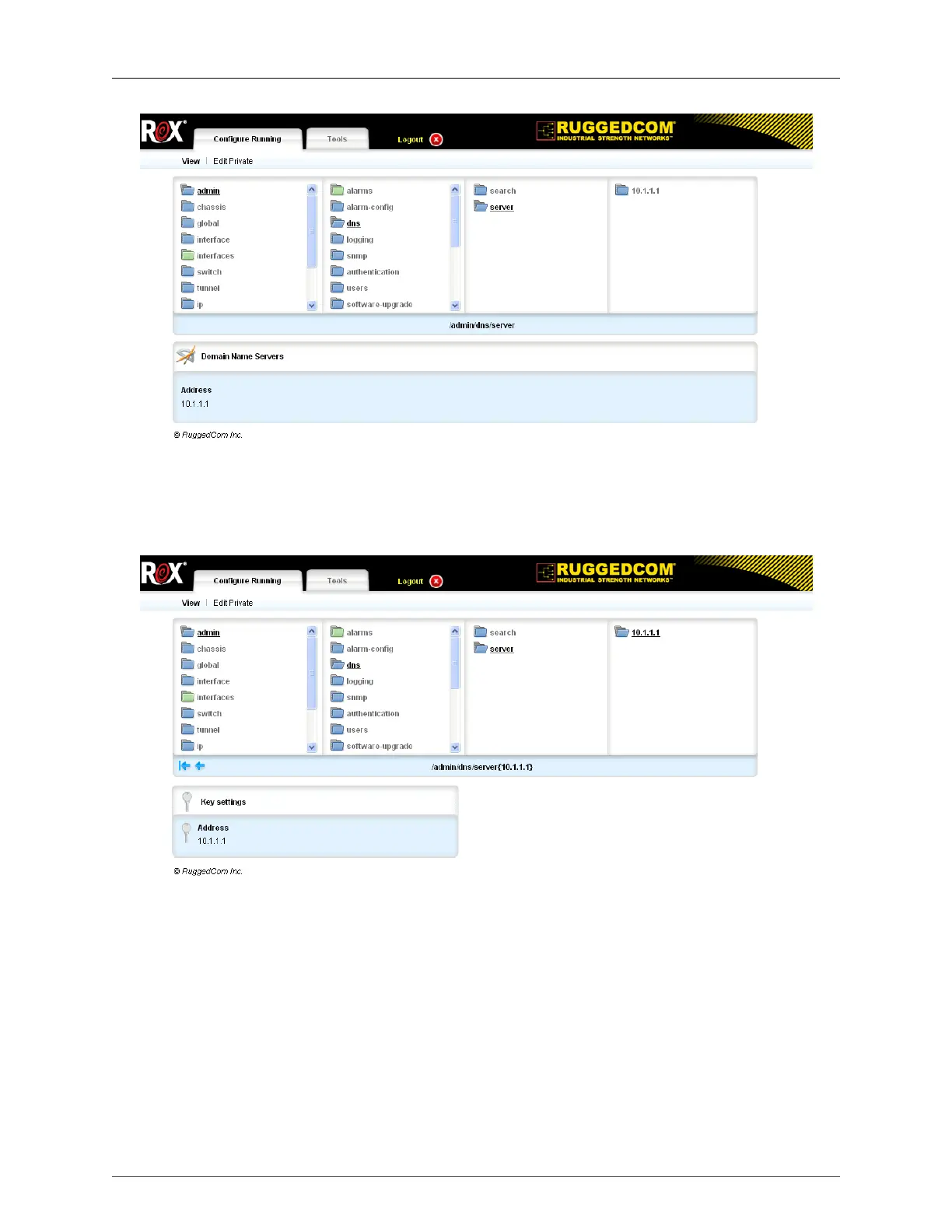

Figure 1.6. Key Information in a Table
The information entered in the key settings form will now appear in the table. Note that the table appears
on the server screen, while the key settings form appears on the address screen, which is a submenu
linked to the server screen (see below).
Figure 1.7. Example of Key Settings 1

RuggedCom RuggedBackbone RX1500 Specifications

General

Power Supply	Dual redundant, hot-swappable power supplies
Switching Capacity	Up to 128 Gbps
Operating Temperature Range	-40°C to +85°C
Mounting	DIN rail or panel mount
Certifications	IEEE 1613, IEC 61850-3, EN 50155, EN 50121-4
Power Input	24/48VDC or 110/220 VAC
Enclosure	Rugged metal
Type	Modular Layer 3 switch
