25. Multicast Filtering
ROX™ v2.2 User Guide 282 RuggedBackbone™ RX1500
Port
Synopsis: integer
The selected ports on the module installed in the indicated slot.
25.3.2. Configuring Static Multicast Groups

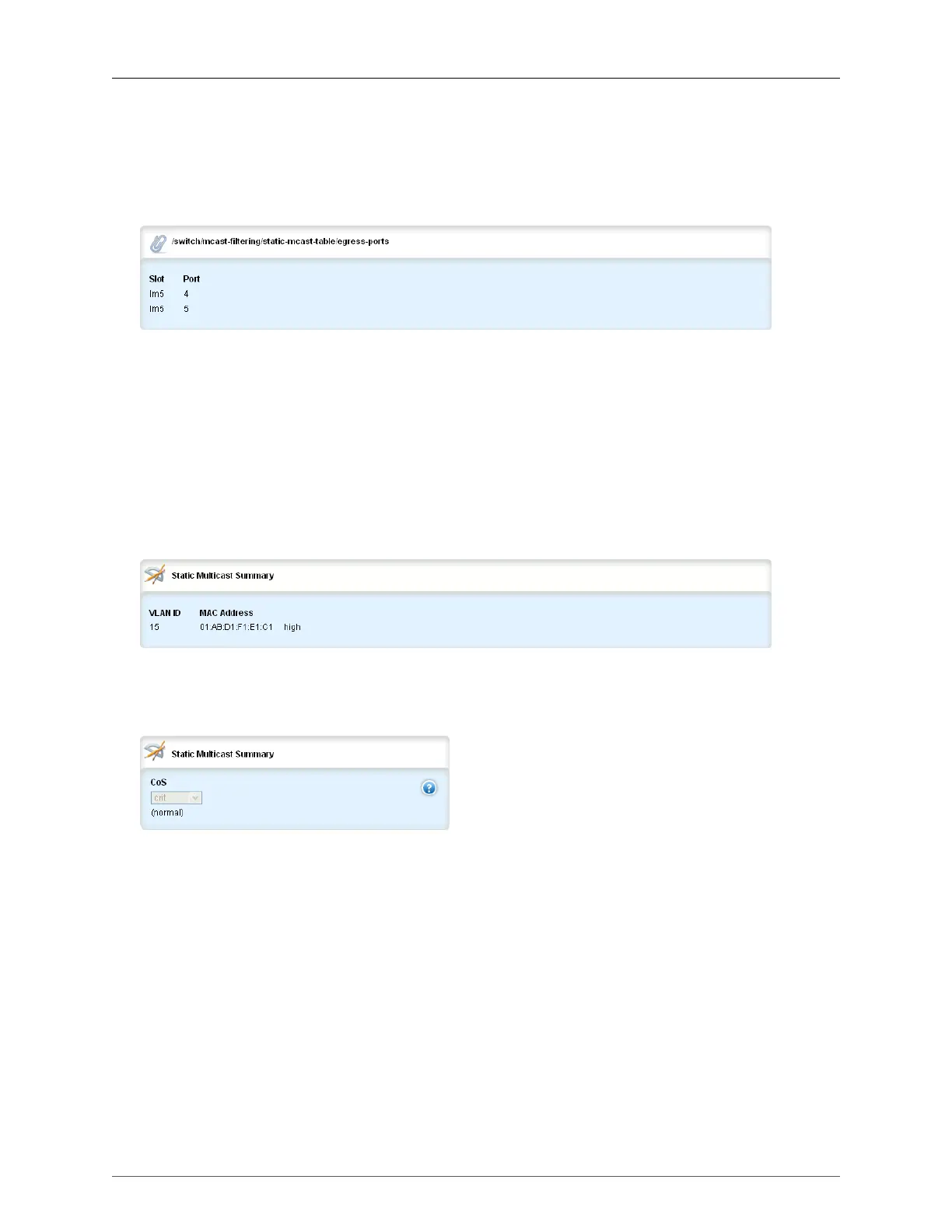

Figure 25.7. Egress Ports table
If data is configured, display the Egress Ports table by navigating to switch/mcast-filtering/static-mcast-
table and then clicking on one of the linked submenus.
Slot
Synopsis: string - one of the following keywords { lm6, lm5, lm4, lm3, lm2, lm1, sm }
The name of the module location provided on the silkscreen across the top of the device.
Port
Synopsis: integer
The selected ports on the module installed in the indicated slot.
Figure 25.8. Static Multicast Summary table
If data is configured, the path to the Static Multicast Summary table will be switch/mcast-filtering/static-
mcast-table.
Figure 25.9. Static Multicast Summary form
If data is configured, the path to the Static Multicast Summary form will be switch/mcast-filtering/static-
mcast-table and then clicking on one of the linked submenus that follow.
VLAN ID
Synopsis: integer
The VLAN Identifier of the VLAN upon which the multicast group operates.
MAC Address
Synopsis: Multicast Ethernet MAC address in colon-separated hexadecimal notation
The Multicast group MAC address in the form 01:xx:xx:xx:xx:xx.
CoS
Synopsis: string - one of the following keywords { crit, high, medium, normal }
Default: normal
