RuggedCom RuggedBackbone RX1500 User Manual

2. System Administration
ROX™ v2.2 User Guide 46 RuggedBackbone™ RX1500

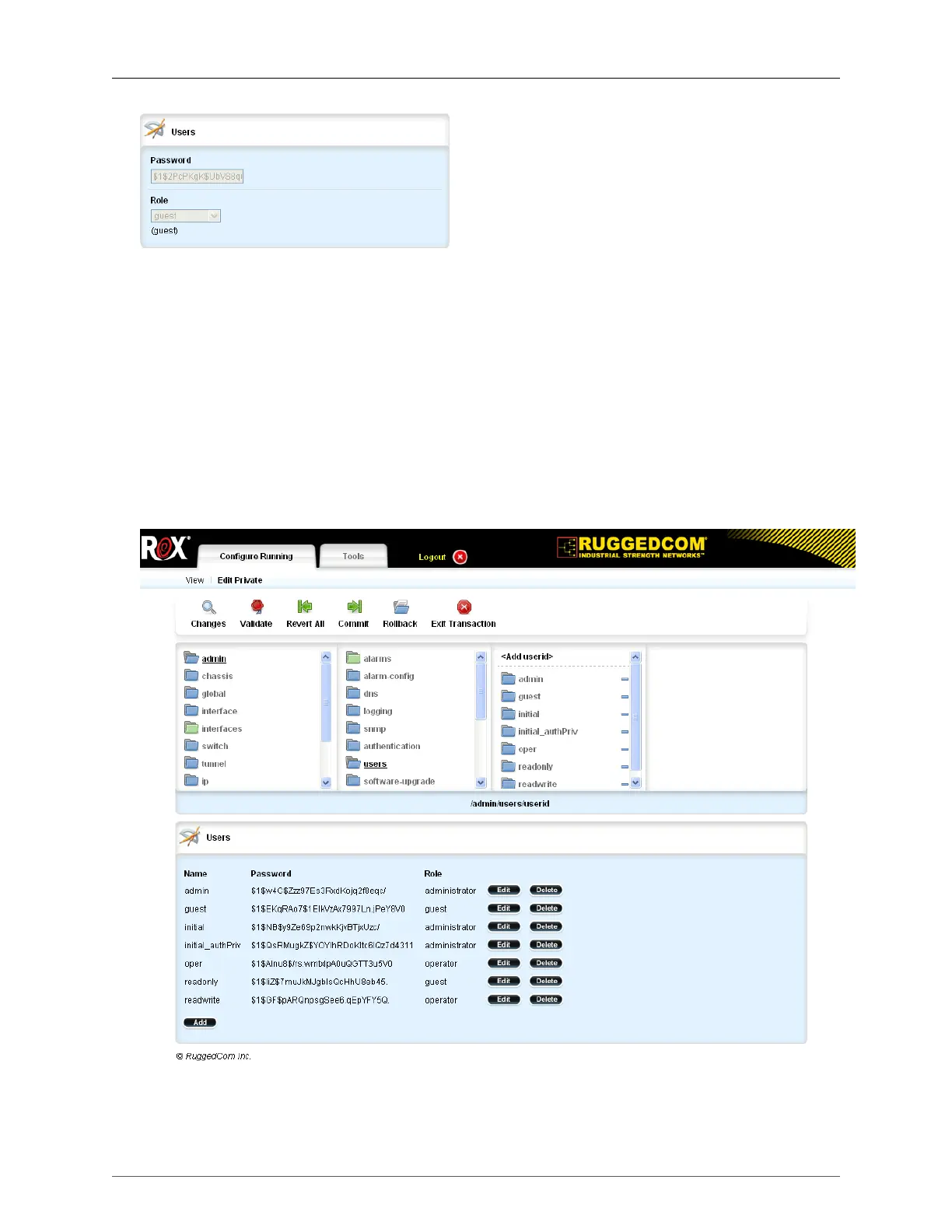

Figure 2.22. Users form
name
Synopsis: string
User Name
password
Synopsis: A string
User Password
role
Synopsis: string - one of the following keywords { guest, operator, administrator }
Default: guest
User Role
Figure 2.23. Users Screen in Edit Private View
Passwords can be managed, added and deleted while in the Edit Private view.

RuggedCom RuggedBackbone RX1500 Specifications

General

Power Supply	Dual redundant, hot-swappable power supplies
Switching Capacity	Up to 128 Gbps
Operating Temperature Range	-40°C to +85°C
Mounting	DIN rail or panel mount
Certifications	IEEE 1613, IEC 61850-3, EN 50155, EN 50121-4
Power Input	24/48VDC or 110/220 VAC
Enclosure	Rugged metal
Type	Modular Layer 3 switch
