2. System Administration
ROX™ v2.2 User Guide 62 RuggedBackbone™ RX1500

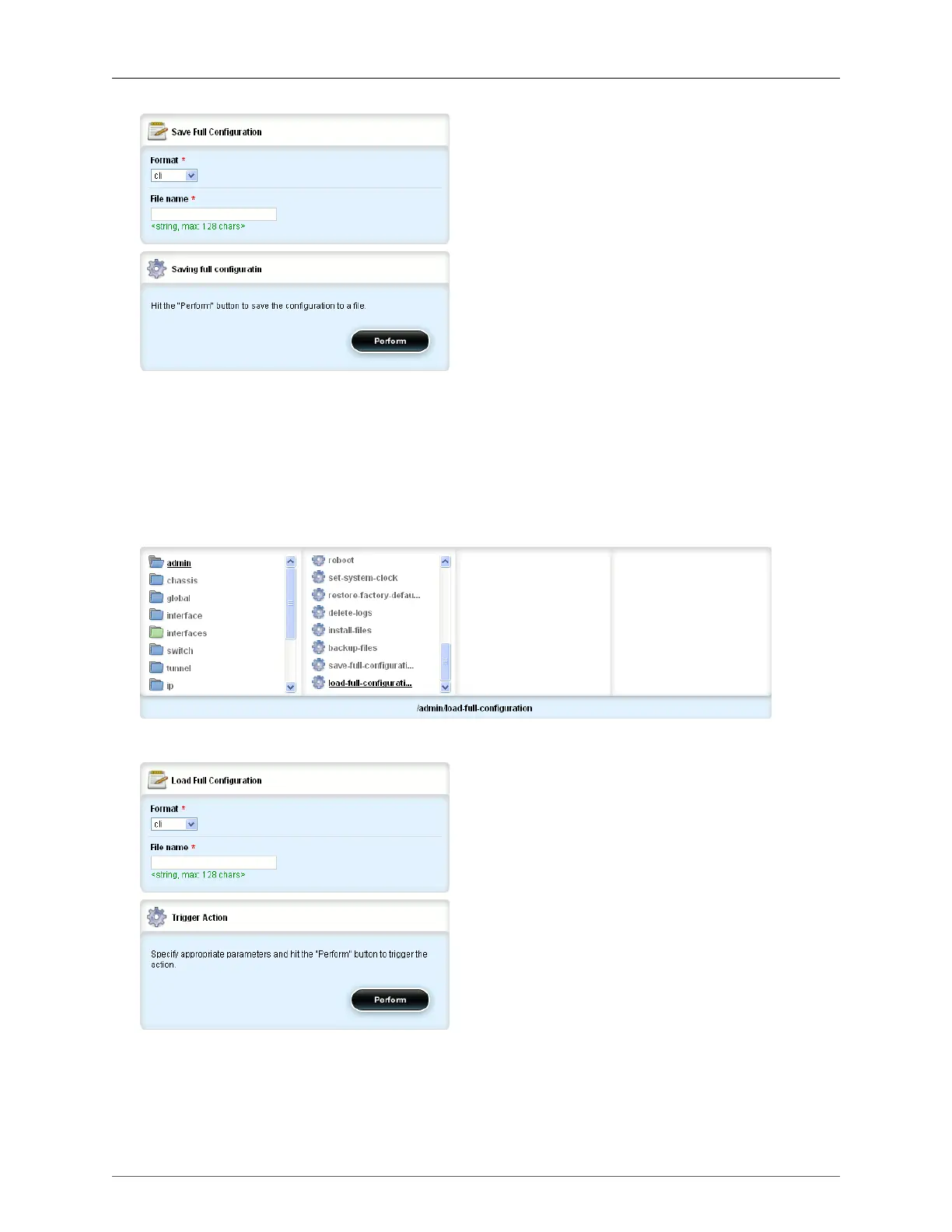

Figure 2.46. Save Full Configuration forms
To save full configurations to a file, select the format and enter the parameters in the Save Full
Configuration form, then click the Perform button in the Saving Full Configuration form.
2.12. Loading Full Configurations
Load full configurations to a file using the forms below. These forms are accessible at admin/load-full-
configuration.
Figure 2.47. Load-full-configuration menu
Figure 2.48. Load Full Configuration forms
To load full configurations to a file, select the format and enter the parameters in the Load Full
Configuration form, then click the Perform button in the Trigger Action form.
