RuggedCom RuggedBackbone RX1500 User Manual

38. Firewall
ROX™ v2.2 User Guide 455 RuggedBackbone™ RX1500
Default: all
The protocol to match for this rule.
Source Port
Synopsis: string
Synopsis: string - one of the following keywords { none, Related, Any }
Default: none
(Optional) The tcp/udp port the connection originated from.
Destination Port
Synopsis: string
Synopsis: string - one of the following keywords { none, Related, Any }
Default: none
(Optional) The tcp/udp port the connection is destined for.
Original Destination
Synopsis: string
Synopsis: string - the keyword { None }
Default: none
(Optional) The destination IP address in the connection request as it was received by the firewall.
description
Synopsis: string
(Optional) The description string for this rule

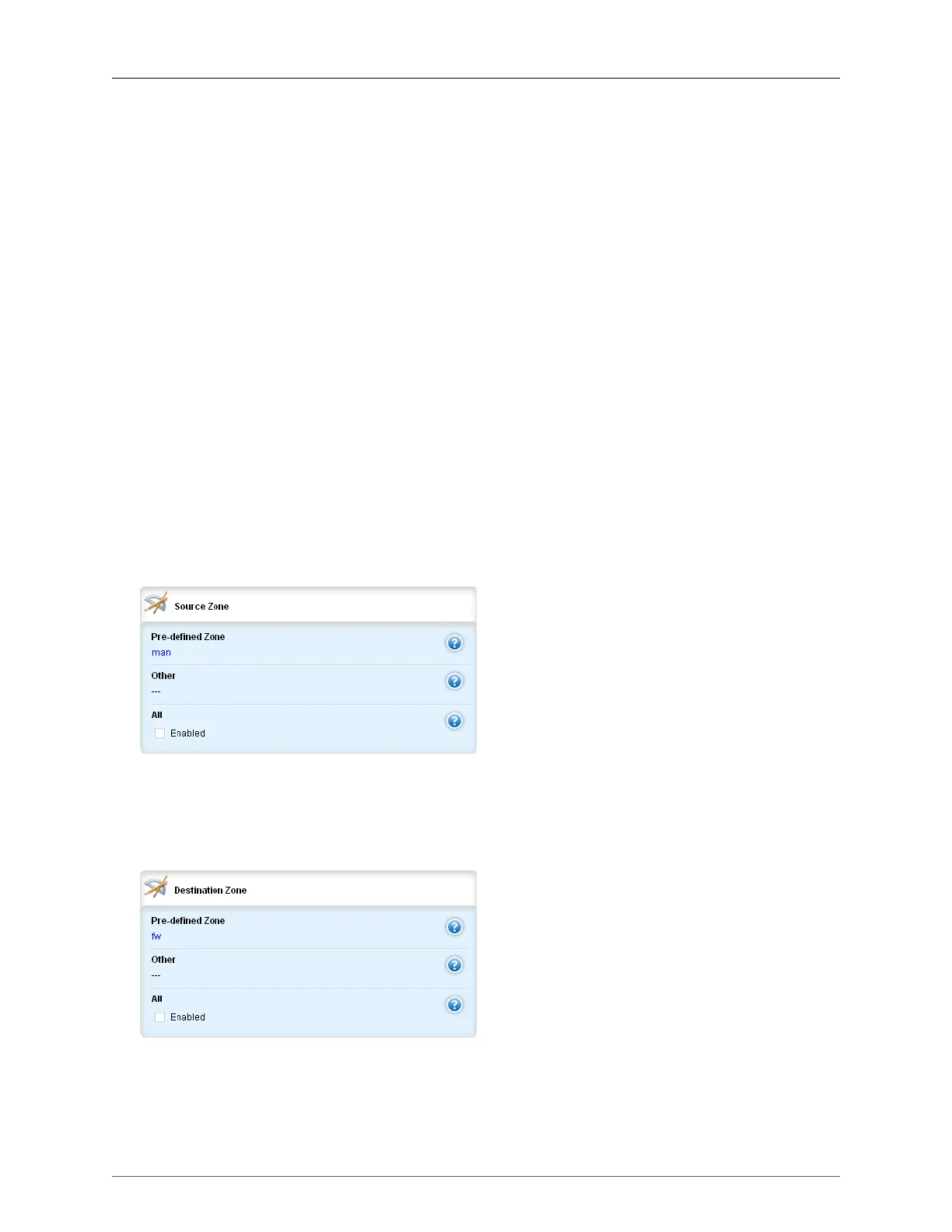

Figure 38.26. Source Zone form
Source Zone Hosts
Synopsis: string
(Optional) Add comma-separated host IPs to a predefined source-zone
Figure 38.27. Destination Zone form
destination-zone
synopsis: string

RuggedCom RuggedBackbone RX1500 Specifications

General

Power Supply	Dual redundant, hot-swappable power supplies
Switching Capacity	Up to 128 Gbps
Operating Temperature Range	-40°C to +85°C
Mounting	DIN rail or panel mount
Certifications	IEEE 1613, IEC 61850-3, EN 50155, EN 50121-4
Power Input	24/48VDC or 110/220 VAC
Enclosure	Rugged metal
Type	Modular Layer 3 switch
