RuggedCom RuggedBackbone RX1500 User Manual

Appendix A. Upgrading Software
ROX™ v2.2 User Guide 493 RuggedBackbone™ RX1500

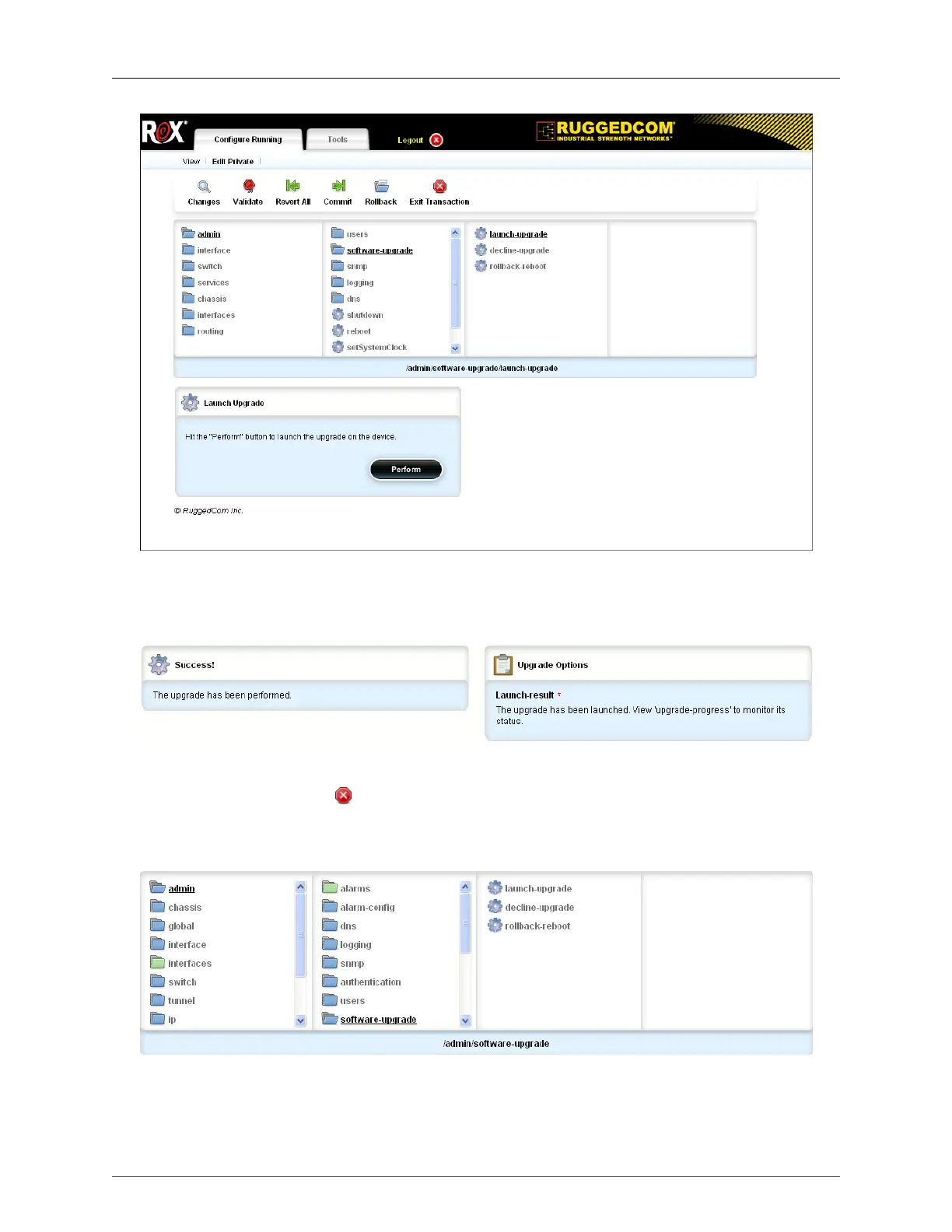

Figure A.5. Launch Upgrade
The Success! and Upgrade Options messages shown below indicate that the upgrade has been
launched.
Figure A.6. Upgrade Launched Dialogs
Click the Exit Transaction ( ) button at the top of the screen to return to the View mode.
A.3. Monitoring The Software Upgrade
Figure A.7. Software-Upgrade Menu

RuggedCom RuggedBackbone RX1500 Specifications

General

Power Supply	Dual redundant, hot-swappable power supplies
Switching Capacity	Up to 128 Gbps
Operating Temperature Range	-40°C to +85°C
Mounting	DIN rail or panel mount
Certifications	IEEE 1613, IEC 61850-3, EN 50155, EN 50121-4
Power Input	24/48VDC or 110/220 VAC
Enclosure	Rugged metal
Type	Modular Layer 3 switch
