23. WAN
ROX™ v2.2 User Guide 251 RuggedBackbone™ RX1500

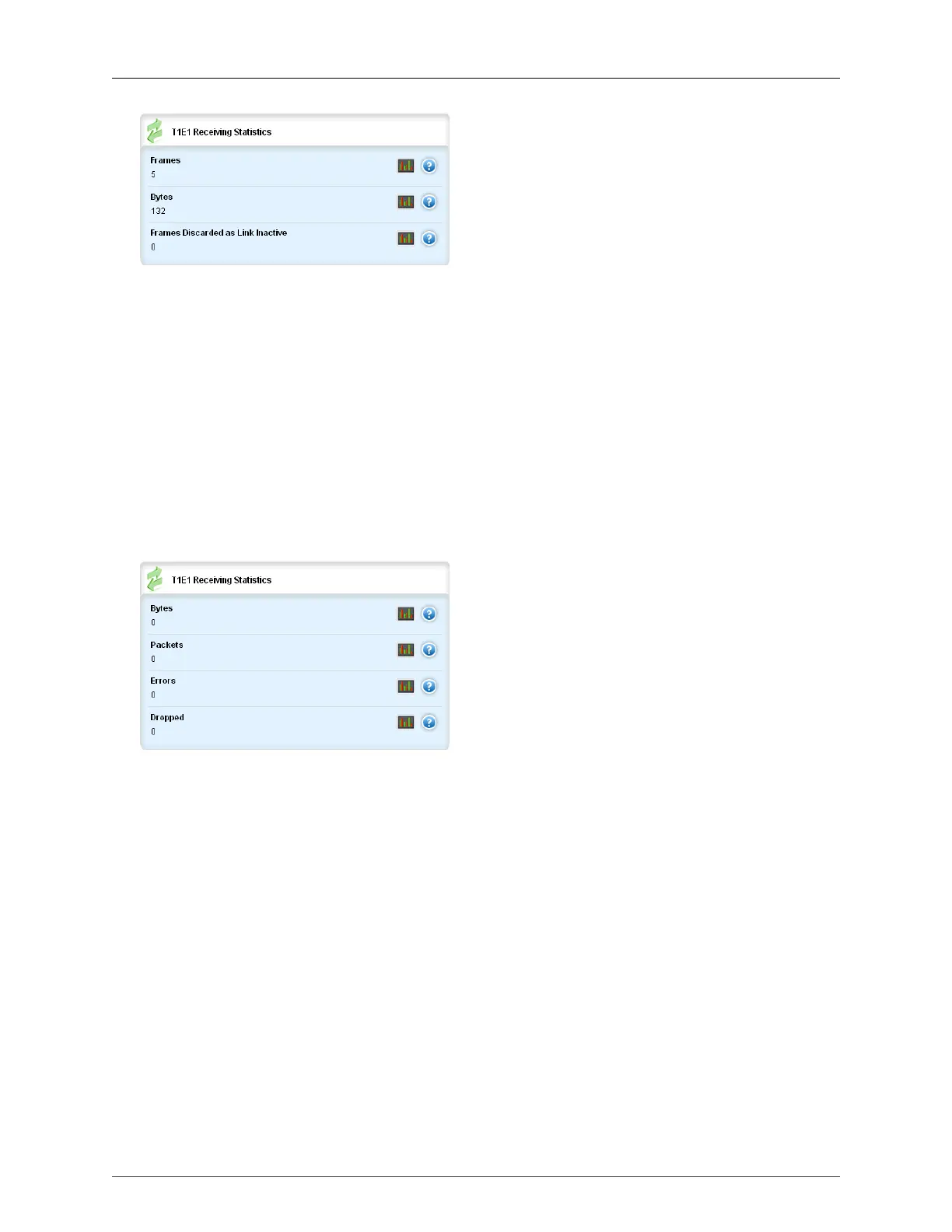

Figure 23.22. T1E1 Receiving Statistics form
The path to this form is interfaces/wan/t1e1/{line module}/receive-stats.
Frames
Synopsis: unsigned integer
The number of frames received.
Bytes
Synopsis: unsigned integer
The number of bytes received.
Frames Discarded as Link Inactive
Synopsis: unsigned integer
Received frames that were discarded (link inactive).
Figure 23.23. T1E1 Receiving Statistics Form 2
The path to this form is interfaces/wan/t1e1/{line module}/receive.
Bytes
Synopsis: unsigned long integer
Number of bytes received.
Packets
Synopsis: unsigned long integer
Number of packets received.
Errors
Synopsis: unsigned integer
Number of error packets received.
Dropped
Synopsis: unsigned integer
Number of packets dropped.

RuggedCom RuggedBackbone RX1500 Specifications

General

Power Supply	Dual redundant, hot-swappable power supplies
Switching Capacity	Up to 128 Gbps
Operating Temperature Range	-40°C to +85°C
Mounting	DIN rail or panel mount
Certifications	IEEE 1613, IEC 61850-3, EN 50155, EN 50121-4
Power Input	24/48VDC or 110/220 VAC
Enclosure	Rugged metal
Type	Modular Layer 3 switch
