RuggedCom RuggedBackbone RX1500 User Manual

19. Virtual Switch Bridging
ROX™ v2.2 User Guide 189 RuggedBackbone™ RX1500

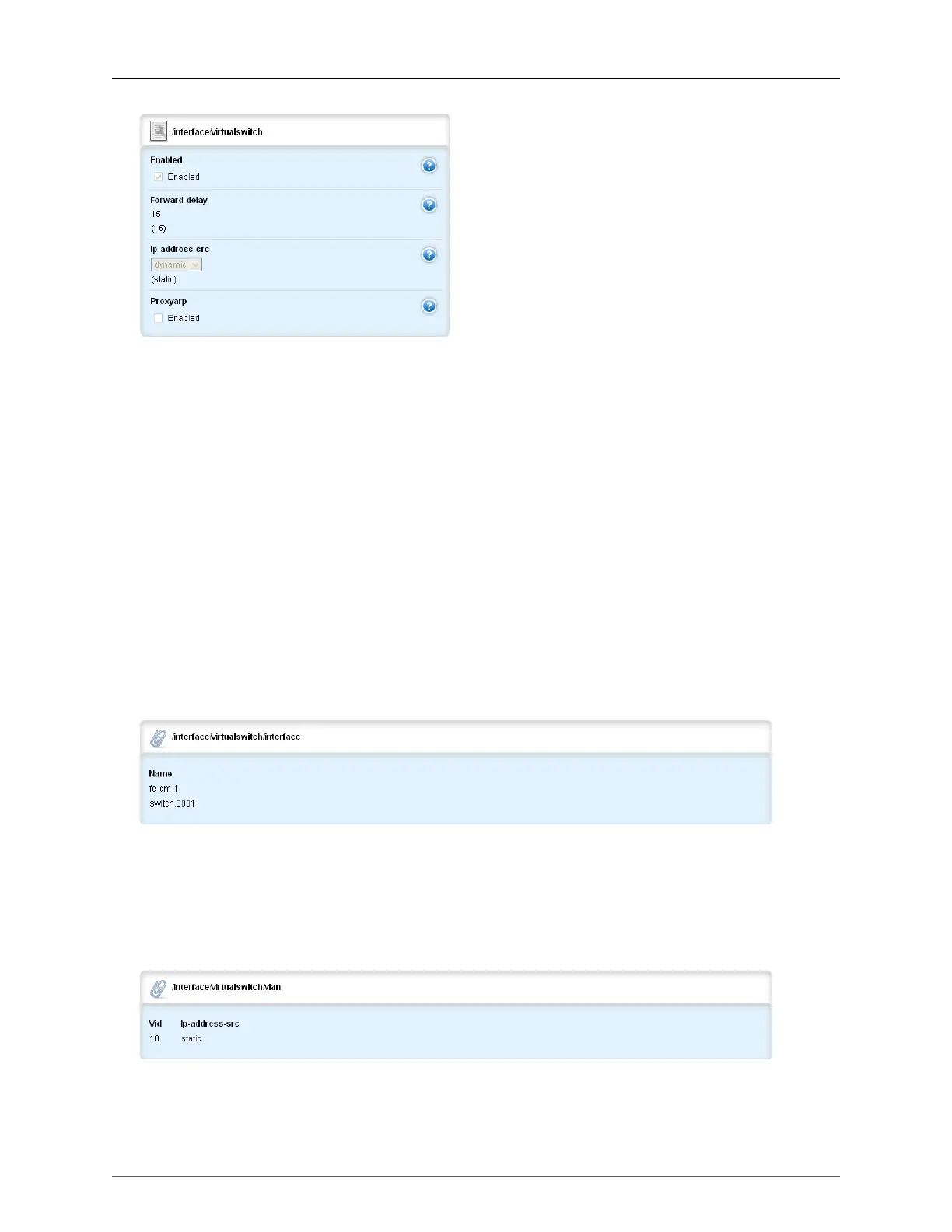

Figure 19.5. Virtualswitch form
To display this form, navigate to interface/virtualswitch/{number}.
Forward Delay
Synopsis: unsigned byte
Default: 15
Delay (in seconds) of the listening and learning state before goes to forwarding state.
Alias
Synopsis: A string
The SNMP alias name of the interface
IP Address Source
Synopsis: string - one of the following keywords { dynamic, static }
Default: static
Whether the IP address is static or dynamically assigned via DHCP or BOOTP.
ProxyARP
Enables/Disables whether the port will respond to ARP requests for hosts other than itself
Figure 19.6. Interface table
To display this table, navigate to interface/virtualswitch/{number}/interface.
Interface Name
Synopsis: A string
Interface name.
Figure 19.7. VLAN table
To display this table, navigate to interface/virtualswitch/{number}/vlan.

RuggedCom RuggedBackbone RX1500 Specifications

General

Power Supply	Dual redundant, hot-swappable power supplies
Switching Capacity	Up to 128 Gbps
Operating Temperature Range	-40°C to +85°C
Mounting	DIN rail or panel mount
Certifications	IEEE 1613, IEC 61850-3, EN 50155, EN 50121-4
Power Input	24/48VDC or 110/220 VAC
Enclosure	Rugged metal
Type	Modular Layer 3 switch
