12. Chassis Management
ROX™ v2.2 User Guide 131 RuggedBackbone™ RX1500
The slot name, as marked on the silkscreen across the top of the chassis.
Detected Module
Synopsis: A string
The installed module's type specifier.
State
Synopsis: string - one of the following keywords { disconnected, failed, operating, resetting,
disabled, empty, unknown }
The current state of the installed module.
Status
Synopsis: string
The runtime status of the installed module.
Uptime
Synopsis: string
The total time elapsed since the start-up of the installed module.
Boot Date
Synopsis: date specification
The date on which the installed module was started up.
Boot Time
Synopsis: time specification
The time at which the installed module was started up.

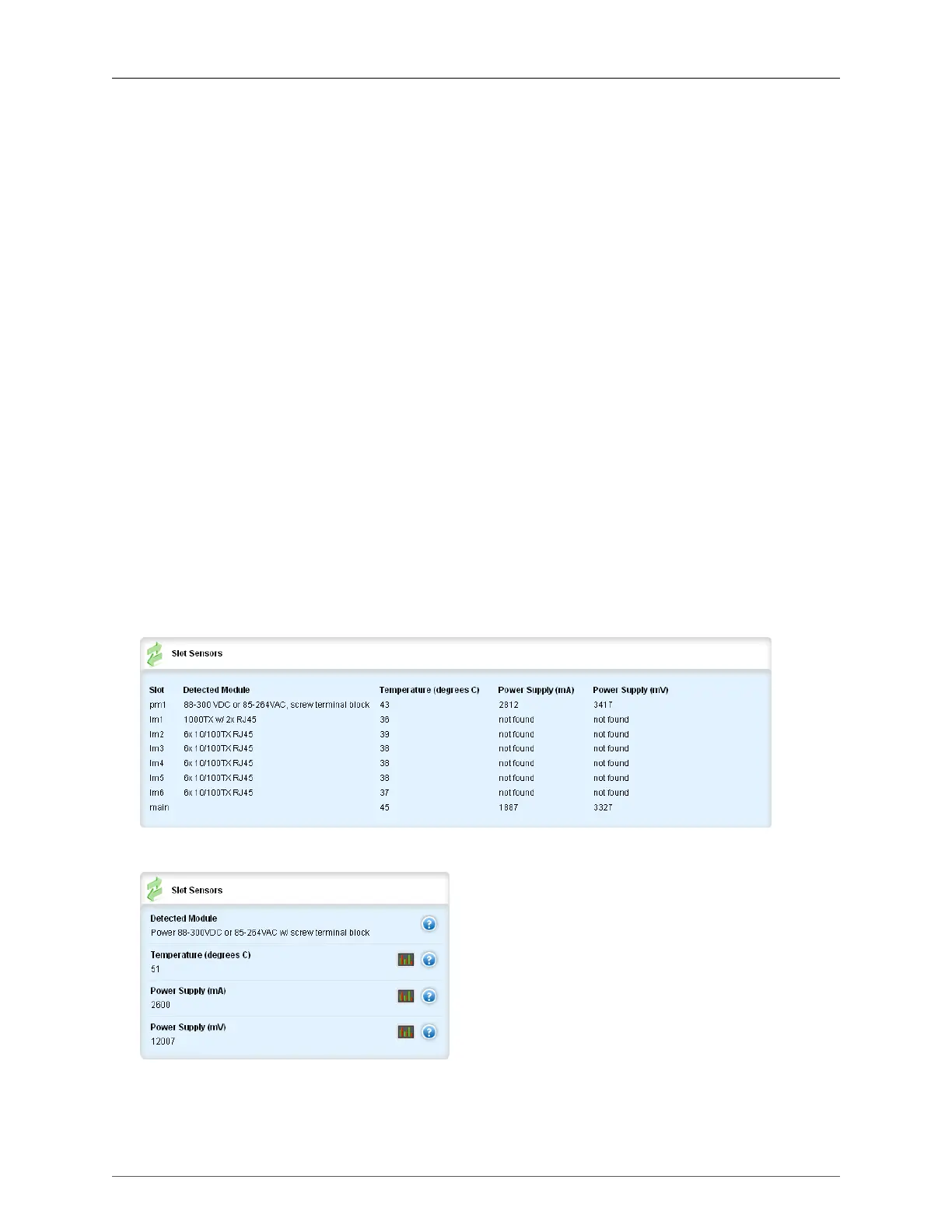

12.6. Slot Sensors
Figure 12.14. Slot Sensors table
Figure 12.15. Slot Sensors form
Slot sensors contain temperature and power supply information about the installed modules.

RuggedCom RuggedBackbone RX1500 Specifications

General

Power Supply	Dual redundant, hot-swappable power supplies
Switching Capacity	Up to 128 Gbps
Operating Temperature Range	-40°C to +85°C
Mounting	DIN rail or panel mount
Certifications	IEEE 1613, IEC 61850-3, EN 50155, EN 50121-4
Power Input	24/48VDC or 110/220 VAC
Enclosure	Rugged metal
Type	Modular Layer 3 switch
