33. Tunnelling
ROX™ v2.2 User Guide 389 RuggedBackbone™ RX1500

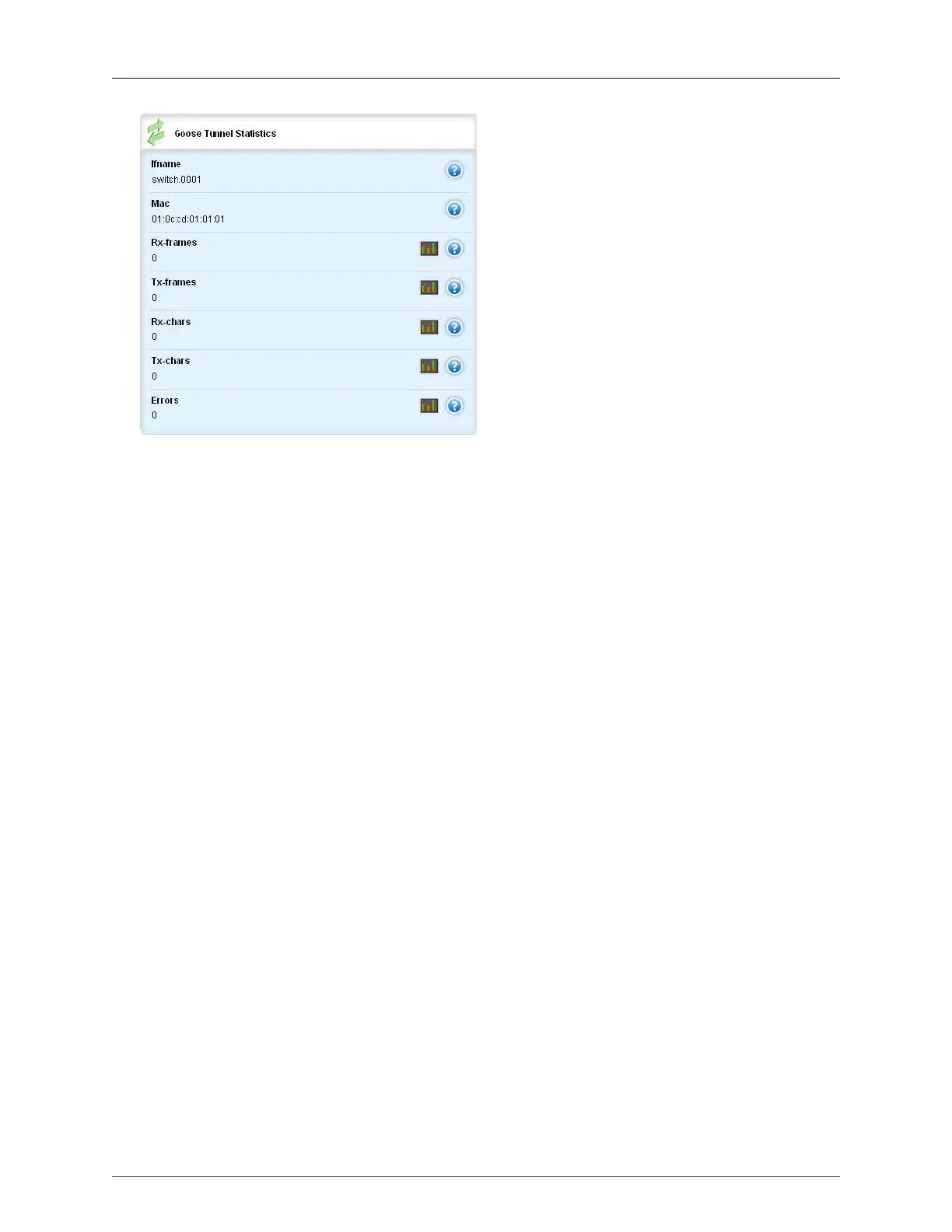

Figure 33.38. Goose Tunnel Statistics form
tunnel-name
Synopsis: A string
Goose Tunnel name
ifname
Synopsis: A string
VLAN Interface name
mac
Synopsis: Multicast Ethernet MAC address in colon-separated hexadecimal notation
Multicast Destination MAC Address of Goose message
rx-frames
Synopsis: unsigned integer
The number of frames received over the tunnel
tx-frames
Synopsis: unsigned integer
The number of frames transmitted over the tunnel
rx-chars
Synopsis: unsigned integer
The number of bytes received over the tunnel
tx-chars
Synopsis: unsigned integer
The number of bytes transmitted over the tunnel
errors
Synopsis: unsigned integer
The number of errors over the tunnel

RuggedCom RuggedBackbone RX1500 Specifications

General

Power Supply	Dual redundant, hot-swappable power supplies
Switching Capacity	Up to 128 Gbps
Operating Temperature Range	-40°C to +85°C
Mounting	DIN rail or panel mount
Certifications	IEEE 1613, IEC 61850-3, EN 50155, EN 50121-4
Power Input	24/48VDC or 110/220 VAC
Enclosure	Rugged metal
Type	Modular Layer 3 switch
