16. Ethernet Ports
ROX™ v2.2 User Guide 161 RuggedBackbone™ RX1500

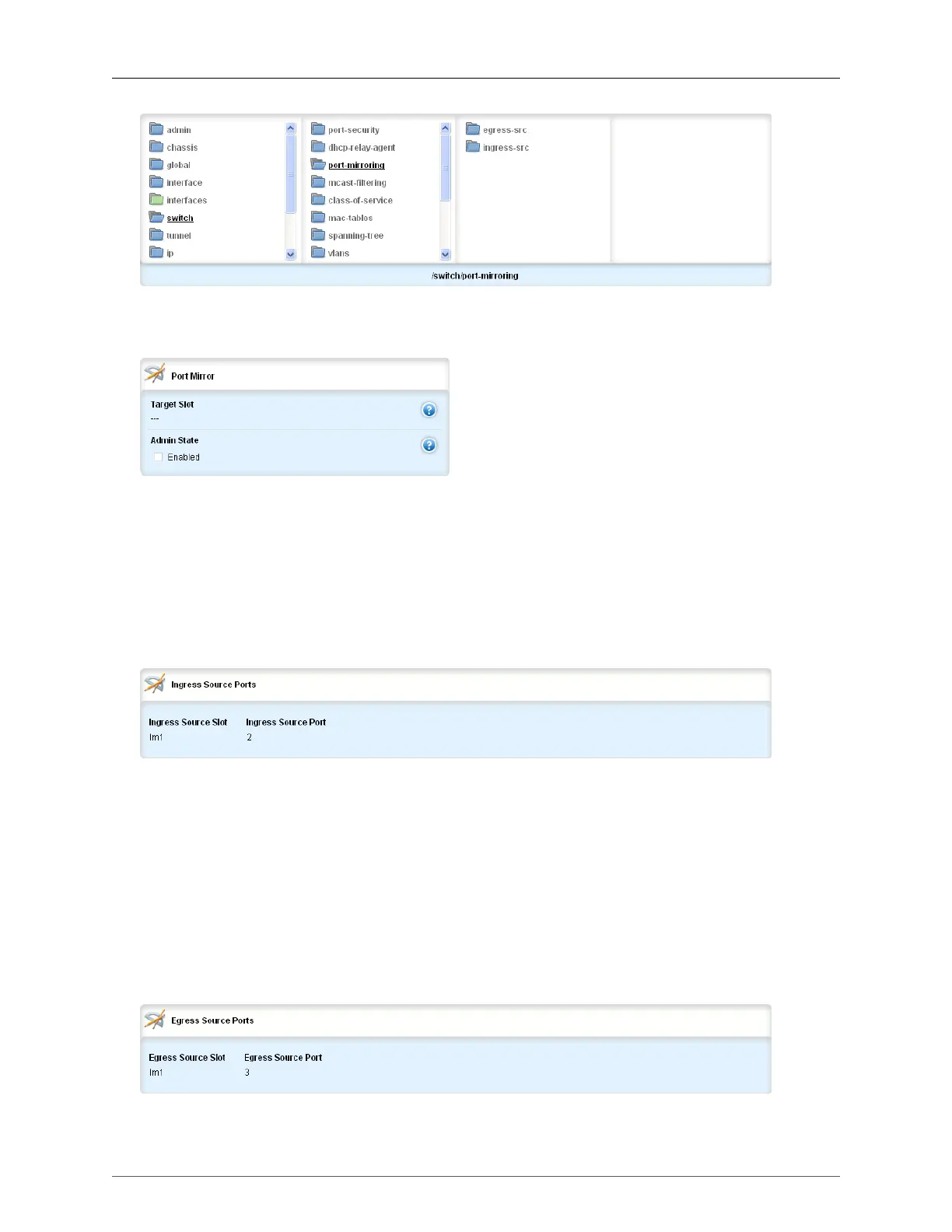

Figure 16.7. Port-Mirroring menu
To display the Port-Mirroring menu and Port Mirror form, navigate to switch/port-mirroring.
Figure 16.8. Port Mirror form
Target Slot
Synopsis: string - one of the following keywords { lm6, lm5, lm4, lm3, lm2, lm1, sm }
The slot where a monitoring device should be connected.
Target Port
Synopsis: integer
The port where a monitoring device should be connected.
Figure 16.9. Ingress Source Ports table
To display the Ingress Source Ports table, navigate to switch/port-mirroring/ingress-src.
Ingress Source Slot
Synopsis: string - one of the following keywords { lm6, lm5, lm4, lm3, lm2, lm1, sm }
The name of the module location provided on the silkscreen across the top of the device.
Ingress Source Port
Synopsis: integer
The selected ports on the module installed in the indicated slot.
To display the Egress Source Ports table, navigate to switch/port-mirroring/egress-src.
Figure 16.10. Egress Source Ports table
