RuggedCom RuggedBackbone RX1500

28. Spanning Tree
ROX™ v2.2 User Guide 317 RuggedBackbone™ RX1500

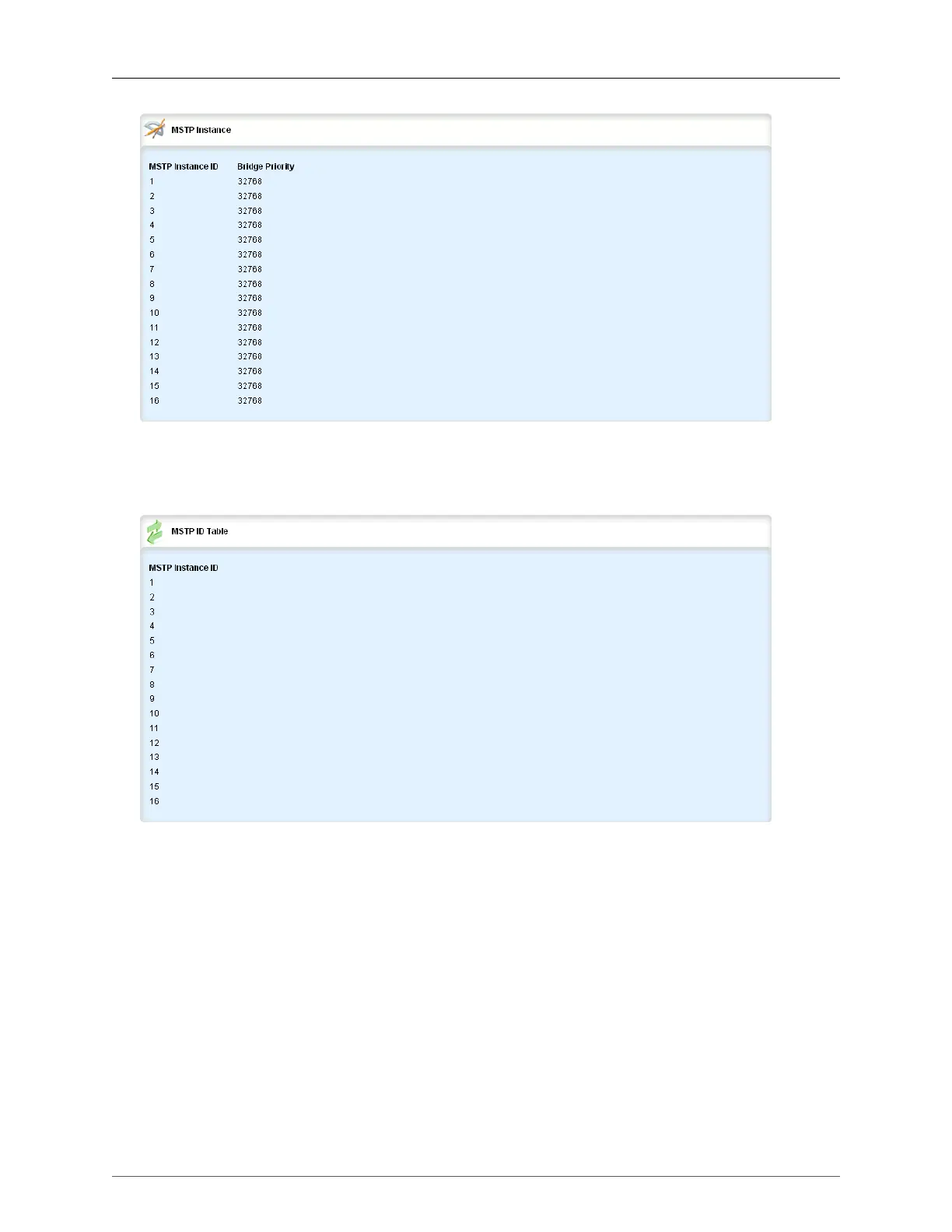

Figure 28.14. MSTP Instance table
After data has been configured, the MSTP Instance table will be displayed at switch/spanning-tree/
mstp-instance.
Figure 28.15. MSTP ID table
To display the MSTP ID table, navigate to switch/spanning-tree/port-msti-id.
MSTP Instance ID
Synopsis: integer
The MSTP Instance ID.
