17. Ethernet Statistics
ROX™ v2.2 User Guide 179 RuggedBackbone™ RX1500

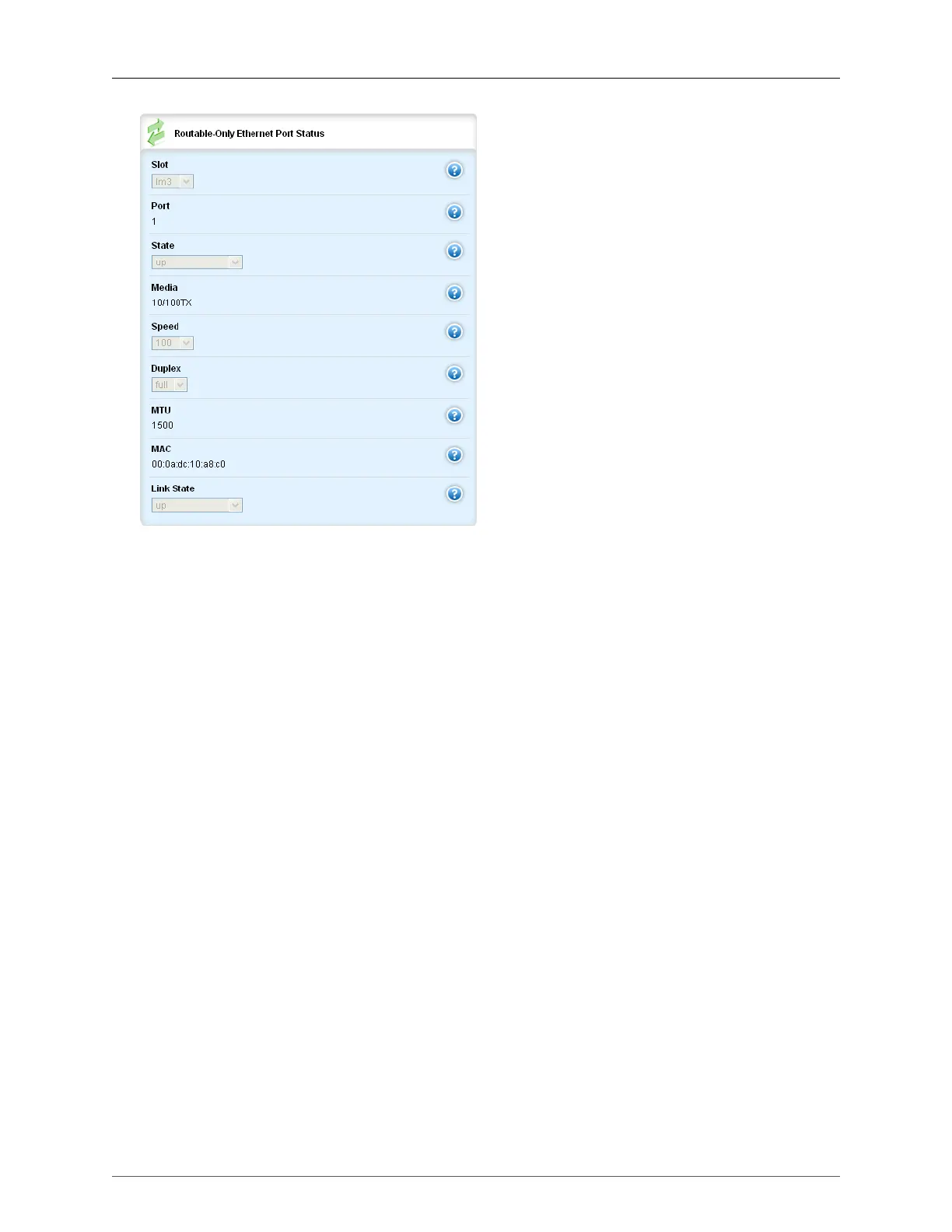

Figure 17.5. Routable-Only Ethernet Port Status Form
The Routable-Only Ethernet Port Status, Receive Statistics, and Transmit Statistics forms appear on
the same screen as the Statistics menus. The Routable Ethernet Ports form displays the ethernet port
configuration and status for a port. Ethernet statistics for the system’s IP interfaces are available on the
Receive Statistics and Transmit Statistics forms.
Name
Synopsis: A string conforming to: "[A-Za-z]{1}[-0-9A-Za-z]{0,9}.*"
Slot
Synopsis: string - the keyword { --- }
Synopsis: string - one of the following keywords { main, pm2, pm1 }
Synopsis: string - one of the following keywords { lm6, lm5, lm4, lm3, lm2, lm1, sm }
Synopsis: string - one of the following keywords { em, cm }
Synopsis: string - the keyword { trnk }
The slot of the module that contains this port.
Port
Synopsis: integer
The port number on the module.
state
Synopsis: string - one of the following keywords { lowerLayerDown, notPresent, dormant,
unknown, testing, down, up }
The port's link status.
media
Synopsis: A string
The type of port media { 100TX, 10FL, 100FX, 1000X, 1000T, 802.11g, EoVDSL, 100TX }. It
provides the user with a description of the installed media type on the port for modular products.
Please note that fiber media may be either Single Mode(SM), Multi Mode(MM), and may be Short
