39. Traffic Control
ROX™ v2.2 User Guide 474 RuggedBackbone™ RX1500

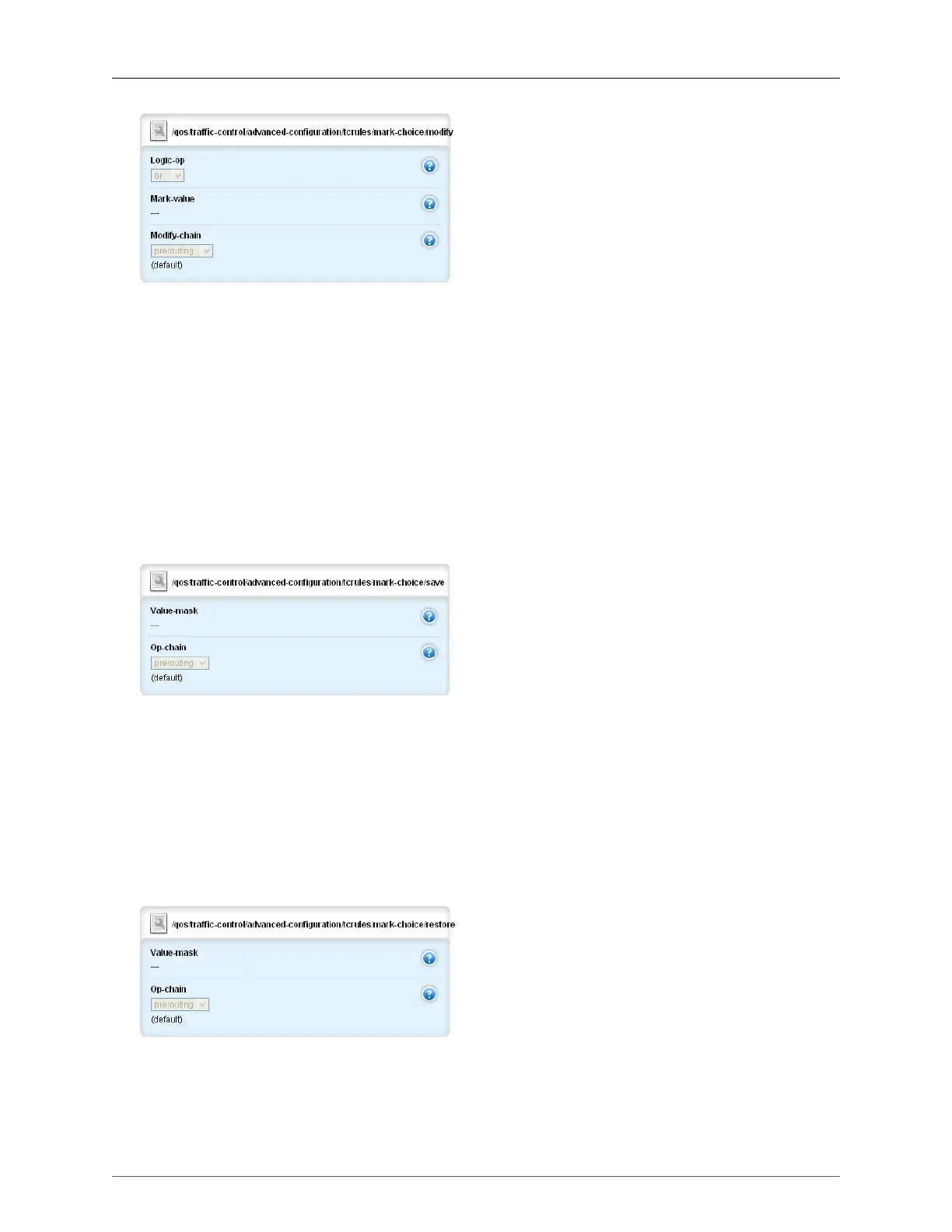

Figure 39.18. Modify form
logic-op
Synopsis: string - one of the following keywords { or, and }
Logical operation to perform on the current mark: AND/OR
mark-value
Synopsis: string
Mark to perform the operation with (decimal value)
modify-chain
Synopsis: string - one of the following keywords { prerouting, postrouting, forward }
Default: forward
Chain in which the operation will take place
Figure 39.19. Save form
value-mask
Synopsis: string
Mask to process the mark with
op-chain
Synopsis: string - one of the following keywords { prerouting, forward }
Default: forward
Chain in which the operation will take place
Figure 39.20. Restore form
value-mask
Synopsis: string
