23. WAN
ROX™ v2.2 User Guide 249 RuggedBackbone™ RX1500
The path to the Loopback Test forms is interfaces/wan/loopback. In the Loopback Test form, select the
Interface and Type and then set the Nloops and Duration parameters. To start a loopback test, click
the Perform button on the trigger action form.

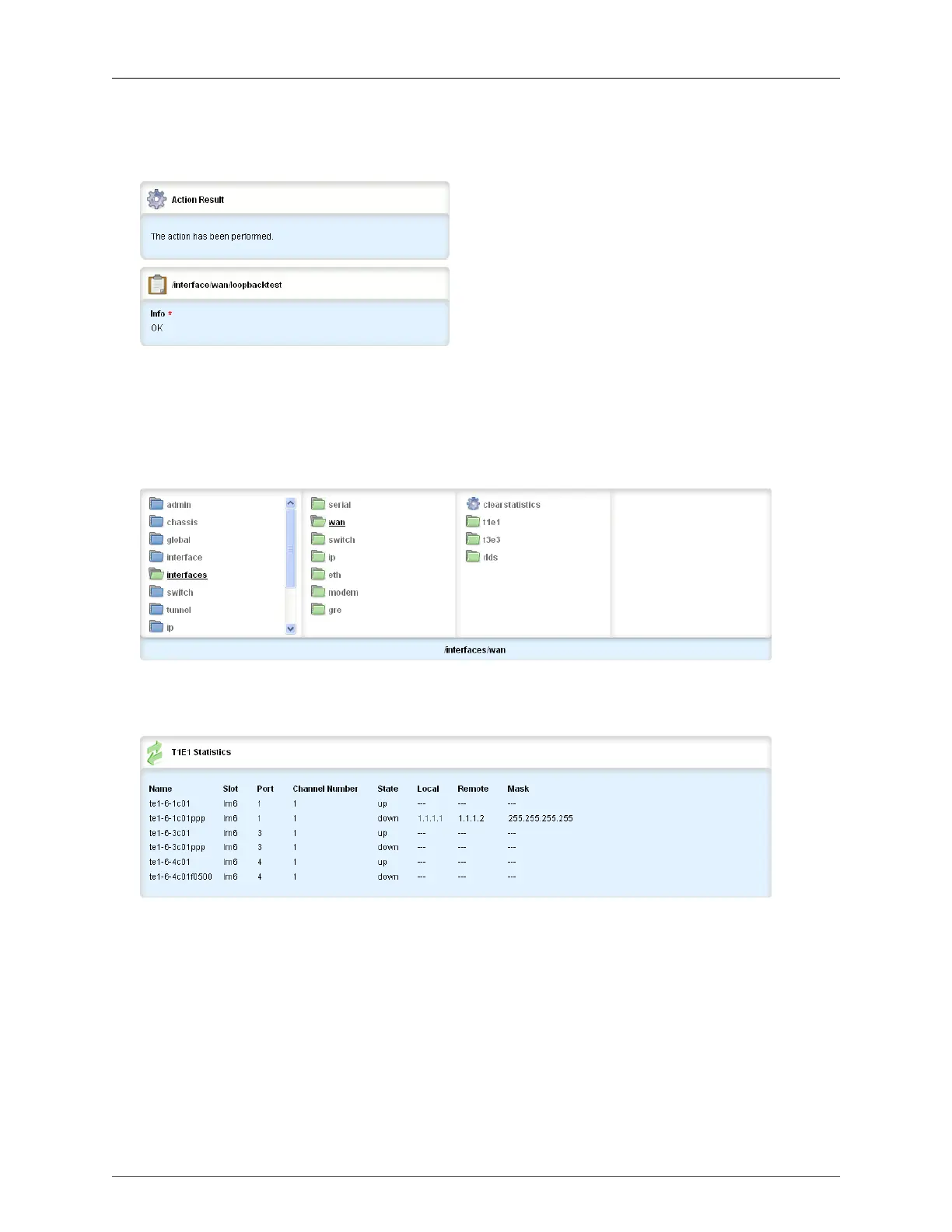

Figure 23.18. Loopbacktest Results
After launching the Loopback test, the Action Result form and the Loopbacktest form appear to confirm
that the test has been performed and whether it was successful or not.
23.3. Statistics
Figure 23.19. WAN Statistics menu
The WAN statistics are accessible via the WAN Statistics menu. The path to this menu is interfaces/wan.
Figure 23.20. T1E1 Statistics table
The path to this table is interfaces/wan/t1e1/{line module}/t1e1.
