1. The ROX™ Web Interface
ROX™ v2.2 User Guide 35 RuggedBackbone™ RX1500

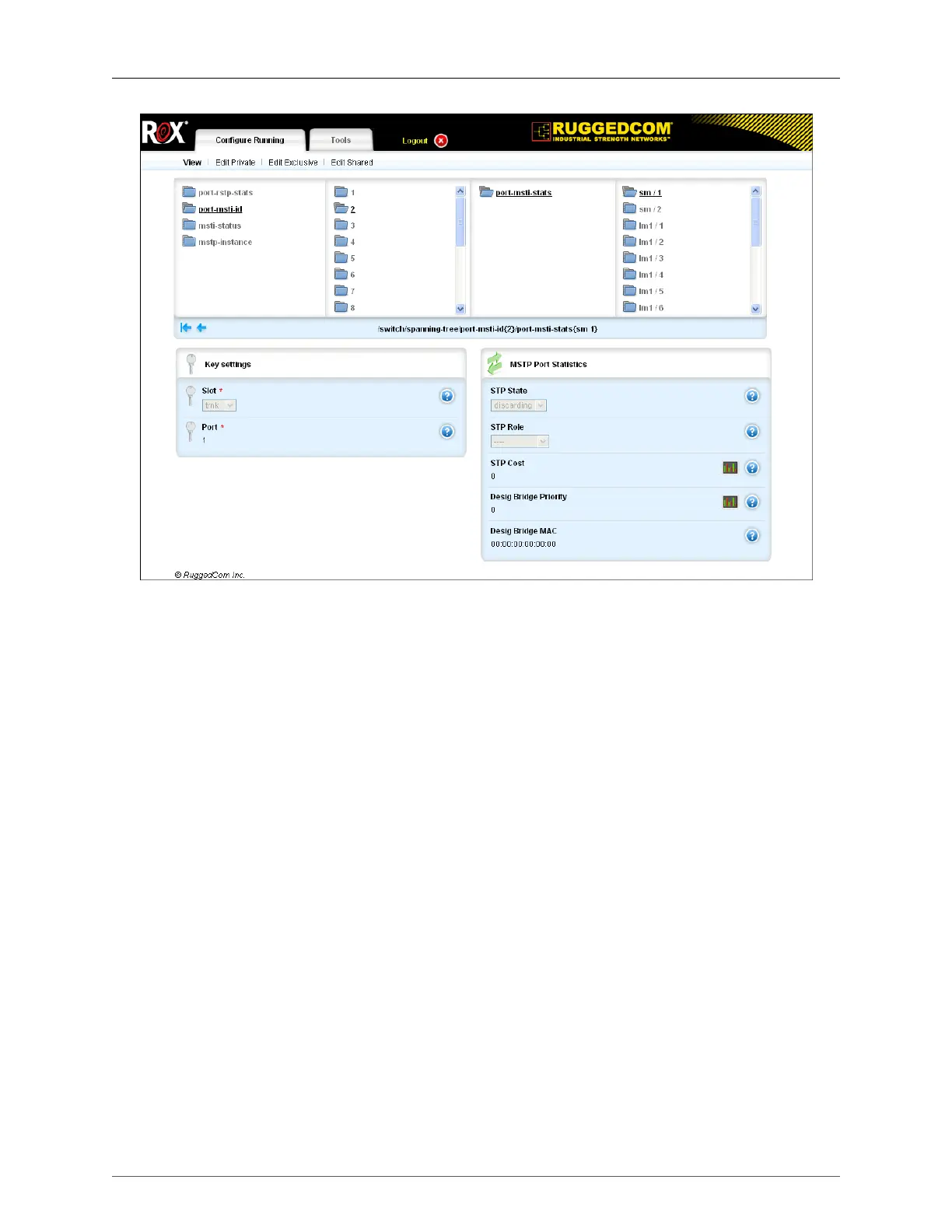

Figure 1.8. Example of Key Settings 2
The submenus that display the key settings forms appear in the far right column of the screen.
Sometimes, it will be necessary to traverse several menu screens to get to a key settings form.
1.3.2. Viewing More Information in Tables
Occasionally, a table may have more entries that are not visible in the initial view. If you encounter a
table that has a line of linked text at the top with the word "Next", and a number in parentheses ( ), you
can click on the "Next" link and access additional entries. The two figures below illustrate this situation.
In this case, there are 18 entries in the table. The first table contains 16 entries and 2 entries follow
in the next table.
