34. Dynamic Routing
ROX™ v2.2 User Guide 411 RuggedBackbone™ RX1500
The OSPF area network/prefix.
34.4.1.2. OSPF Redistribute
Redistribute from other Routing Protocols
This feature redistributes information from another routing protocol.
Redistribute Route From
Synopsis: string - one of the following keywords { bgp, rip, connected, static, kernel }
Redistributes the route type.
Metric Type
Synopsis: integer in the range [-32768 to 32767]
Default: 2
The OSPF exterior metric type for redistributed routes.
Metric
Synopsis: unsigned integer
The metric for redistributed routes.
34.4.1.3. OSPF Interfaces

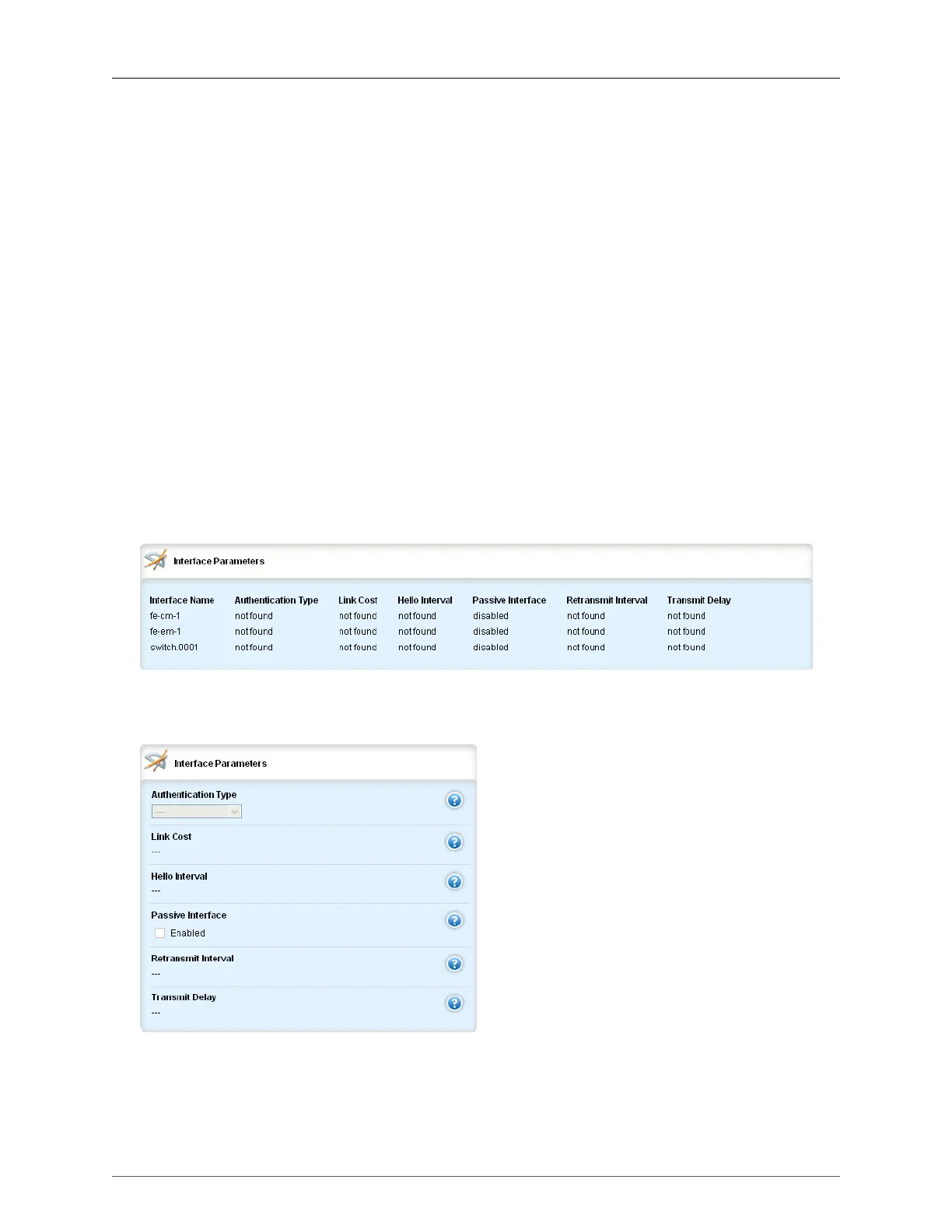

Figure 34.12. Interface Parameters Table
The path to the Interface Parameters table is routing/dynamic/ospf/interface.
Figure 34.13. Interface Parameters Form
The path to the Interfaces form and Dead Interval form is routing/dynamic/ospf/interface/{interface}.
OSPF parameters on the selected interface.

RuggedCom RuggedBackbone RX1500 Specifications

General

Power Supply	Dual redundant, hot-swappable power supplies
Switching Capacity	Up to 128 Gbps
Operating Temperature Range	-40°C to +85°C
Mounting	DIN rail or panel mount
Certifications	IEEE 1613, IEC 61850-3, EN 50155, EN 50121-4
Power Input	24/48VDC or 110/220 VAC
Enclosure	Rugged metal
Type	Modular Layer 3 switch
