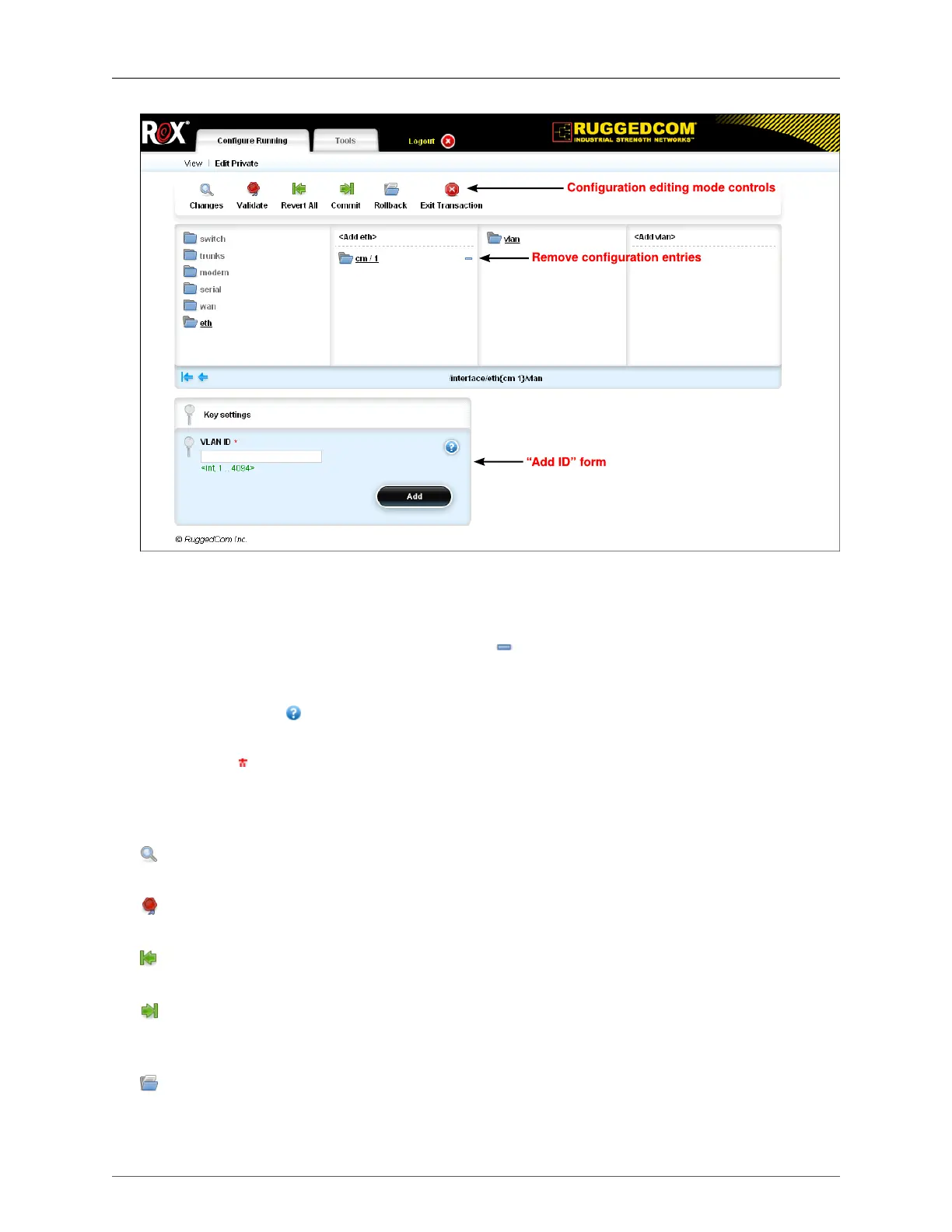

Figure 1.4. Example of Edit Private Mode
The example above depicts the process of adding a VLAN ID to an interface. The interface/eth/cm1
menu can be seen to contain:
• A configuration entry, followed by a "delete" icon, , which removes the corresponding entry.
Clicking
on
<add
vlan>
displays
the
Add ID form below the navigation window, which prompts for a VLANID. Entering a VLAN ID and clicking Add adds the selected VLAN to the currently selected interface.
Note the help button, , on the Add ID form which, when clicked, displays context-sensitive information
about the corresponding data field.
A red asterisk appears beside fields that are mandatory for configuration, when in Edit Private mode.
Note the red asterisk next to the field name (VLAN ID) in the Key settings form.
Several controls below the header and menu bar are used to affect the behaviour of the changes made
during the current configuration editing session:
Changes
Present a summary of all pending changes.
Validate
Automatically check the validity of pending changes.
Revert All
Abort all pending changes.
Commit
Commit all pending changes - save changes persistent configuration storage and to the running
system.
Rollback
Present a list of change sets made to date, with an option to revert a selected set of changes.
To Next Page
