RuggedCom RuggedBackbone RX1500 User Manual

33. Tunnelling
ROX™ v2.2 User Guide 380 RuggedBackbone™ RX1500

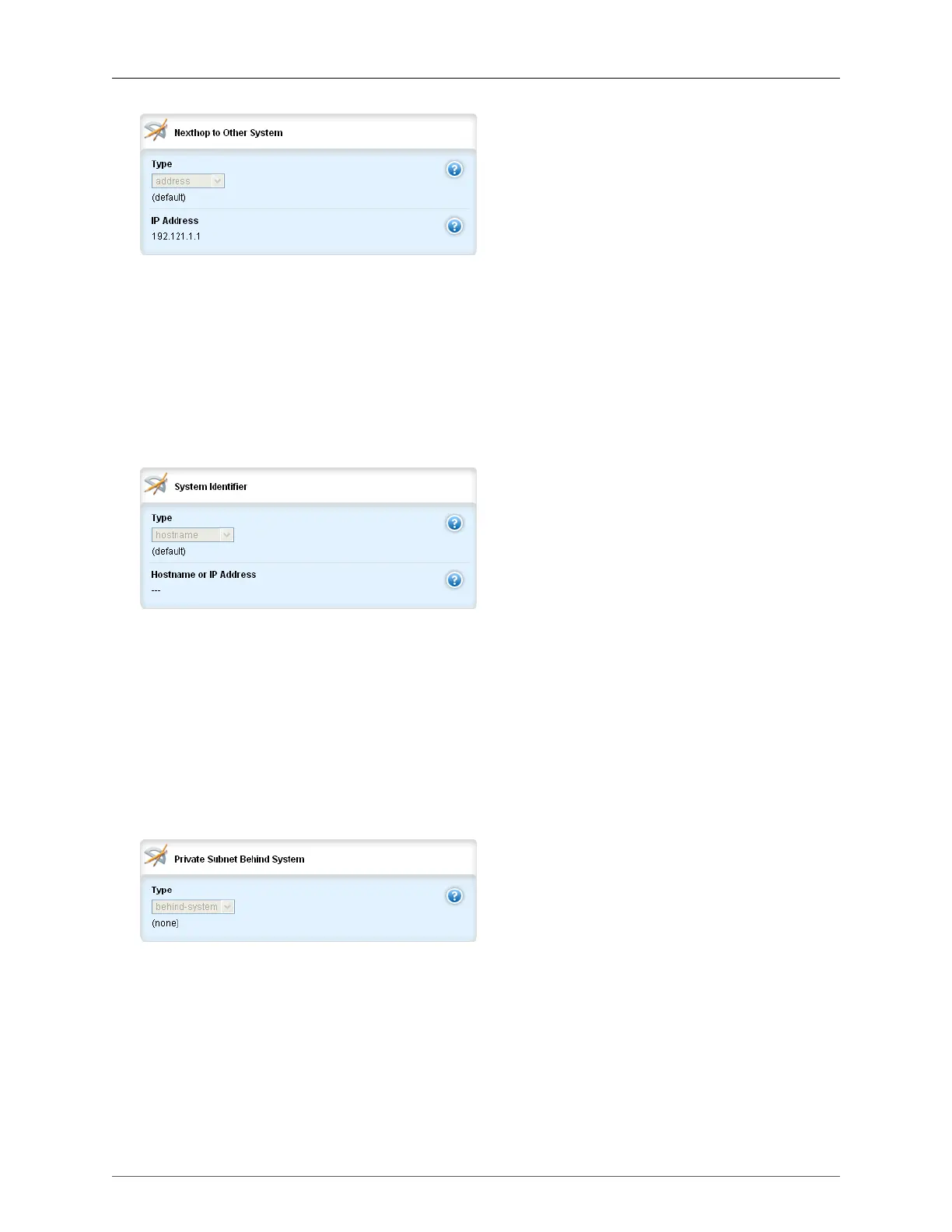

Figure 33.17. Nexthop To Other System form
Type
Synopsis: string - one of the following keywords { address, default-route, default }
Default: default
Type.
IP Address
Synopsis: IPv4 address in dotted-decimal notation
IP address.
Figure 33.18. System Identifier form
type
Synopsis: string - one of the following keywords { hostname, address, from-certificate, none,
default }
Default: default
Type.
Hostname or IP Address
Synopsis: A string conforming to: "[^ ]+"
Hostname or IP address.
Figure 33.19. Private Subnet Behind System form
If data is configured, the path to the Private Subnet Behind System form will be tunnel/ipsec/connection/
{line module}/left/subnet.
This form displays the private subnet behind the system.
Type
Synopsis: string - one of the following keywords { behind-system, none }
Default: none

RuggedCom RuggedBackbone RX1500 Specifications

General

Power Supply	Dual redundant, hot-swappable power supplies
Switching Capacity	Up to 128 Gbps
Operating Temperature Range	-40°C to +85°C
Mounting	DIN rail or panel mount
Certifications	IEEE 1613, IEC 61850-3, EN 50155, EN 50121-4
Power Input	24/48VDC or 110/220 VAC
Enclosure	Rugged metal
Type	Modular Layer 3 switch
