22. Serial Protocols
ROX™ v2.2 User Guide 235 RuggedBackbone™ RX1500

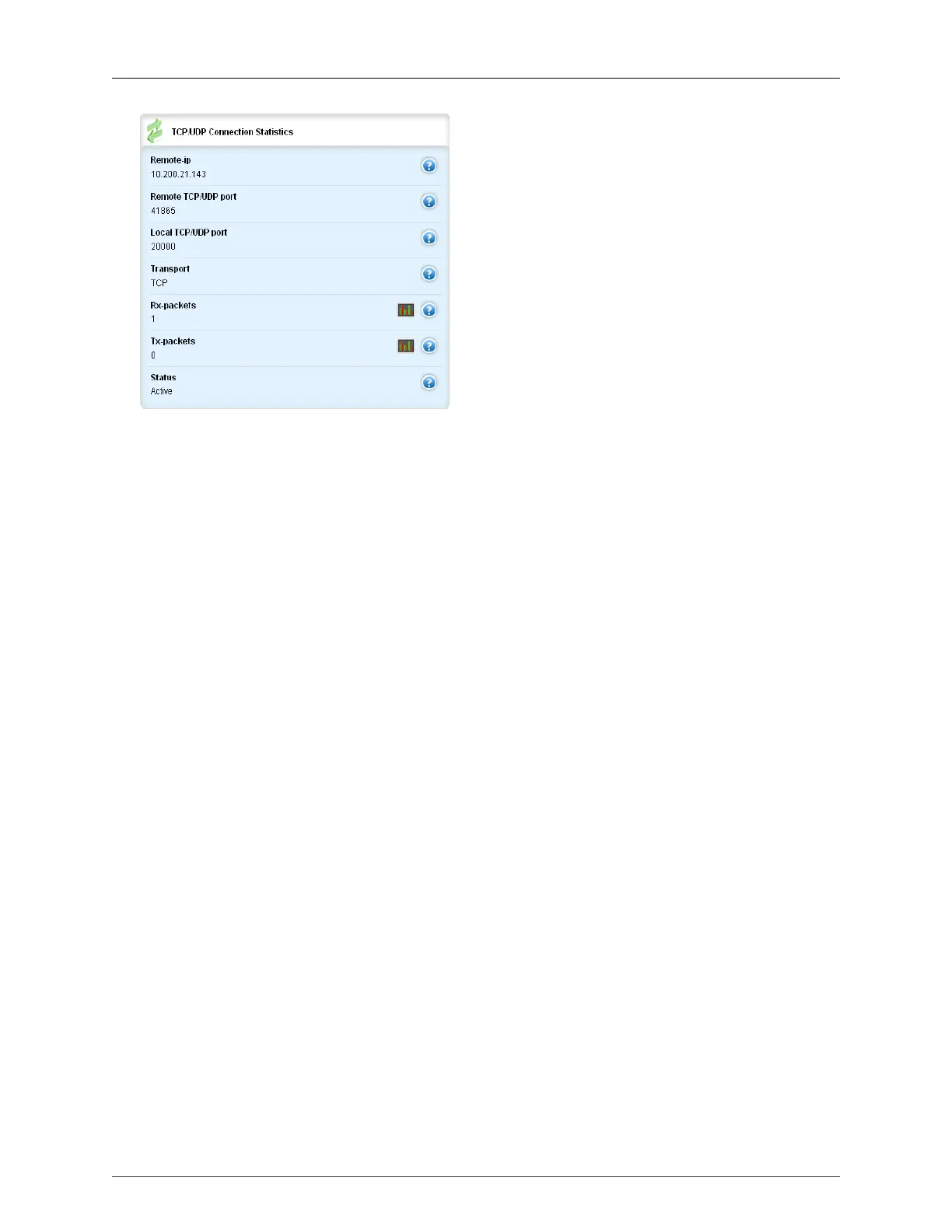

Figure 22.18. TCP/UDP Connection Statistics form
index
Synopsis: A string
The transport connection index
remote-ip
Synopsis: A string
The IP address of the remote serial server
Remote TCP/UDP port
Synopsis: integer
The port of the remote serial server
Local TCP/UDP port
Synopsis: integer
The local port for the incoming connection
transport
Synopsis: A string
The transport protocol (UDP or TCP) for this serial port
rx-packets
Synopsis: unsigned integer
The number of packets received from TCP/UDP
tx-packets
Synopsis: unsigned integer
The number of packets transmitted to TCP/UDP
target-port
Synopsis: A string
Target serial port
status
Synopsis: A string
The connection status of the serial port
