RuggedCom RuggedBackbone RX1500 User Manual

24. Port Security
ROX™ v2.2 User Guide 270 RuggedBackbone™ RX1500
24.1.2.1. RADIUS

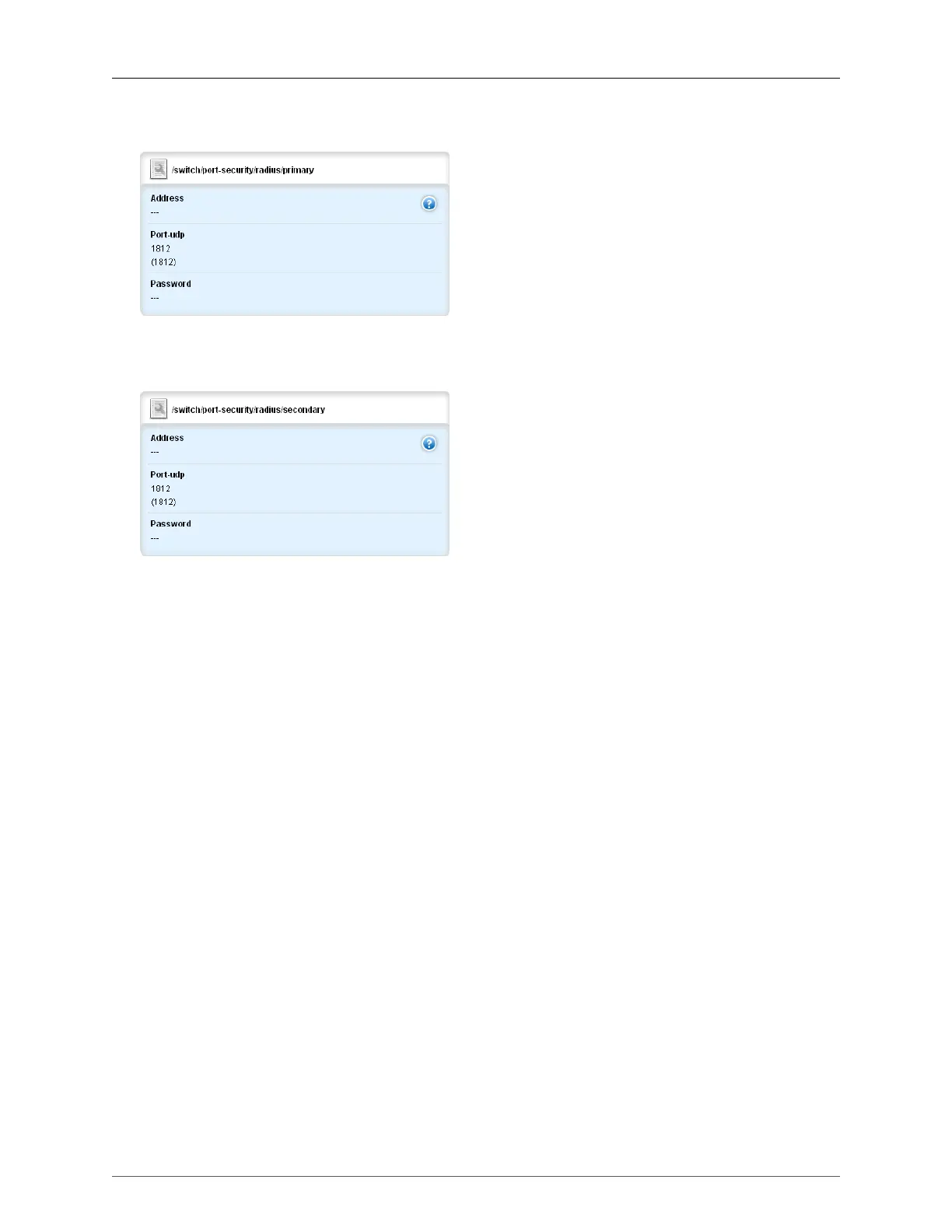

Figure 24.3. Port Security RADIUS Primary form
The path to the Port Security RADIUS Primary form is switch/port-security/radius.
Figure 24.4. Port Security RADIUS Secondary form
The path to the Port Security RADIUS Secondary form is switch/port-security/radius.
address
Synopsis: IPv4 address in dotted-decimal notation
The IPv4 address of the server
UDP Port
Synopsis: integer
Default: 1812
The IPv4 port of the server
password
Synopsis: "AES CFB128"-encrypted string
The password of the server
RADIUS servers can be configured for port security. For more information on RADIUS, please see
Section 10.1, “RADIUS”
24.2. Port Security Configuration
To display the Port Security menu, Port Security form, and 802.1x Parameters form, navigate to
interface/switch/{line module}/port-security.

RuggedCom RuggedBackbone RX1500 Specifications

General

Power Supply	Dual redundant, hot-swappable power supplies
Switching Capacity	Up to 128 Gbps
Operating Temperature Range	-40°C to +85°C
Mounting	DIN rail or panel mount
Certifications	IEEE 1613, IEC 61850-3, EN 50155, EN 50121-4
Power Input	24/48VDC or 110/220 VAC
Enclosure	Rugged metal
Type	Modular Layer 3 switch
