16. Ethernet Ports
ROX™ v2.2 User Guide 165 RuggedBackbone™ RX1500

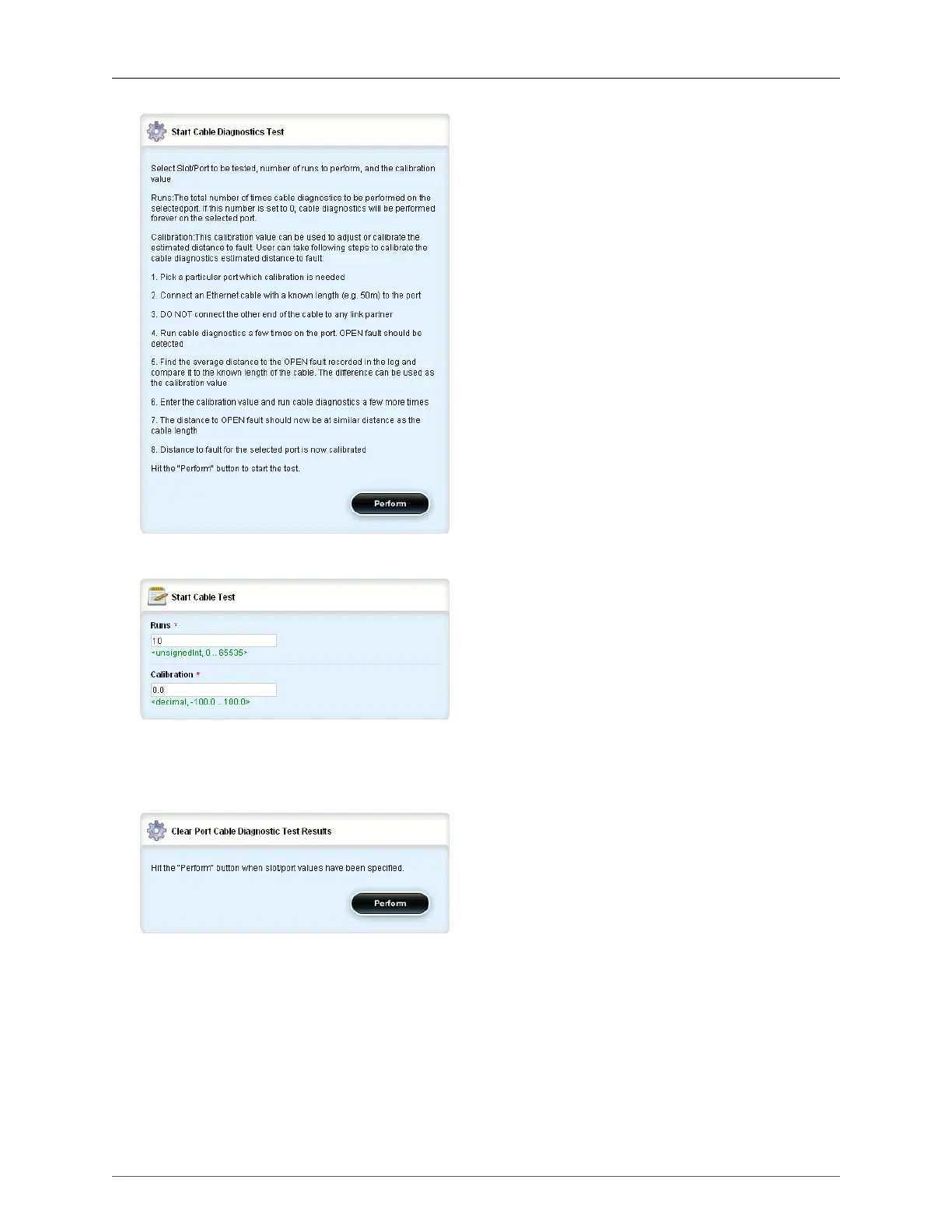

Figure 16.13. Start Cable Diagnostics Test form
Figure 16.14. Start Cable Test form
To clear cable diagnostics, navigate to interfaces/switch/{line module}/diagnostics/clear-cable-stats-
port. On the Clear Port Cable Diagnostic Test Results form, click Perform.
Figure 16.15. Clear Port Cable Diagnostic Test Results form
To clear all test results, rather than results from a single port, navigate to switch/clear-cable-stats-all.
