21. Modem
ROX™ v2.2 User Guide 204 RuggedBackbone™ RX1500
21.1.2.1. HSPA
The HSPA GSM profile is selected from the HSPA menu but Edge data needs to be configured from
the Global Cellular GSM menu. See Section 21.1.2.3, “Global Cellular Modem GSM Configuration” for
information on configuration.
If data is configured, the HSPA Cellular Modem Information form can be found under interfaces/
cellmodem/{line module}/hspa.

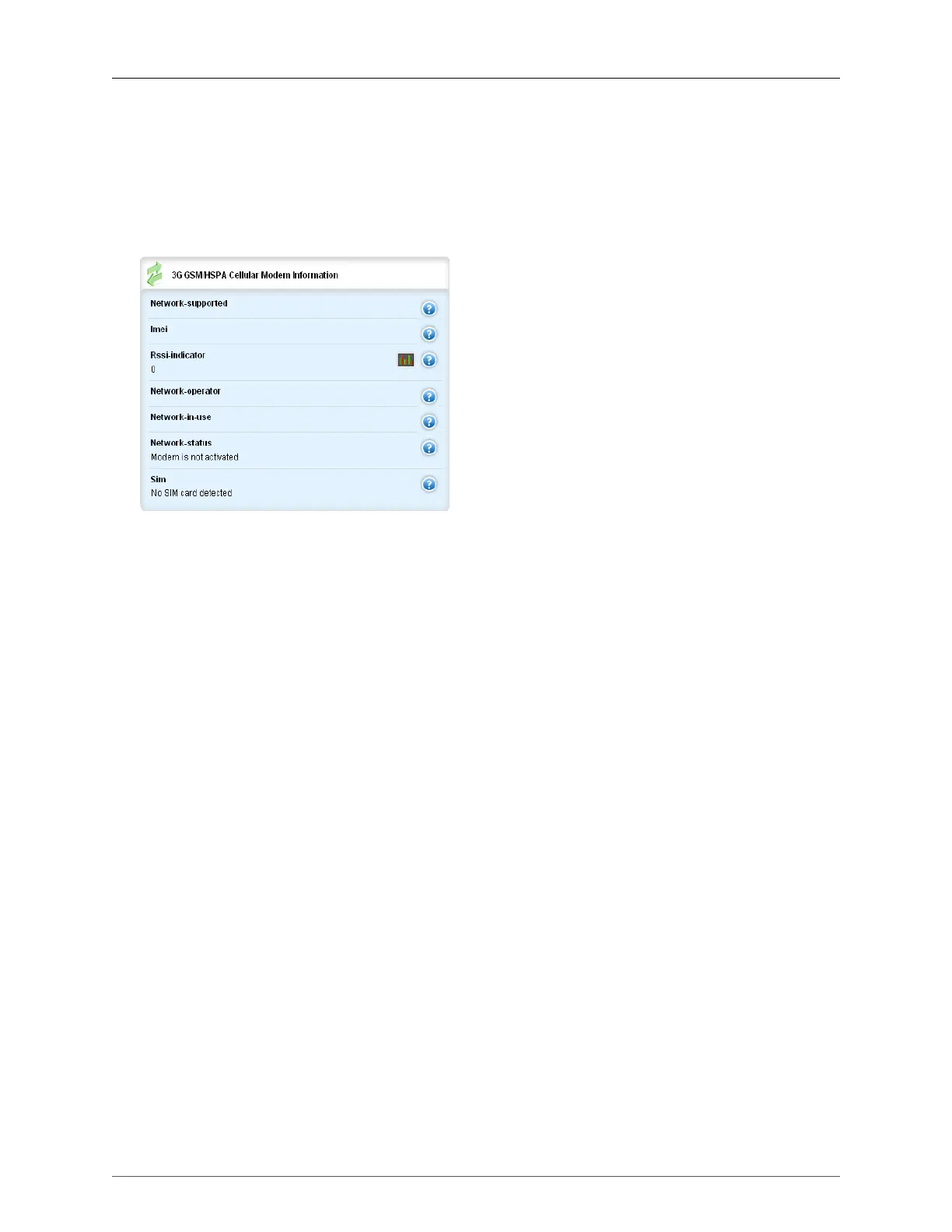

Figure 21.2. HSPA Cellular Modem Information form
The HSPA Cellular Modem Information form displays modem information.
network-supported
Synopsis: A string
Wireless technologies supported by the modem
imei
Synopsis: A string
International Mobile Equipment Indentity
radio
Synopsis: A string
The current RF status of cellmodem
rssi-indicator
Synopsis: integer
The Received Signal Strength Indicator in dBm
network-operator
Synopsis: A string
The wireless network operator currently in use
network-in-use
Synopsis: A string
The network technology currently in use by the modem
network-status
Synopsis: A string
The registration status of the modem with the wireless network
sim
Synopsis: A string

RuggedCom RuggedBackbone RX1500 Specifications

General

Power Supply	Dual redundant, hot-swappable power supplies
Switching Capacity	Up to 128 Gbps
Operating Temperature Range	-40°C to +85°C
Mounting	DIN rail or panel mount
Certifications	IEEE 1613, IEC 61850-3, EN 50155, EN 50121-4
Power Input	24/48VDC or 110/220 VAC
Enclosure	Rugged metal
Type	Modular Layer 3 switch
