18. IP Statistics
ROX™ v2.2 User Guide 183 RuggedBackbone™ RX1500
18. IP Statistics
The forms and tables accessible from the Interfaces IP menu (below) show the status of what has been
configured using the forms and tables from the Interface and IP menus.

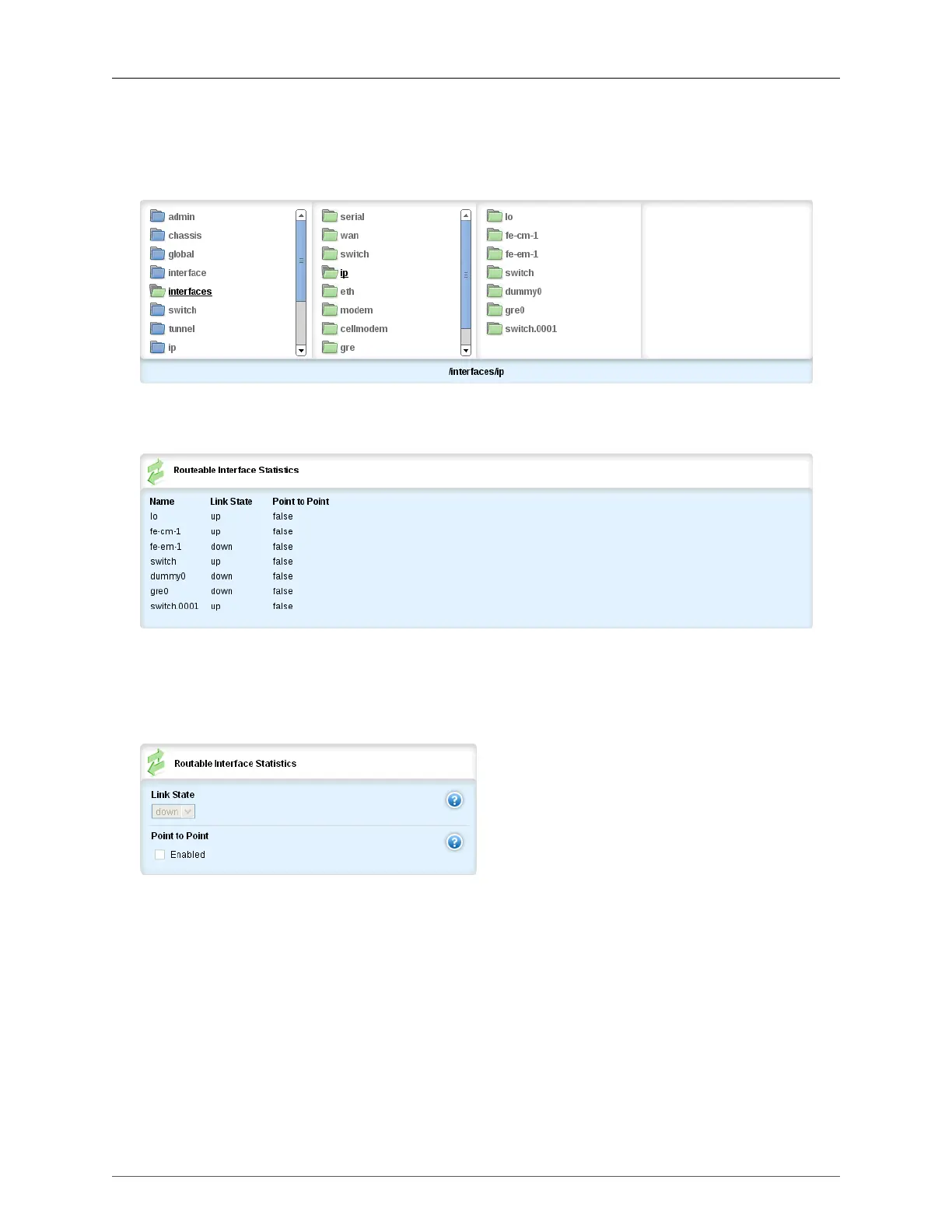

Figure 18.1. Interfaces IP Menu
The Interfaces IP menu is accessible from the main menu under interfaces/ip.
Figure 18.2. Routable Interface Statistics Table
This table appears on the same screen as the Interfaces IP menu.
The path to the Routable Interface Statistics form, Receive Statistics form and Transmit Statistics form
is interfaces/ip/{interface}.
Figure 18.3. Routable Interface Statistics Form
Name
Synopsis: A string
The interface name
Link State
Synopsis: string - one of the following keywords { lowerLayerDown, notPresent, dormant,
unknown, testing, down, up }
Up or Down
Point to Point
Synopsis: boolean

RuggedCom RuggedBackbone RX1500 Specifications

General

Power Supply	Dual redundant, hot-swappable power supplies
Switching Capacity	Up to 128 Gbps
Operating Temperature Range	-40°C to +85°C
Mounting	DIN rail or panel mount
Certifications	IEEE 1613, IEC 61850-3, EN 50155, EN 50121-4
Power Input	24/48VDC or 110/220 VAC
Enclosure	Rugged metal
Type	Modular Layer 3 switch
