RuggedCom RuggedBackbone RX1500 User Manual

33. Tunnelling
ROX™ v2.2 User Guide 382 RuggedBackbone™ RX1500
33.2. L2TP Tunnelling Configuration

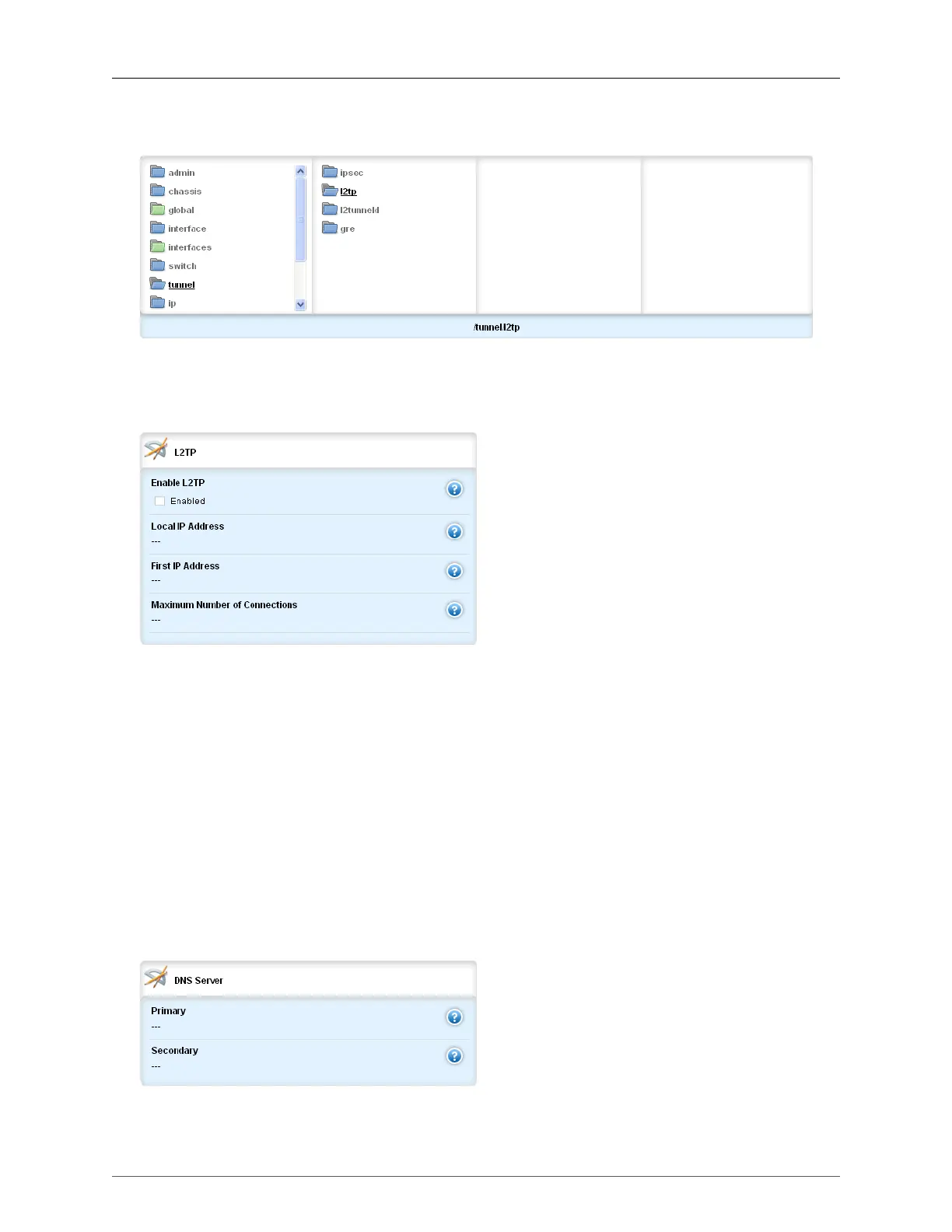

Figure 33.23. L2TP menu
The path to the L2TP menu is tunnel/l2tp. The L2TP, DNS Server, PPP Options and WINS server forms
appear on the same screen as this menu.
Figure 33.24. L2TP form
Enable L2TP
Enable L2TP.
Local IP Address
Synopsis: IPv4 address in dotted-decimal notation
Local IP address.
First IP Address
Synopsis: IPv4 address in dotted-decimal notation
First address in remote IP address pool.
Maximum Number of Connections
Synopsis: unsigned integer
Maximum number of connections.
Figure 33.25. DNS Server form

RuggedCom RuggedBackbone RX1500 Specifications

General

Power Supply	Dual redundant, hot-swappable power supplies
Switching Capacity	Up to 128 Gbps
Operating Temperature Range	-40°C to +85°C
Mounting	DIN rail or panel mount
Certifications	IEEE 1613, IEC 61850-3, EN 50155, EN 50121-4
Power Input	24/48VDC or 110/220 VAC
Enclosure	Rugged metal
Type	Modular Layer 3 switch
