39. Traffic Control
ROX™ v2.2 User Guide 464 RuggedBackbone™ RX1500
description
Synopsis: string
(optional) A description for this configuration
For basic traffic control configurations, Port, Address and Interface refer to the source
of the traffic.
39.2.1.2. Advanced-configuration Mode
To configure advanced-configuration mode, follow the procedure below.

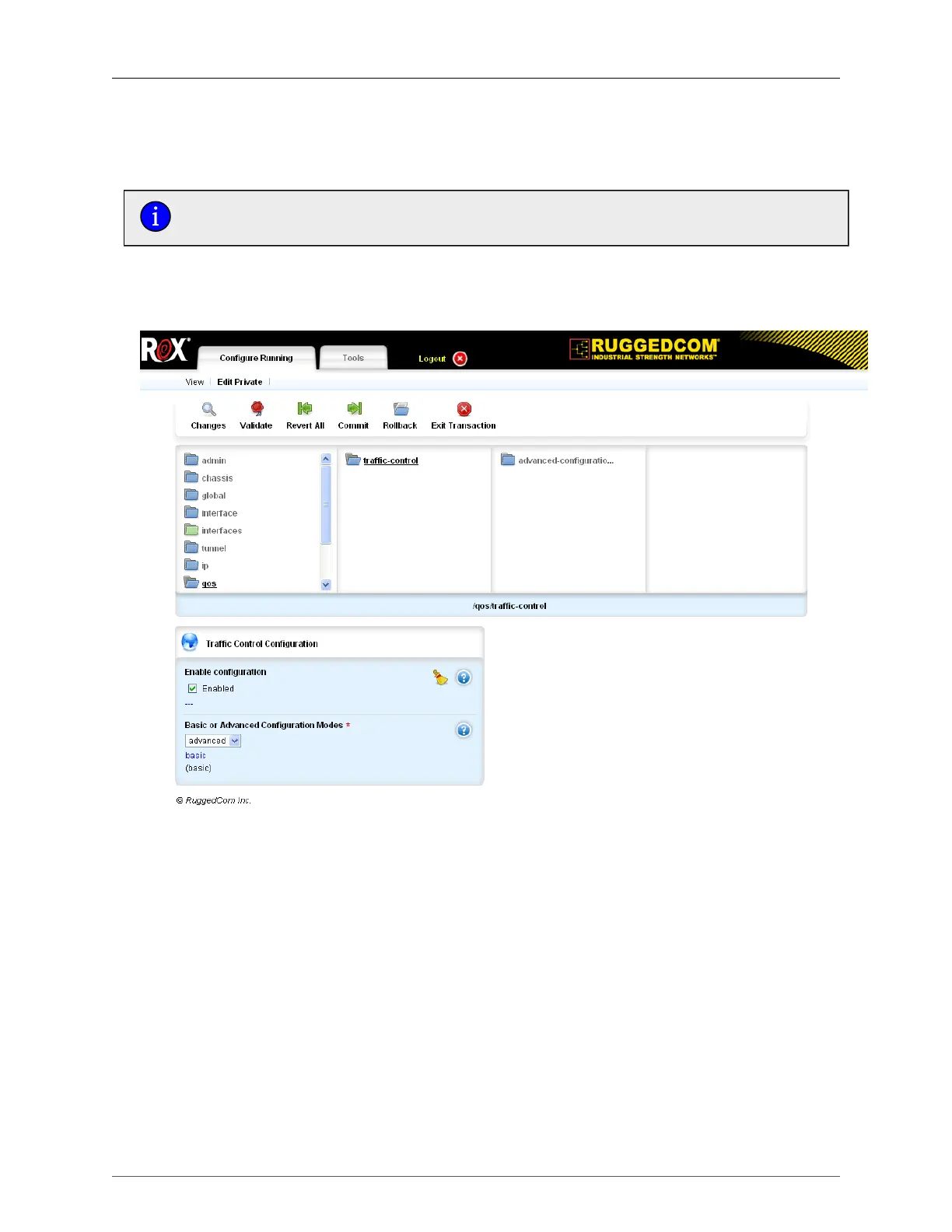

Figure 39.8. Enabling Advanced-configuration Mode
Procedure 39.2. Configuring Advanced-configuration Mode
1. Enter Edit Private mode.
2. Click on qos/traffic-control.
3. On the Traffic Control Configuration form, click Enabled in the Enable configuration field.
4. Select advanced in the Basic or Advanced Configuration Modes field.
5. Click Commit.
6. Click Exit Transaction.
39.2.1.2.1. Classes
Classes define classes for traffic shaping.
