4. Basic Network Configuration
ROX™ v2.2 User Guide 73 RuggedBackbone™ RX1500

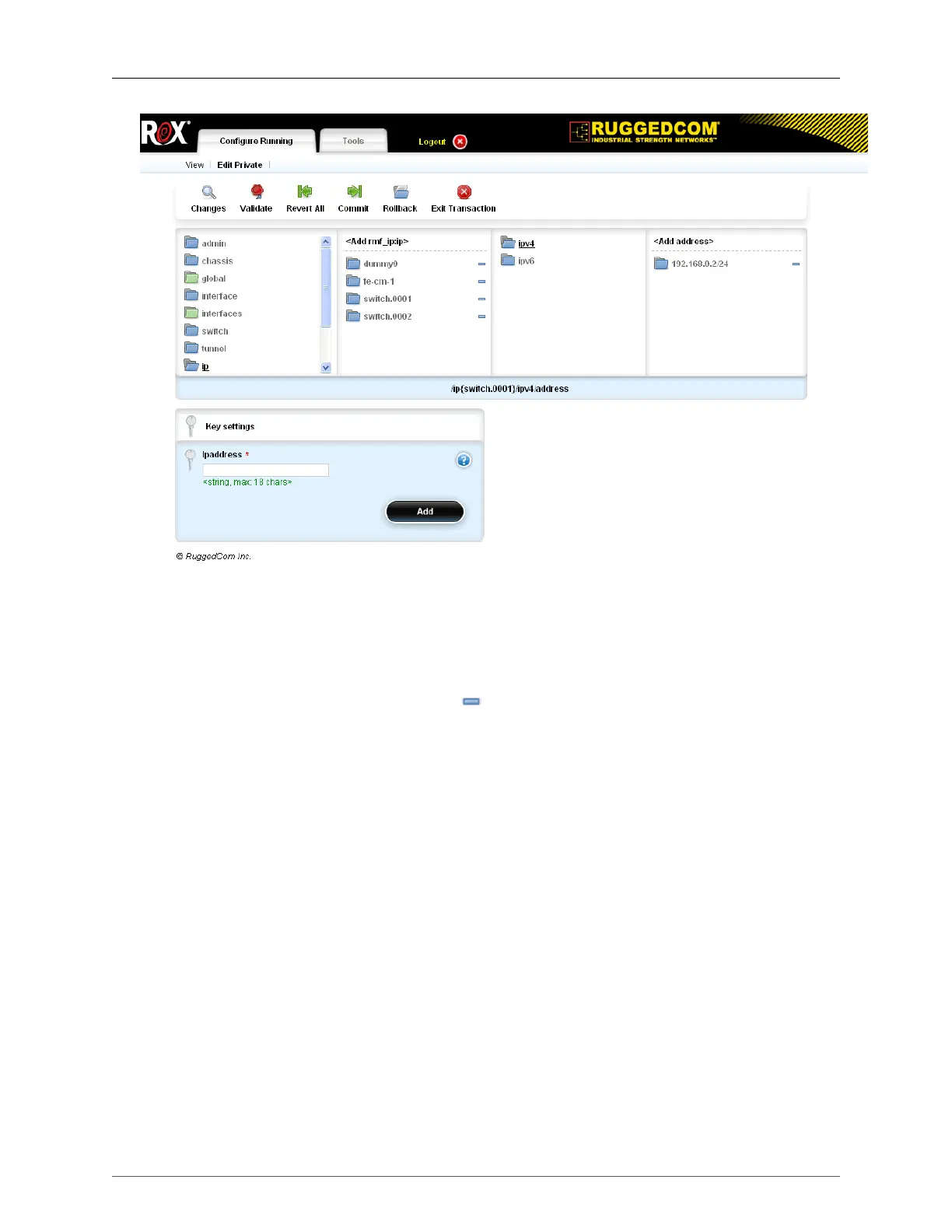

Figure 4.2. Configuring an IP Address
Procedure 4.1. Configuring an IP Address
1. Enter Edit Private mode.
2. Navigate to ip/interface/ipv4.
3. To delete an existing IP address, click the delete icon.
4. Click Add address. The Key settings form appears.
5. In the IPaddress field, type the new IP address.
6. Click Commit.
7. Click Exit Transaction.
To create additional interfaces, see Section 5.3, “Adding Interfaces to Switched Ports”.
4.1.2. Simple Network Setup with the Default IPv4 Addresses
This section describes how to set up a simple network using the factory default IPv4 address.

RuggedCom RuggedBackbone RX1500 Specifications

General

Power Supply	Dual redundant, hot-swappable power supplies
Switching Capacity	Up to 128 Gbps
Operating Temperature Range	-40°C to +85°C
Mounting	DIN rail or panel mount
Certifications	IEEE 1613, IEC 61850-3, EN 50155, EN 50121-4
Power Input	24/48VDC or 110/220 VAC
Enclosure	Rugged metal
Type	Modular Layer 3 switch
