RuggedCom RuggedBackbone RX1500 User Manual

39. Traffic Control
ROX™ v2.2 User Guide 470 RuggedBackbone™ RX1500

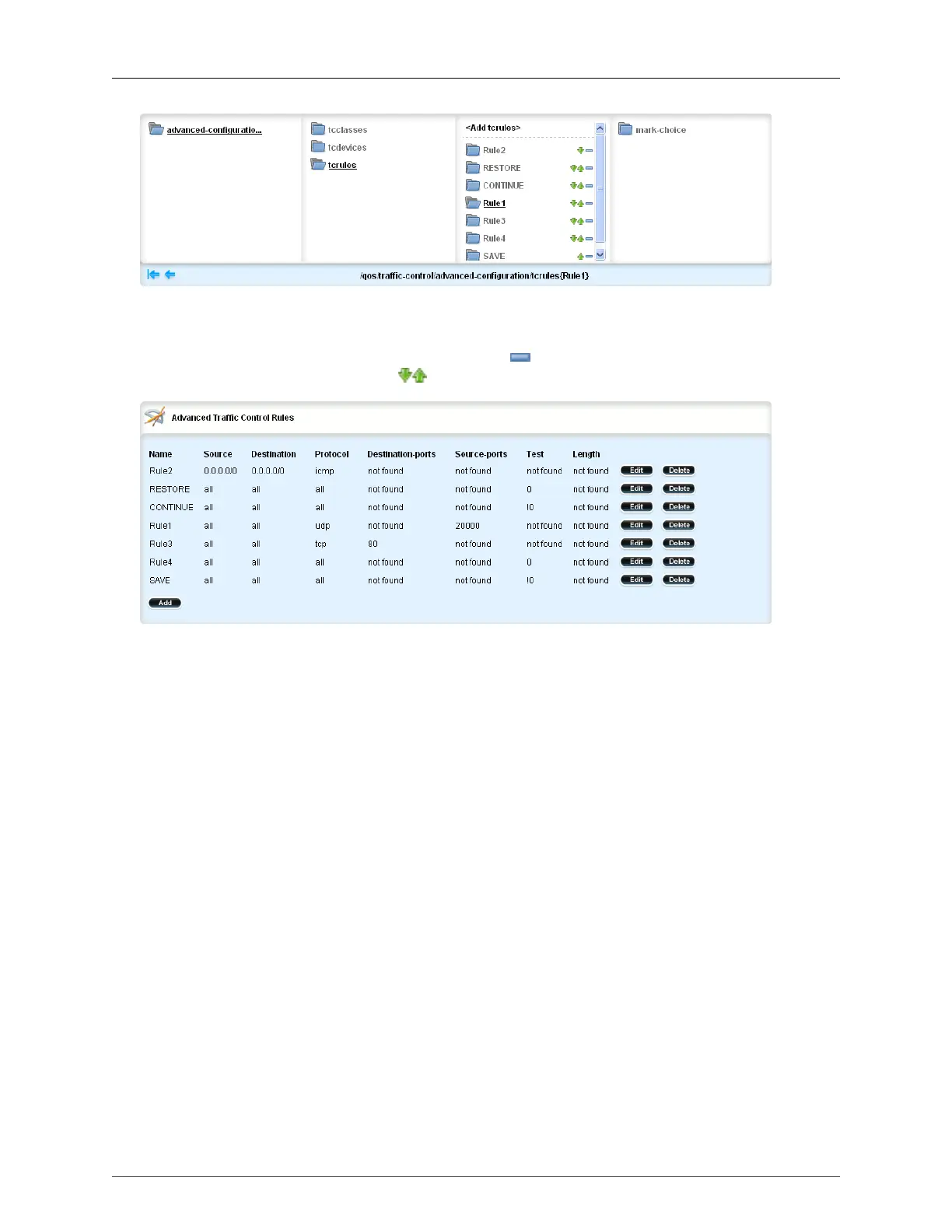

Figure 39.14. TCrules menu
The tcrules menu allows you to add, edit or remove a traffic classification rule. Add a new rule by
selecting <Add tcrules>. Remove a tcrule by selecting next to a tcrule and click on an existing tcrule
to modify it. Reorder rules by clicking next to the rule submenus.
Figure 39.15. Advanced Traffic Control Rules table
The display this table, navigate to qos/traffic-control/advanced-configuration/tcrules.

RuggedCom RuggedBackbone RX1500 Specifications

General

Power Supply	Dual redundant, hot-swappable power supplies
Switching Capacity	Up to 128 Gbps
Operating Temperature Range	-40°C to +85°C
Mounting	DIN rail or panel mount
Certifications	IEEE 1613, IEC 61850-3, EN 50155, EN 50121-4
Power Input	24/48VDC or 110/220 VAC
Enclosure	Rugged metal
Type	Modular Layer 3 switch
