RuggedCom RuggedBackbone RX1500 User Manual

2. System Administration
ROX™ v2.2 User Guide 48 RuggedBackbone™ RX1500
target-version

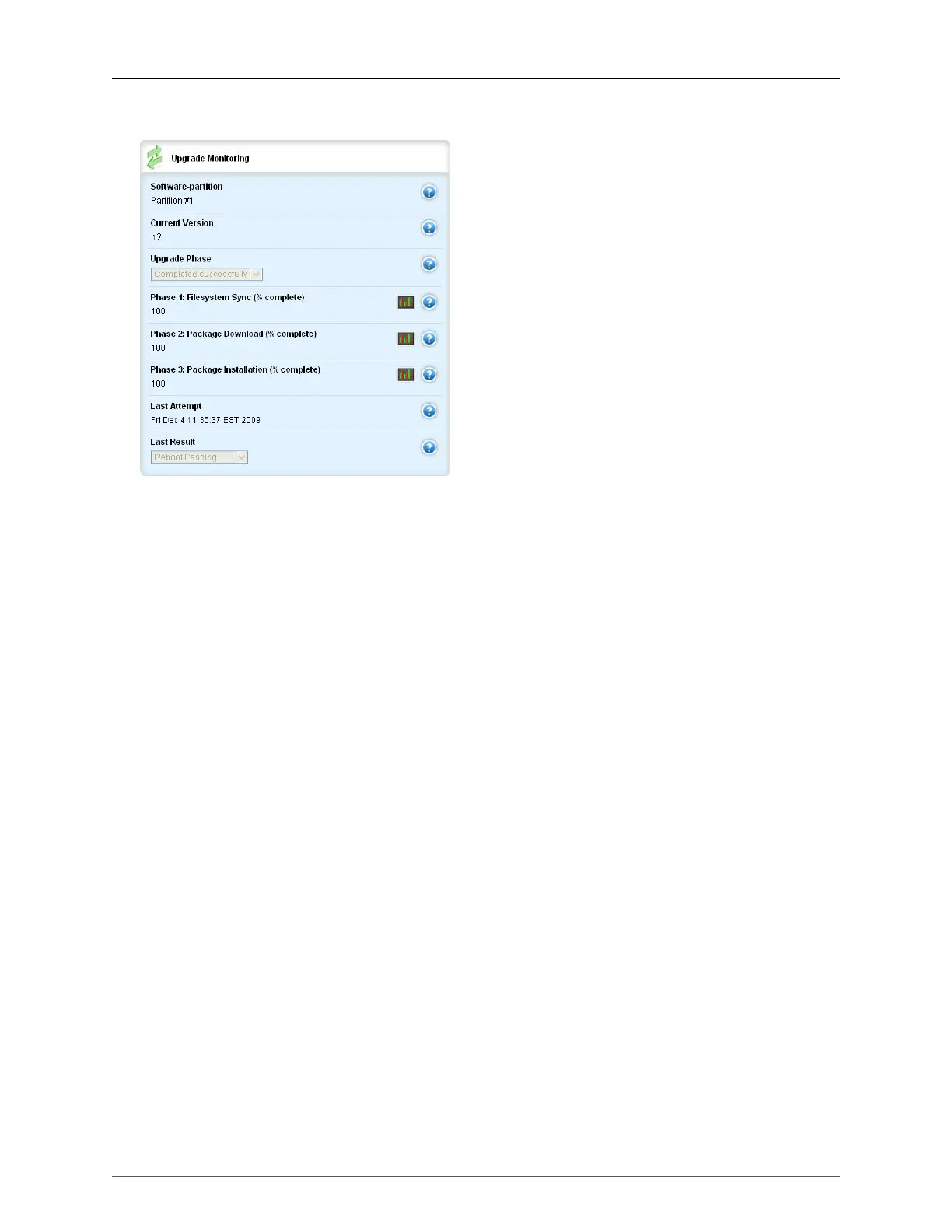

Figure 2.26. Upgrade Monitoring
The Upgrade Monitoring form displays the status of the current upgrade operation.
software-partition
Synopsis: A string
The current active partition number. The unit has two software partitions: #1 and #2. Upgrades are
always peformed to the other partition.
Current Version
Synopsis: A string
The current operating software version.
Upgrade Phase
Synopsis: string - one of the following keywords { Failed, Completed successfully, Unknown
state, Installing packages, Downloading packages, Copying filesystem, Estimating upgrade size,
Inactive }
The current phase or state of the upgrade. It is one of 'Estimating upgrade size', 'Copying filesystem',
'Downloading packages', 'Installing packages', Unknown state', 'Completed successfully', or
'Failed'. These phrases will not vary, any may be used programmitcally for ascertaining state.
status-message
Synopsis: string
Additional details on the status of the upgrade
Phase 1: Filesystem Sync (% complete)
Synopsis: integer
Phase 1 of the upgrade involves synchronizing the filesystem with the partition to which we are
upgrading.
This reflects the estimated percent complete.
Phase 2: Package Download (% complete)
Synopsis: integer
Phase 2 of the upgrade downloads all packages that require an update. This reflects the estimated
percent complete.

RuggedCom RuggedBackbone RX1500 Specifications

General

Power Supply	Dual redundant, hot-swappable power supplies
Switching Capacity	Up to 128 Gbps
Operating Temperature Range	-40°C to +85°C
Mounting	DIN rail or panel mount
Certifications	IEEE 1613, IEC 61850-3, EN 50155, EN 50121-4
Power Input	24/48VDC or 110/220 VAC
Enclosure	Rugged metal
Type	Modular Layer 3 switch
