25. Multicast Filtering
ROX™ v2.2 User Guide 286 RuggedBackbone™ RX1500
The GMRP Form appears on the same screen as the Multicast Filtering menu.
Enabled
Synopsis: boolean
Default: false
GMRP Enable
RSTP Flooding
Whether or not multicast streams will be flooded out of all RSTP non-edge ports upon detection
of a topology change. Such flooding is desirable, if multicast stream delivery must be guaranteed
without interruption.
Leave Timer (ms)
Synopsis: integer
Default: 4000
The time in milliseconds to wait after issuing Leave or LeaveAll before removing registered
multicast groups. If Join messages for specific addresses are received before this timer expires,
the addresses will be kept registered.

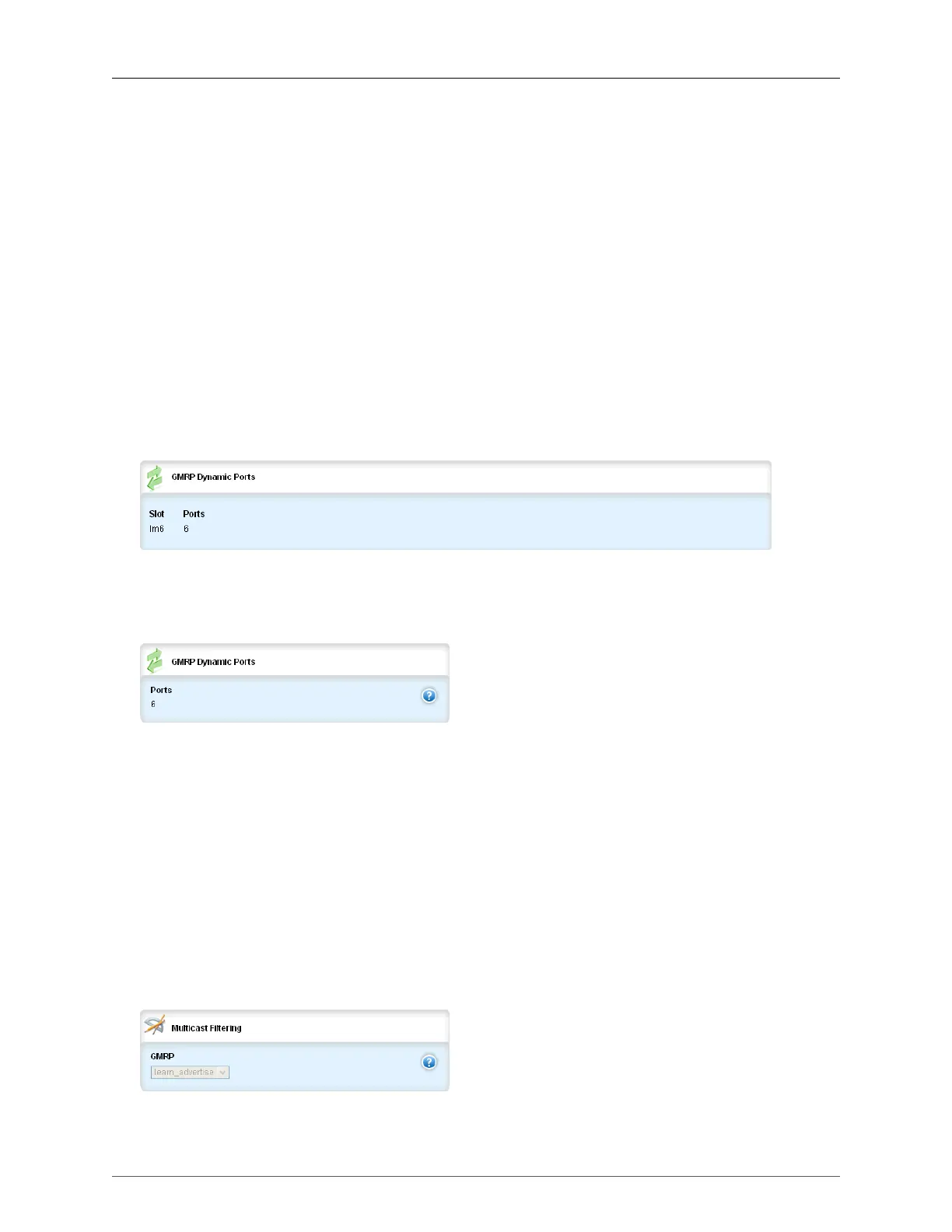

Figure 25.20. GMRP Dynamic Ports table
The path to this menu is switch/mcast-filtering/mcast-group-summary, then clicking on one of the linked
submenus and then clicking on gmrp-dynamic-ports.
Figure 25.21. GMRP Dynamic Ports form
The path to this menu is switch/mcast-filtering/mcast-group-summary, then clicking on one of the linked
submenus, then on gmrp-dynamic-ports and finally, clicking on a linked submenu that follows.
GMRP Dynamic Ports are ports that joined this group dynamically through a GMRP Application and to
which the multicast group traffic is forwarded.
Slot
Synopsis: string - one of the following keywords { lm6, lm5, lm4, lm3, lm2, lm1, sm }
The name of the module location provided on the silkscreen across the top of the device.
Ports
Synopsis: A string
The selected ports on the module installed in the indicated slot.
Figure 25.22. Multicast Filtering form
