RuggedCom RuggedBackbone RX1500 User Manual

33. Tunnelling
ROX™ v2.2 User Guide 393 RuggedBackbone™ RX1500

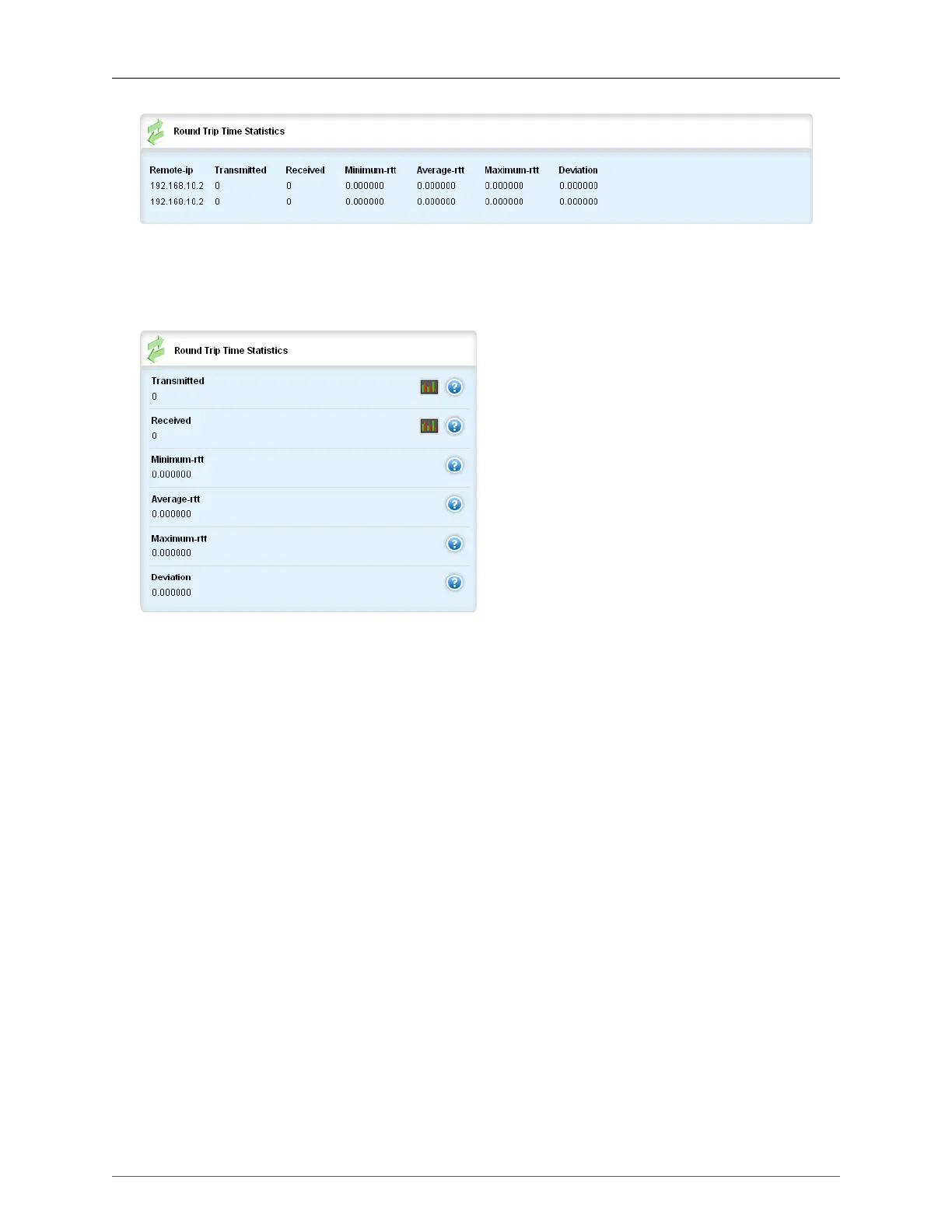

Figure 33.45. Round Trip Time Statistics table
The Round Trip Time Statistics table reflects the measured RTT to each remote daemon. The minimum,
average, maximum and standard deviation of times is presented. Entries with a large difference between
the Transmitted and Received fields indicate potential problems.
Figure 33.46. Round Trip Time Statistics form
remote-ip
Synopsis: IPv4 address in dotted-decimal notation
IP address of remote goose daemon
transmitted
Synopsis: unsigned integer
The number of beacon frames transmitted over the tunnel
received
Synopsis: unsigned integer
The number of beacon frames transmitted over the tunnel
minimum-rtt
Synopsis: A string
The Minimum Beacon Round-Trip-Time
average-rtt
Synopsis: A string
The Average Beacon Round-Trip-Time
maximum-rtt
Synopsis: A string
The Maximum Beacon Round-Trip-Time
deviation
Synopsis: A string

RuggedCom RuggedBackbone RX1500 Specifications

General

Power Supply	Dual redundant, hot-swappable power supplies
Switching Capacity	Up to 128 Gbps
Operating Temperature Range	-40°C to +85°C
Mounting	DIN rail or panel mount
Certifications	IEEE 1613, IEC 61850-3, EN 50155, EN 50121-4
Power Input	24/48VDC or 110/220 VAC
Enclosure	Rugged metal
Type	Modular Layer 3 switch
