23. WAN
ROX™ v2.2 User Guide 241 RuggedBackbone™ RX1500

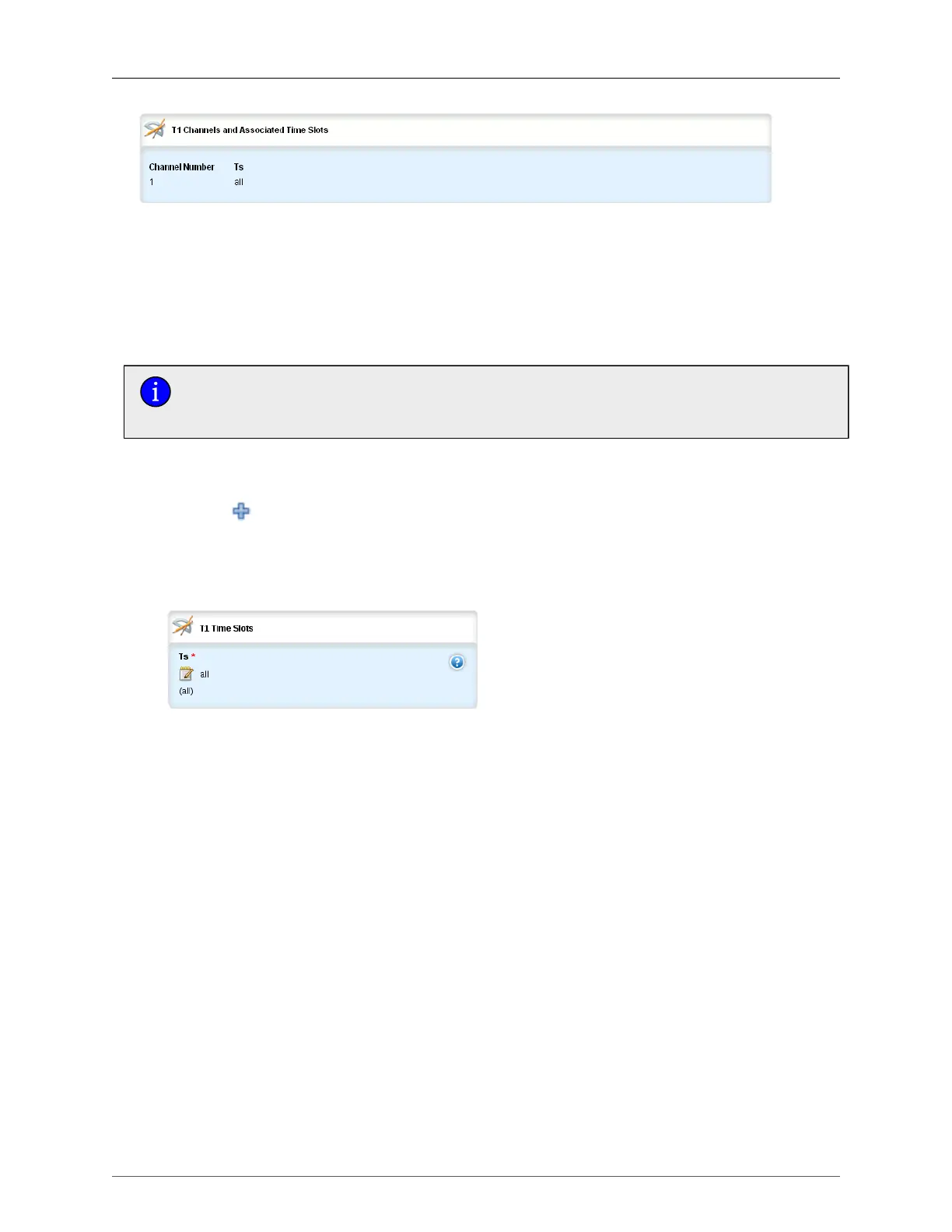

Figure 23.6. T1 Channels and Associated Time Slots table
The path to the T1 Time Slots form is /interface/wan{line module and port}/t1/channel{channel id}.
23.2.3.1. Adding Channels
You can configure one or more channels over one t1/e1 physical interface, and each channel can have
one or more time slots.
A maximum of 24 timeslots (all of the timeslots) can be allocated to a channel. However,
the same time slots cannot be assigned to two channels belonging to the same physical
interface.
To add a channel, follow these steps:
1. Enter edit mode and navigate to /interface/wan{lm6 2}/t1 or /interface/wan{lm6 2}/e1.
2.
Click the icon beside t1 or e1.
3.
Click channel and <Add channel>. The Key settings form appears.
4. In the Key settings form, enter a number in the range of 1 to 24 and click Add. The T1 Time Slots
form appears.
Figure 23.7. T1 Time Slots form
ts
Synopsis: A string conforming to: "(all|[0-9,.]+)"
Default: all
Time slots for this channel. Format: the string 'all', or a comma-separated list of numbers in
the range of 1 to 24.
To specify a range of numbers, separate the start and end of the range with '..'
Example 1: 1,2,3 and 1..3 both represent time slots 1 through 3.
Example 2: 1,2,5..10,11 represents time slots 1, 2, 5, 6, 7, 8, 9, 10, and 11.
5. Commit the changes.
23.2.3.2. Adding Connections
After adding a channel, add connections to the channel. To add connections, enter edit mode and
navigate to interface/wan/{line module}/t1/{line module}/connection.
