12. Chassis Management
ROX™ v2.2 User Guide 133 RuggedBackbone™ RX1500
The Module Configuration feature provides administrative control of the installed modules. The Modules
table and form provide information about the administrative control of a module in a particular chassis
slot.
slot
Synopsis: string - one of the following keywords { lm6, lm5, lm4, lm3, lm2, lm1, sm }
The slot name, as marked on the silkscreen across the top of the chassis.
detected-module
Synopsis: A string
The installed module's type specifier.
Module Type
Synopsis: A string
Sets the module type to be used in this slot.
Admin State
Sets the administrative state for a module. Enabling the module powers it on.

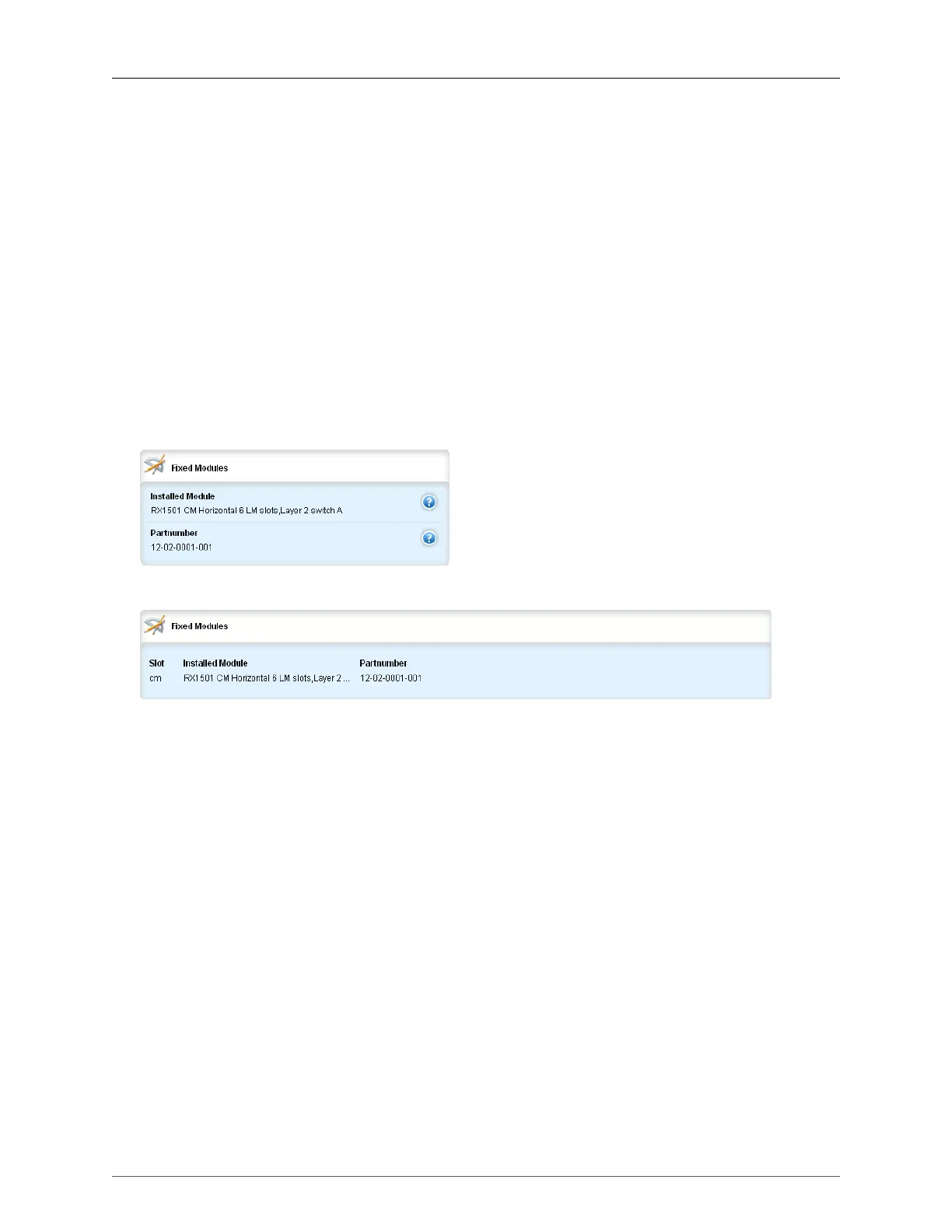

Figure 12.18. Fixed Modules form
Figure 12.19. Fixed Modules table
slot
Synopsis: string - the keyword { --- }
Synopsis: string - one of the following keywords { main, pm2, pm1 }
Synopsis: string - one of the following keywords { lm6, lm5, lm4, lm3, lm2, lm1, sm }
Synopsis: string - one of the following keywords { em, cm }
Synopsis: string - the keyword { trnk }
The slot name, as marked on the silkscreen across the top of the chassis.
Installed Module
Synopsis: A string
The module type to be used in this slot.
partnumber
Synopsis: A string
The part number of the module type in this slot.
