21. Modem
ROX™ v2.2 User Guide 205 RuggedBackbone™ RX1500
The Subscriber Indentity Module number
The following information provides additional details about the fields in the HSPA Cellular Modem
Information Form.
The IMEI (International Mobile Equipment Identity) is a numeric identifier unique to the cellular modem
card.
Rssi Indicator (Received Signal Strength) indicates the signal level received by the cellular modem from
the cell site.
Network Operator displays the identity of the wireless network provider to which the cellular modem
is currently connected.
The Network In Use field displays which network technology is currently in use between the modem
and the network.
Network Status displays the current registration status of the cellular modem with respect to the cellular
network. Possible values are:
• Registered, home
• Registered, roaming
• Unregistered
SIM displays the ID of the SIM card currently installed in the cellular modem.
21.1.2.2. Edge
The Edge GSM profile is selected from the Edge menu but Edge data needs to be configured from
the Global Cellular GSM menu. See Section 21.1.2.3, “Global Cellular Modem GSM Configuration” for
information on configuration.
If data is configured, the path to the Edge Cellular Modem Information form is interfaces/cellmodem/
{line module}/edge.

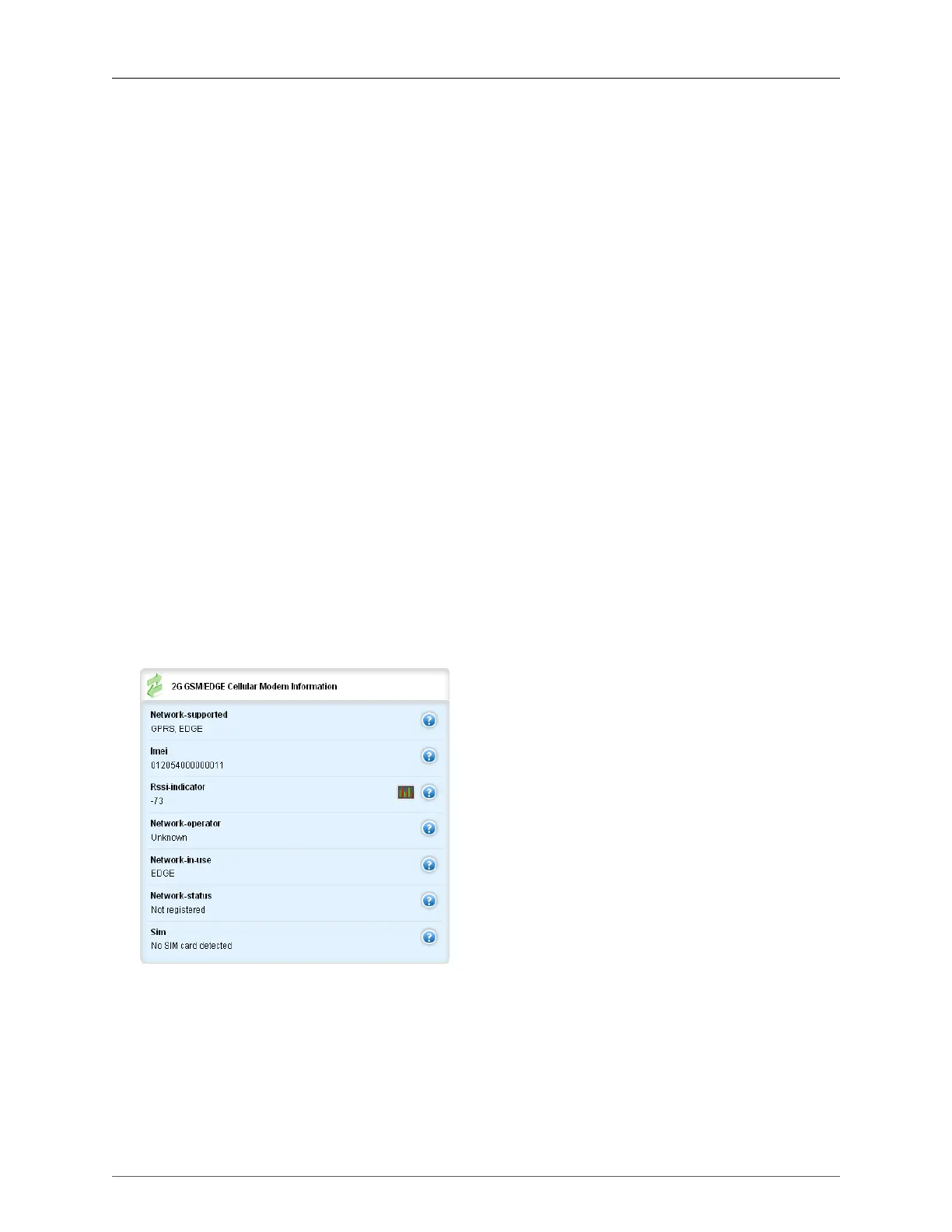

Figure 21.3. Edge Cellular Modem Information form
network-supported
Synopsis: A string
Wireless technologies supported by the modem
imei
Synopsis: A string
