RuggedCom RuggedBackbone RX1500 User Manual

2. System Administration
ROX™ v2.2 User Guide 41 RuggedBackbone™ RX1500
The current local time
2.3. Administrative Access Control
The following access control forms are accessible from the Administration menu - by clicking on the
main menu under admin.

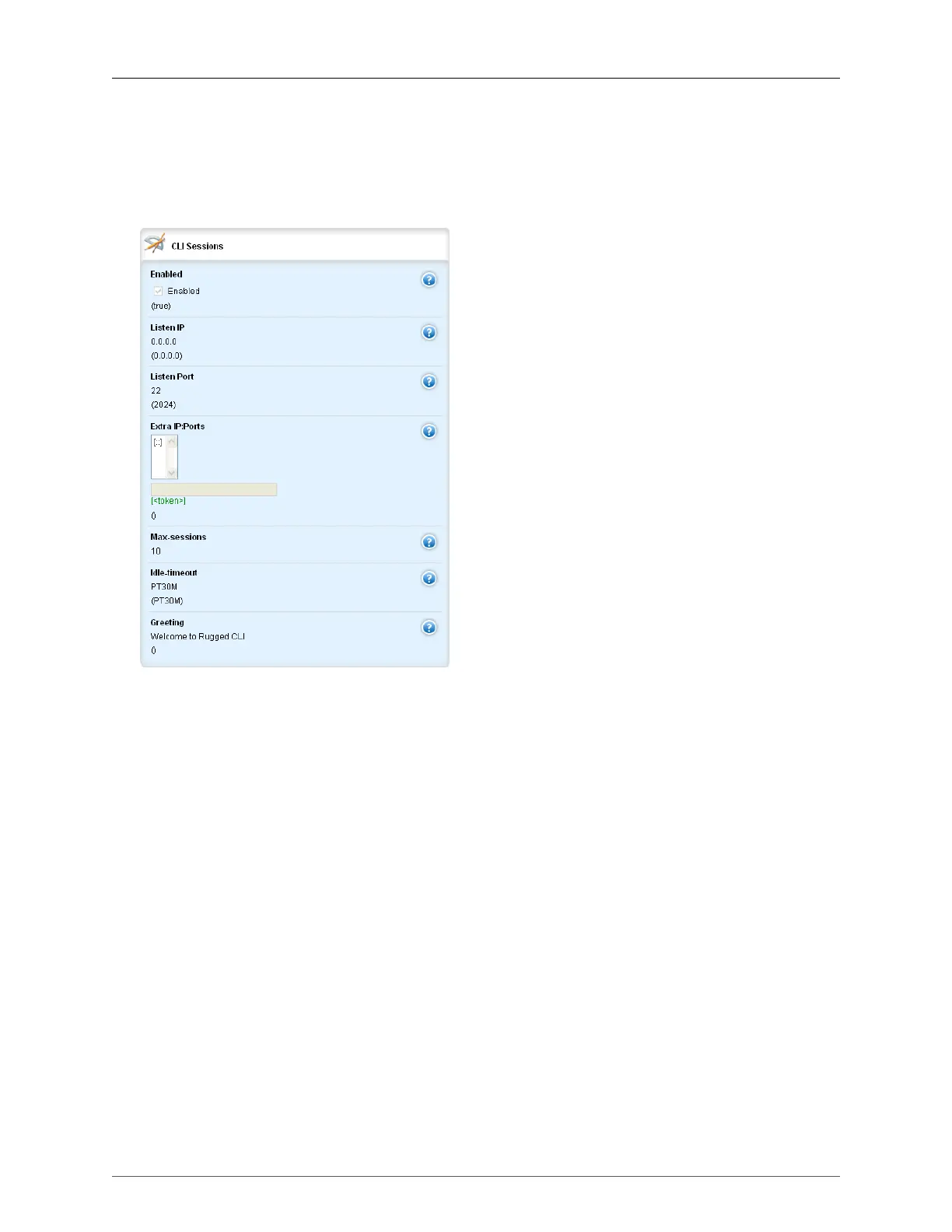

Figure 2.14. CLI Sessions form
enabled
Synopsis: boolean
Default: true
Provides the ability to configure CLI features on the device.
Listen IP
Synopsis: IPv4 address in dotted-decimal notation
Synopsis: IPv6 address in colon-separated hexadecimal notation
Default: 0.0.0.0
The IP Address the CLI will listen on for CLI requests (default 0.0.0.0).
Listen Port
Synopsis: unsigned short integer
Default: 22
The port on which the CLI listens for CLI requests. The default is port 22.
Extra IP:Ports
Synopsis: A string
Synopsis: "extra-ip-ports" occurs in an array.
The CLI will also listen on these IP Addresses:Port values. Add ':#' to set non-default port value #.
(ie. xxx.xxx.xxx.xxx:19343 [::] [::]:16000)

RuggedCom RuggedBackbone RX1500 Specifications

General

Power Supply	Dual redundant, hot-swappable power supplies
Switching Capacity	Up to 128 Gbps
Operating Temperature Range	-40°C to +85°C
Mounting	DIN rail or panel mount
Certifications	IEEE 1613, IEC 61850-3, EN 50155, EN 50121-4
Power Input	24/48VDC or 110/220 VAC
Enclosure	Rugged metal
Type	Modular Layer 3 switch
