22. Serial Protocols
ROX™ v2.2 User Guide 231 RuggedBackbone™ RX1500
22.2.4. Setting DNP

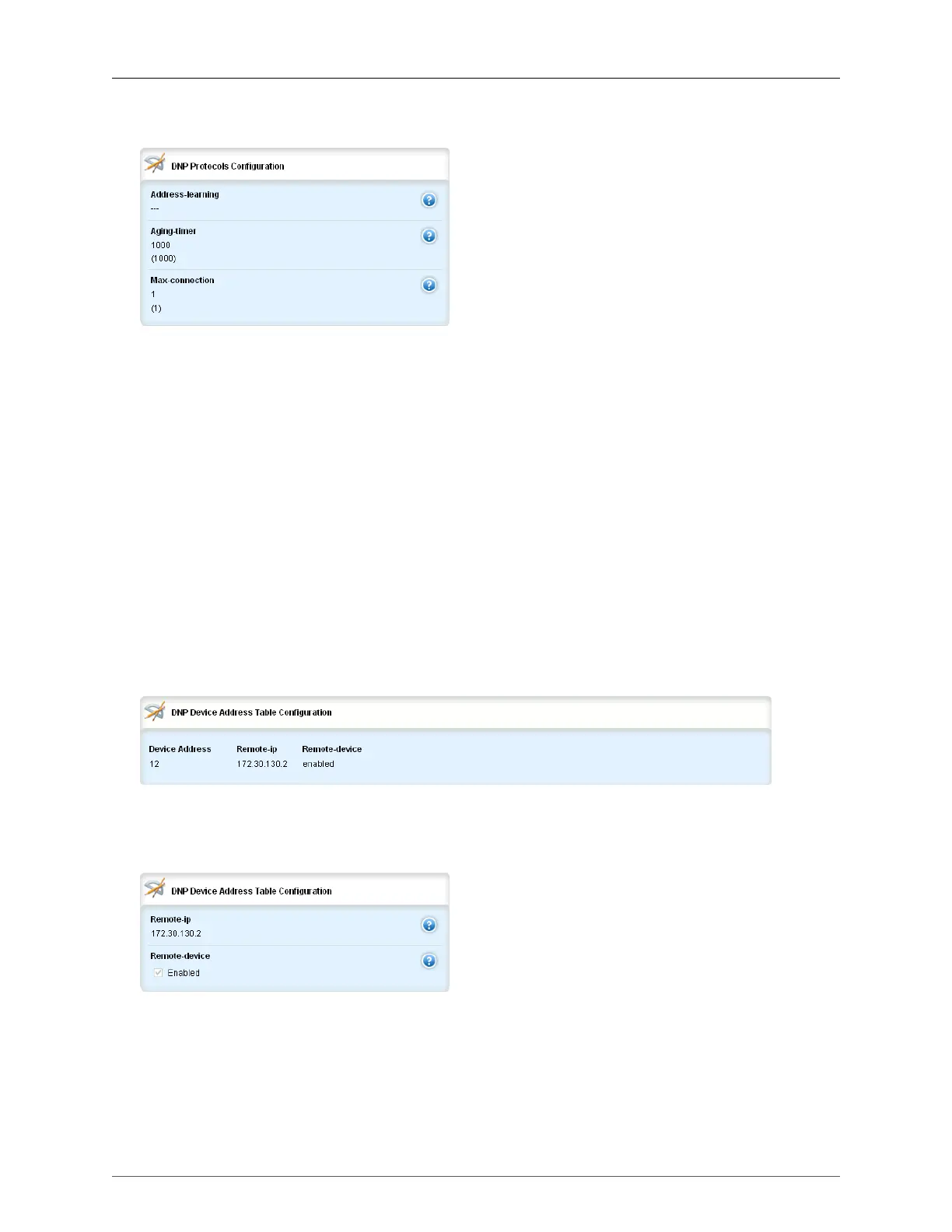

Figure 22.11. DNP Protocols Configuration form
The DNP Protocols Configuration form is used to configure the DNP settings for each port. To display
the DNP Protocols Configuration form, navigate to interface/serial/{line module}/protocols/dnp/setdnp.
address-learning
Synopsis: A string
The interface to learn the RTU address from.
aging-timer
Synopsis: integer
Default: 1000
The length of time which a learned DNP device in the Device Address Table may go without any
DNP communication before it is removed from the table.
max-connection
Synopsis: integer
Default: 1
The maximum number of incoming DNP connections.
Figure 22.12. DNP Device Address Table Configuration table
That Device Address table displays all currently known active DNP devices. To display the DNP Address
Table Configuration form, navigate to interface/serial/{line module}/protocols/dnp/setdnp/device-table.
Figure 22.13. DNP Device Address Table Configuration form
To display the DNP Address Table Configuration form, navigate to interface/serial/{line module}/
protocols/dnp/setdnp/device-table/{number}.
deviceAddress
Synopsis: integer
