30. Network Discovery
ROX™ v2.2 User Guide 352 RuggedBackbone™ RX1500
The LLDP submenu is accessible from the main menu under interface. The path to this menu is
interface/switch and then clicking on one of the linked submenus (for example, sm/1).

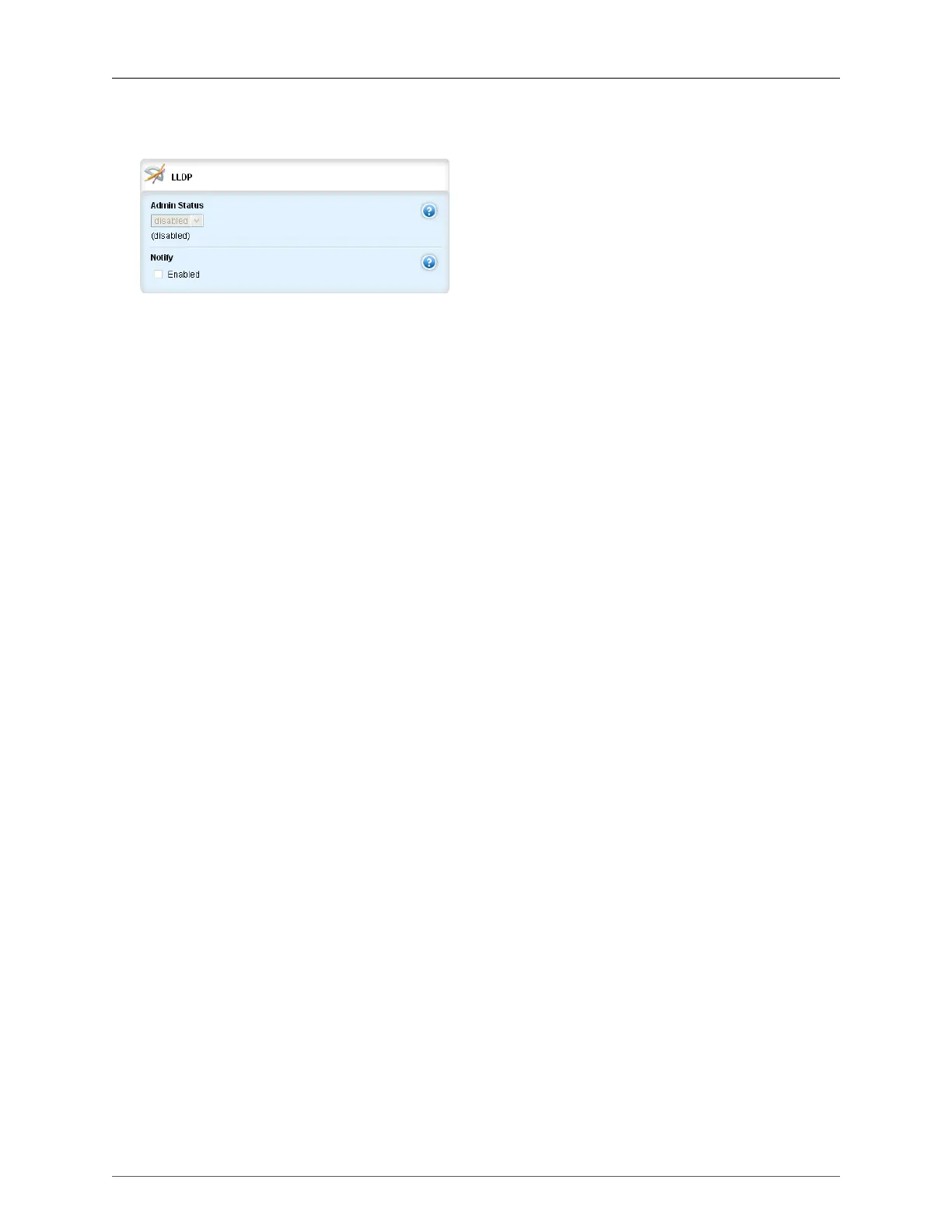

Figure 30.11. LLDP form
Admin Status
Synopsis: string - one of the following keywords { no-lldp, rx-tx, rx-only, tx-only }
Default: rx-tx
• no-lldp : The local LLDP agent can neither transmit nor receive LLDP frames.
• rxTx : The local LLDP agent can both transmit and receive LLDP frames through the port.
• txOnly : The local LLDP agent can only transmit LLDP frames.
• rxOnly : The local LLDP agent can only receive LLDP frames.
Notify
Disabling notifications will prevent sending notifications and generating alarms for a particular
interface from the LLDP agent. If a domain name is not specified here, the router will attempt to
extract this information from the host addresses.

RuggedCom RuggedBackbone RX1500 Specifications

General

Power Supply	Dual redundant, hot-swappable power supplies
Switching Capacity	Up to 128 Gbps
Operating Temperature Range	-40°C to +85°C
Mounting	DIN rail or panel mount
Certifications	IEEE 1613, IEC 61850-3, EN 50155, EN 50121-4
Power Input	24/48VDC or 110/220 VAC
Enclosure	Rugged metal
Type	Modular Layer 3 switch
