RuggedCom RuggedBackbone RX1500 User Manual

2. System Administration
ROX™ v2.2 User Guide 60 RuggedBackbone™ RX1500

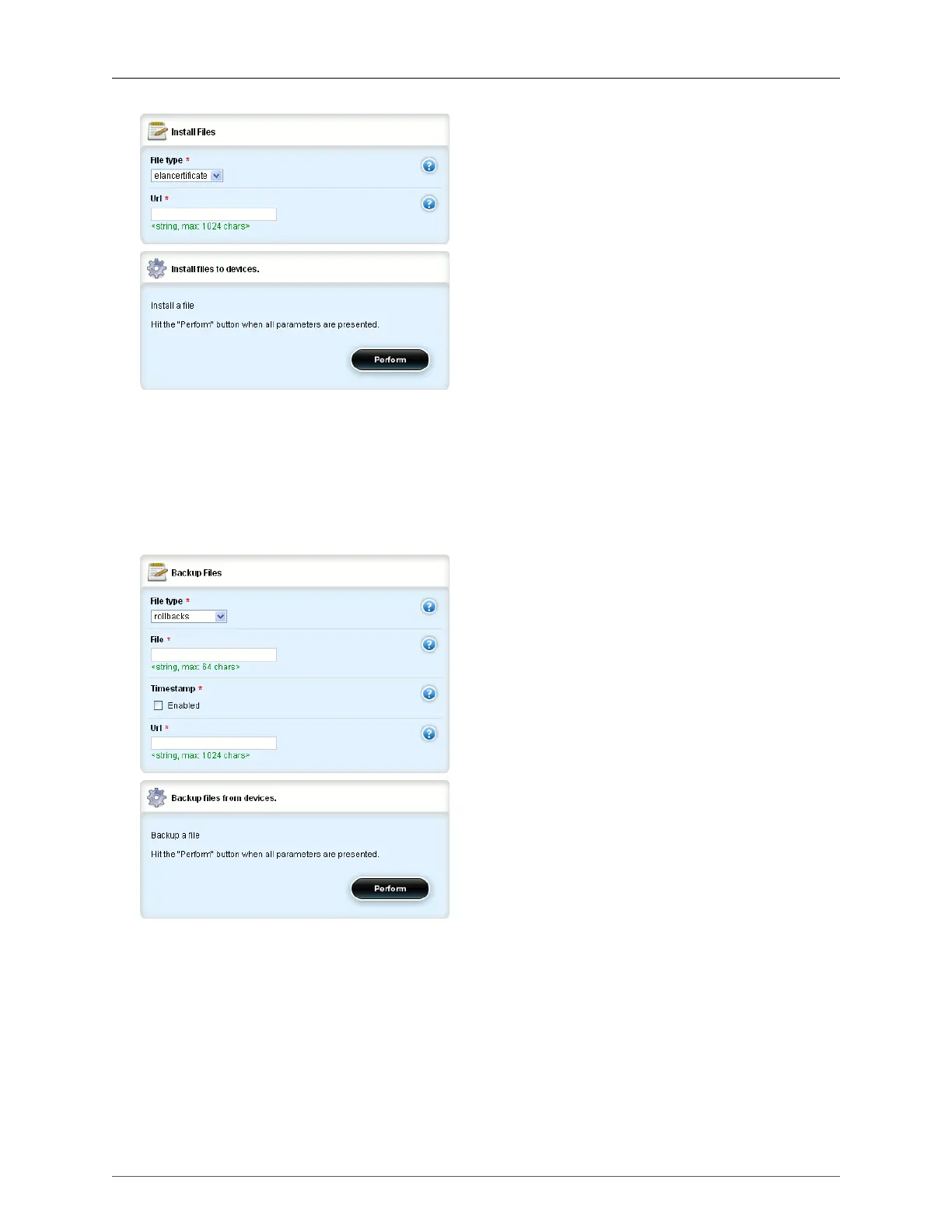

Figure 2.41. Install Files forms
On the Install Files form, select the file type and enter a URL. On the Install Files To Devices form,
click the Perform button.
2.9.2. Backing Up Files
To back up a file, click on backup-files. The Backup Files forms appear.
Figure 2.42. Backup Files forms
On the Backup Files form, select the file type and enter the required parameters. On the Backup Files
From Devices form, click the Perform button.

RuggedCom RuggedBackbone RX1500 Specifications

General

Power Supply	Dual redundant, hot-swappable power supplies
Switching Capacity	Up to 128 Gbps
Operating Temperature Range	-40°C to +85°C
Mounting	DIN rail or panel mount
Certifications	IEEE 1613, IEC 61850-3, EN 50155, EN 50121-4
Power Input	24/48VDC or 110/220 VAC
Enclosure	Rugged metal
Type	Modular Layer 3 switch
