RuggedCom RuggedBackbone RX1500 User Manual

40. VRRP
ROX™ v2.2 User Guide 482 RuggedBackbone™ RX1500

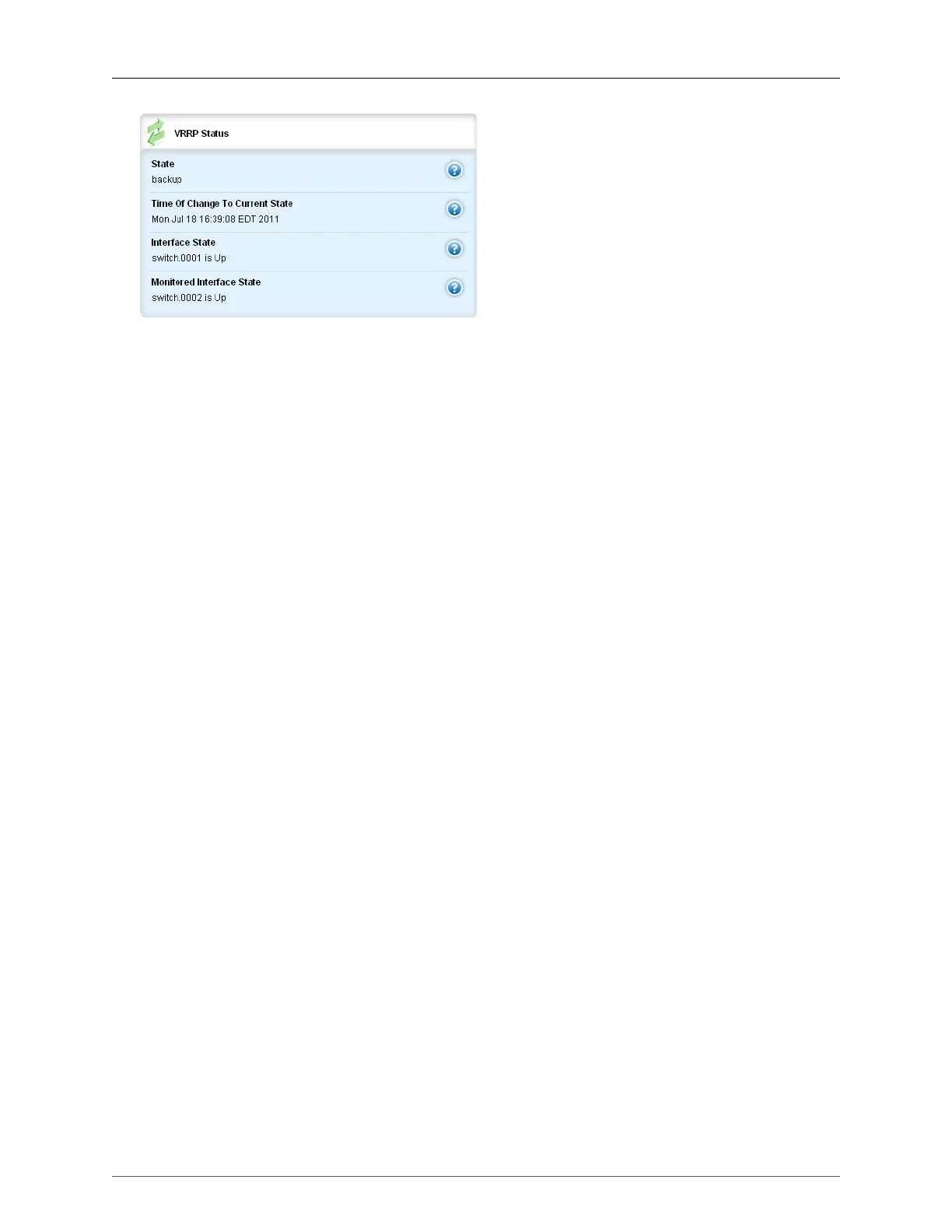

Figure 40.11. VRRP Status Form
To display this form, navigate to services/vrrp/status/{number}.
Instance Name
Synopsis: string
The VRRP instance name.
State
Synopsis: string
The VRRP instance state.
Time Of Change To Current State
Synopsis: string
The time of change to the current state.
Interface State
Synopsis: string
The VRRP interface state.
Monitored Interface State
Synopsis: string
Monitors the interface state.

RuggedCom RuggedBackbone RX1500 Specifications

General

Power Supply	Dual redundant, hot-swappable power supplies
Switching Capacity	Up to 128 Gbps
Operating Temperature Range	-40°C to +85°C
Mounting	DIN rail or panel mount
Certifications	IEEE 1613, IEC 61850-3, EN 50155, EN 50121-4
Power Input	24/48VDC or 110/220 VAC
Enclosure	Rugged metal
Type	Modular Layer 3 switch
