23. WAN
ROX™ v2.2 User Guide 260 RuggedBackbone™ RX1500
FSE
Synopsis: unsigned integer
Full Status Enquiry messages sent.
LIVSE
Synopsis: unsigned integer
Link Integrity Verification Status Enquiry messages sent.
FS
Synopsis: unsigned integer
Full Status messages received.
LIVS
Synopsis: unsigned integer
Link Integrity Verification Status messages received.
CPEI
Synopsis: unsigned integer
CPE initializations.
SSEQ
Synopsis: unsigned integer
The current Send Sequence Number.
RSEQ
Synopsis: unsigned integer
The current Receive Sequence Number.
N392
Synopsis: unsigned integer
The current N392 count.
N393
Synopsis: unsigned integer
The current N393 count.

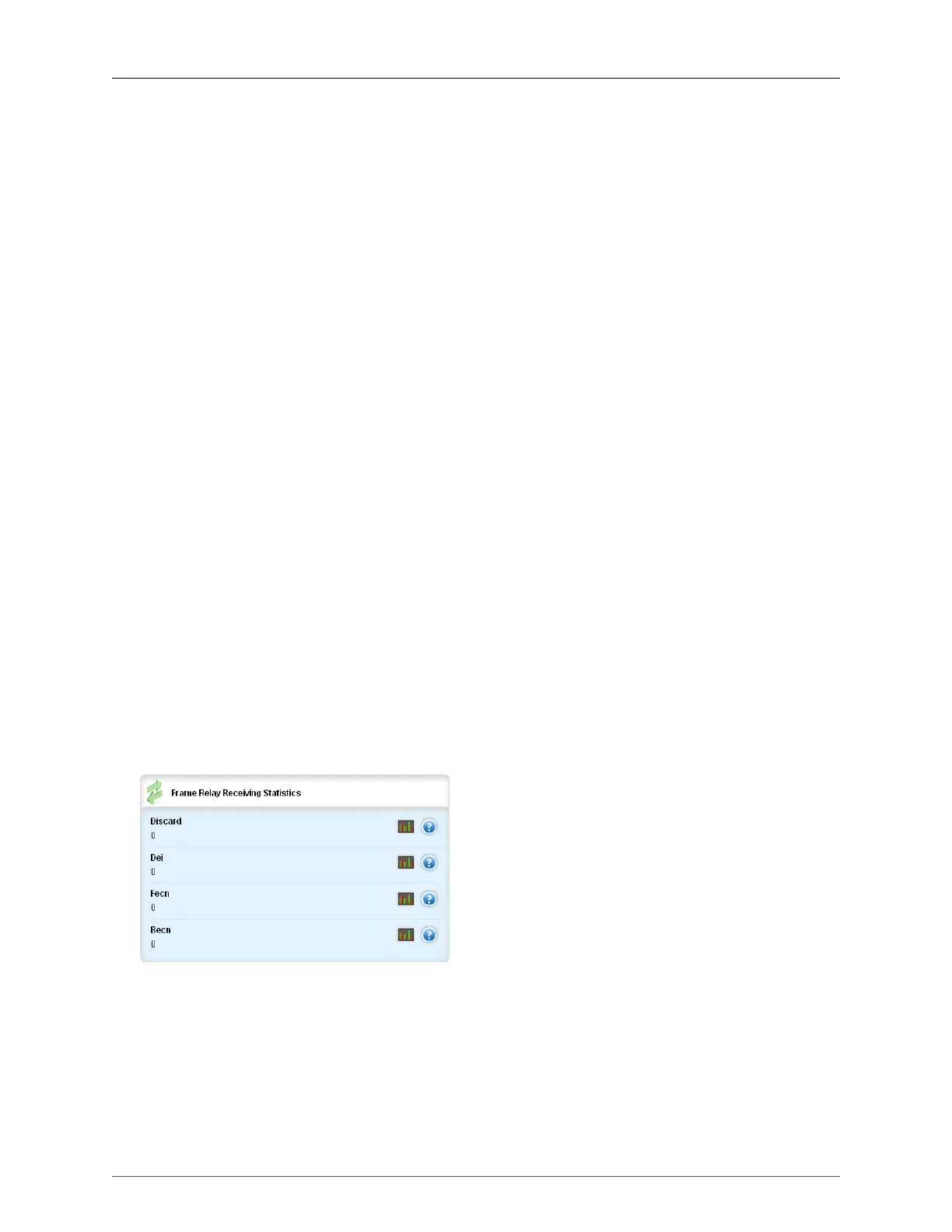

Figure 23.34. Frame Relay Receiving Statistics form
Discard
Synopsis: unsigned integer
Received I-frames that were discarded due to inactive DLCI.
DEI
Synopsis: unsigned integer
