Input/Output Terminals
Function diagrams
2-455
© Siemens AG 2009 All Rights Reserved
SINAMICS G120 Control Units CU230P-2 Parameter Manual (LH9), 11/2009

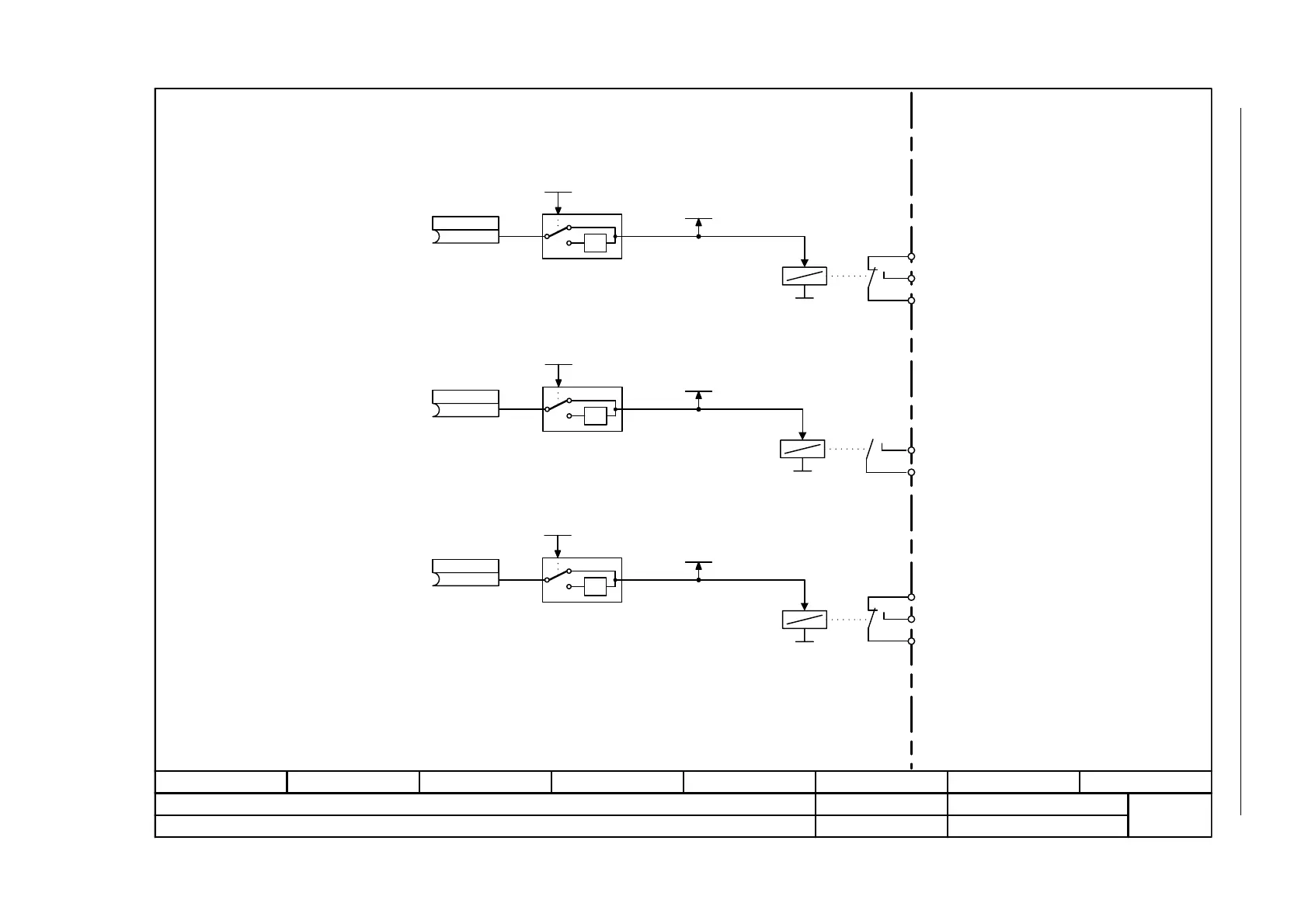

Fig. 2-14 2230 – Digital outputs (DO0 ... DO2)
- 2230 -
Function diagram
87654321
FP_2230_97_01.vsd
External Interfaces
G120 CU230P-2
29.10.2009 V4.3
Digital outputs (DO0 … DO2)
-1
0
1
-1
0
2
-1
0
4
(52.3)
CU S_src DO 0
p0730
(52.7)
CU S_src DO 1
p0731
(52.2)
CU S_src DO 2
p0732
CU DO invert
p0748
CU DO invert
p0748
CU DO invert
p0748
.2
NO
COM
NC
Kl.20
Kl.19
Kl.18
NO
COM
Kl.22
Kl.21
NO
COM
NC
Kl.25
Kl.24
Kl.23
DO0
DO1
DO2
<2> Kl. = Terminal
<2>
Sampling time of the DO : 2 ms
CU DO status
r0747
CU DO status
r0747
CU DO status
r0747
.1
.0
