Free Function Blocks

Function diagrams

2-539

SINAMICS G120 Control Units CU230P-2 Parameter Manual (LH9), 11/2009

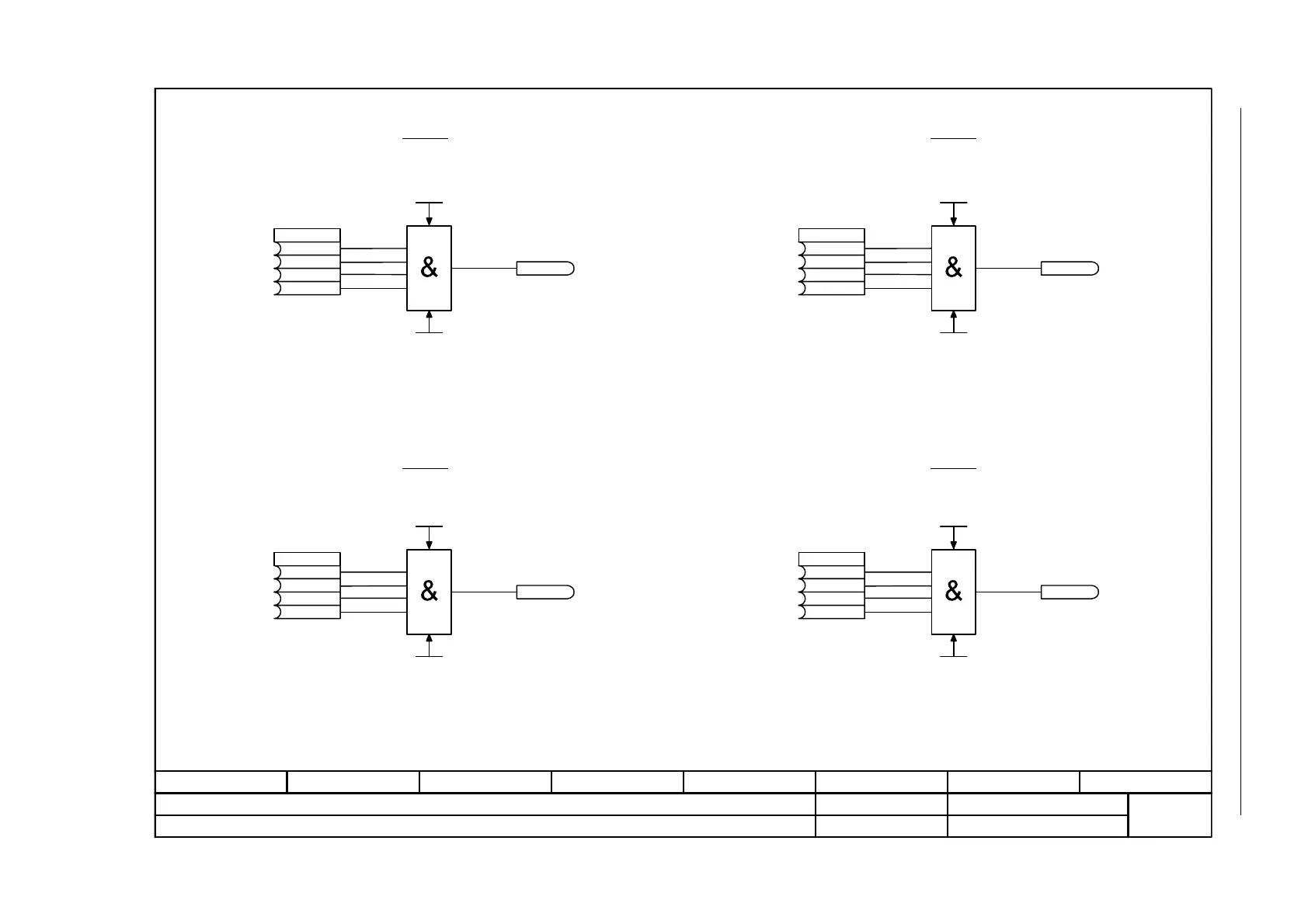

Fig. 2-90 7210 – AND (AND function block with 4 inputs)

- 7210 -

Function diagram

87654321

FP_7210_97_51.vsd

Logic function blocks

G120 CU230P-2

29.10.2009 V4.3

AND (AND function block with 4 inputs)

AND 1

AND 0

AND 3

AND 2

[0]

AND 0 inputs

p20030

[1]

[2]

[3]

AND 0 output Q

r20031

AND 0 RTG

1 ... 9999

p20032 (9999)

AND 0 RunSeq

0 ... 32000

p20033 (10)

[0]

AND 2 inputs

p20038

[1]

[2]

[3]

AND 2 output Q

r20039

AND 2 RTG

1 ... 9999

p20040 (9999)

AND 2 RunSeq

0 ... 32000

p20041 (30)

[0]

AND 1 inputs

p20034

[1]

[2]

[3]

AND 1 output Q

r20035

AND 1 RTG

1 ... 9999

p20036 (9999)

AND 1 RunSeq

0 ... 32000

p20037 (20)

[0]

AND 3 inputs

p20042

[1]

[2]

[3]

AND 3 output Q

r20043

AND 3 RTG

1 ... 9999

p20044 (9999)

AND 3 RunSeq

0 ... 32000

p20045 (40)
