Siemens CU230P-2 DP - Fig. 2-87 6730 - Interface to the Power Module (p0300 = 1)

Vector control
Function diagrams
2-535
© Siemens AG 2009 All Rights Reserved SINAMICS G120 Control Units CU230P-2 Parameter Manual (LH9), 11/2009

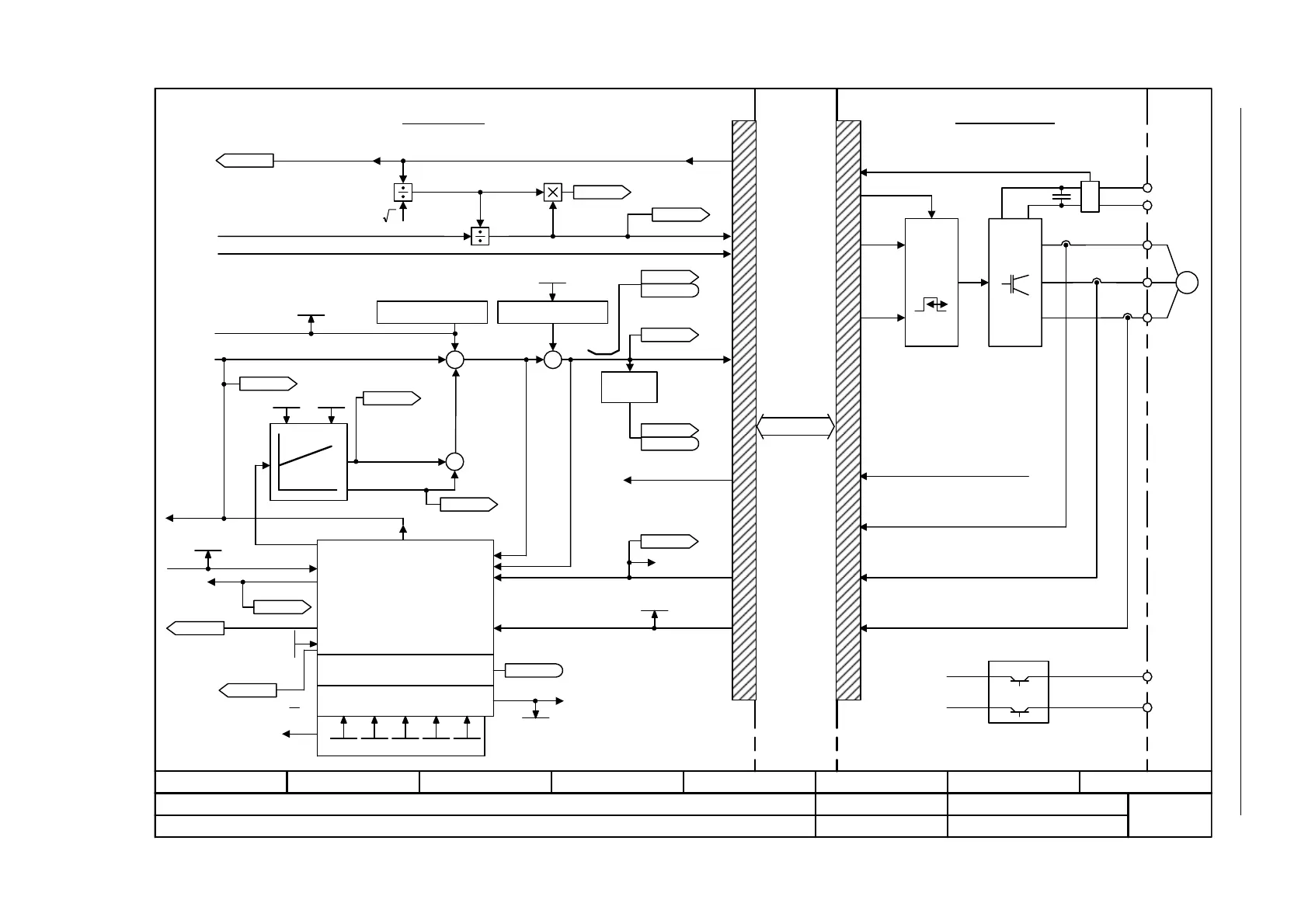

Fig. 2-87 6730 – Interface to the Power Module (p0300 = 1)
- 6730 -
Function diagram
87654321
FP_6730_97_54.vsd
Vector control
G120 CU230P-2
29.10.2009 V4.3
Interface to the Power Module (ASM, p0300 = 1)
[6723.1]
[6799.1]
PWM
M
~
+
–
U
V
W
+ BRP
-BRN
P24
M
p1750 p1755 p1756 p1758
Kp Tn
p1764
2
p1759
[1690.1]
[6640.1]
Iq
M
[6722.7]
r1408.12
[6714.1]
[6310.5]
[6640.5]
[6710.2]
[6714.1]
+
+
+
+
+
+
+
[8012.3]
[1690.8]
[6714.8]
[6799.1]
[6799.1]
[6799.1]
[2526.2]
Precontrol speed
n_act
Adaptation controller
Motor model (observer)
Stall monitoring
Model control
Vibration damping
Sign
+ or -
I_max Power Module
Brake control
I_max Power Module
Pulse enable HW
DC link voltage
Power Module
Control Unit
U_set
U_angle
r0070
Vdc act val [V]
r0072
V_output [Veff]
r0074
Modulat_depth [%]
f_Slip
r0065
Gain res_damp
p1740
ZSW cl-loop ctrl
r0056
r0056
.11
r0066
f_outp [Hz]
ZSW cl-loop ctrl
r0056
r0056
.07
R_stator act
r0395
r0087
Cos phi act
r0084
Flux act val [%]
r0094
Transformat_angle [°]
MotMod Status
r1751
PM-IF
[6030.8]
[6310.1] [6799.1]
Current model
Outp_ph_seq rev
p1820
r1771
MotMod n_adapt Tn [1/min]
r1770
MotMod n_adapt Kp [1/min]
p1767
U_phase act val [V]
r0089[0..2]
r0069[0..6]
I_phase act value [A]
r0063[0..2]
n_act [1/min]
r1762, r1763, r1778
p1745
p1750 ... p1759
