Siemens CU230P-2 DP - Fig. 2-101 7233 - PDF (switch-out delay)

Function diagrams Free Function Blocks 2-550
© Siemens AG 2009 All Rights Reserved
SINAMICS G120 Control Units CU230P-2 Parameter Manual (LH9), 11/2009

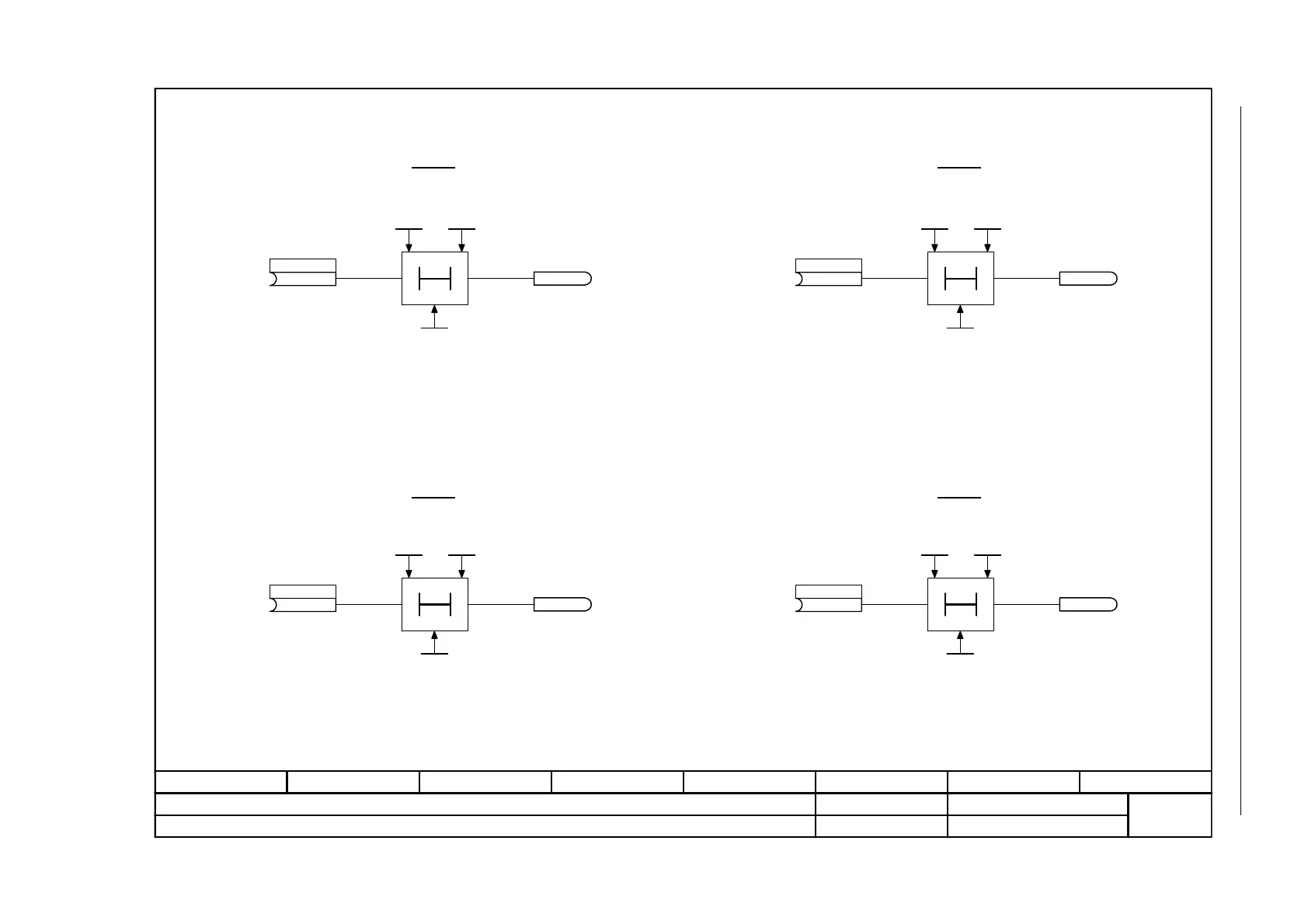

Fig. 2-101 7233 – PDF (switch-out delay)
- 7233 -
Function diagram
87654321
FP_7233_97_51.vsd
Time function blocks
G120 CU230P-2
29.10.2009 V4.3
PDF (switch-out delay)
PDF 3
PDF 2
IQ
T
PDF 2 RTG
5 ... 9999
p20347 (9999)
PDF 2 t_ext ms
0.00 ... 60000.00
p20345 (0.00)
PDF 2 RunSeq
0 ... 32000
p20348 (920)
(0)
PDF 2 inp_pulse I
p20344
PDF 2 output Q
r20346
0T
IQ
T
PDF 3 RTG
5 ... 9999
p20352 (9999)
PDF 3 t_ext ms
0.00 ... 60000.00
p20350 (0.00)
PDF 3 RunSeq
0 ... 32000
p20353 (930)
(0)
PDF 3 inp_pulse I
p20349
PDF 3 output Q
r20351
0T
PDF 1
PDF 0
IQ
T
PDF 0 RTG
5 ... 9999
p20171 (9999)
PDF 0 t_ext ms
0.00 ... 60000.00
p20169 (0.00)
PDF 0 RunSeq
0 ... 32000
p20172 (460)
(0)
PDF 0 inp_pulse I
p20168
PDF 0 output Q
r20170
0T
IQ
T
PDF 1 RTG
5 ... 9999
p20176 (9999)
PDF 1 t_ext ms
0.00 ... 60000.00
p20174 (0.00)
PDF 1 RunSeq
0 ... 32000
p20177 (470)
(0)
PDF 1 inp_pulse I
p20173
PDF 1 output Q
r20175
0T
