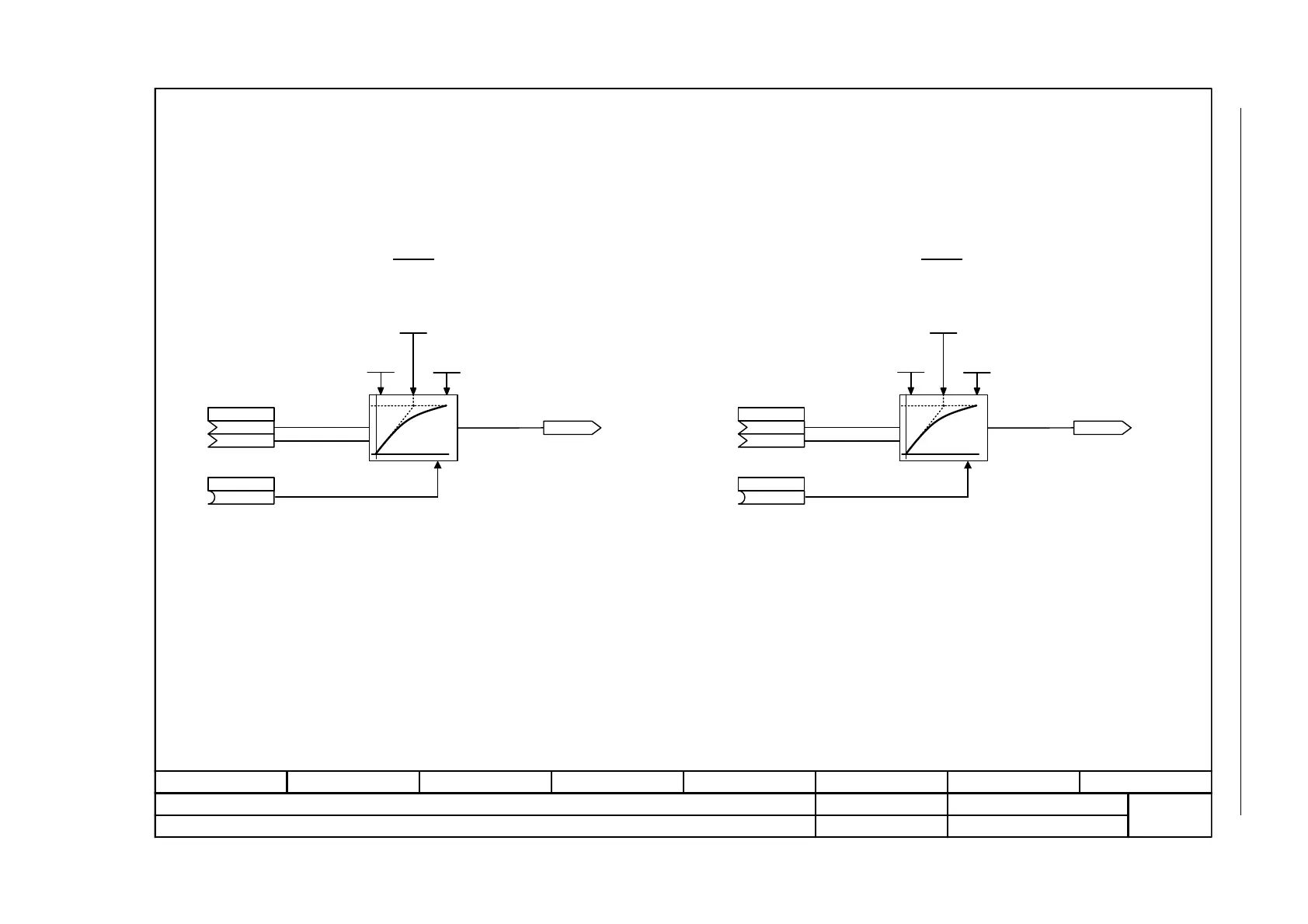

Fig. 2-106 7262 – PT1 (smoothing element)
- 7262 -
Function diagram
87654321
FP_7262_97_51.vsd
Control function blocks
G120 CU230P-2
29.10.2009 V4.3
PT1 (smoothing element)
PT1 0
X
Y
SV
S
PT1 1
T
PT1 0 RunSeq
0 ... 32000
p20249 (670)
PT1 0 RTG
5 ... 9999
p20248 (9999)
r20247
PT1 0 output Y
PT1 0 T_smooth ms
0.00 ... 340.28235E36
p20246 (0.00)
PT1 0 inputs
[0]
p20244
[1]
(0)
PT1 0 acc set val
p20245
Input
Set value
X
Y
SV
S
T
PT1 1 RunSeq
0 ... 32000
p20255 (680)
PT1 1 RTG
5 ... 9999
p20254 (9999)
r20253
PT1 1 output Y
PT1 1 T_smooth ms
0.00 ... 340.28235E36
p20252 (0.00)
PT1 1 inputs
[0]
p20250
[1]
(0)
PT1 1 acc set val
p20251
Input
Set value
