Siemens CU230P-2 DP User Manual

Function diagrams Faults and warnings 2-584
© Siemens AG 2009 All Rights Reserved
SINAMICS G120 Control Units CU230P-2 Parameter Manual (LH9), 11/2009

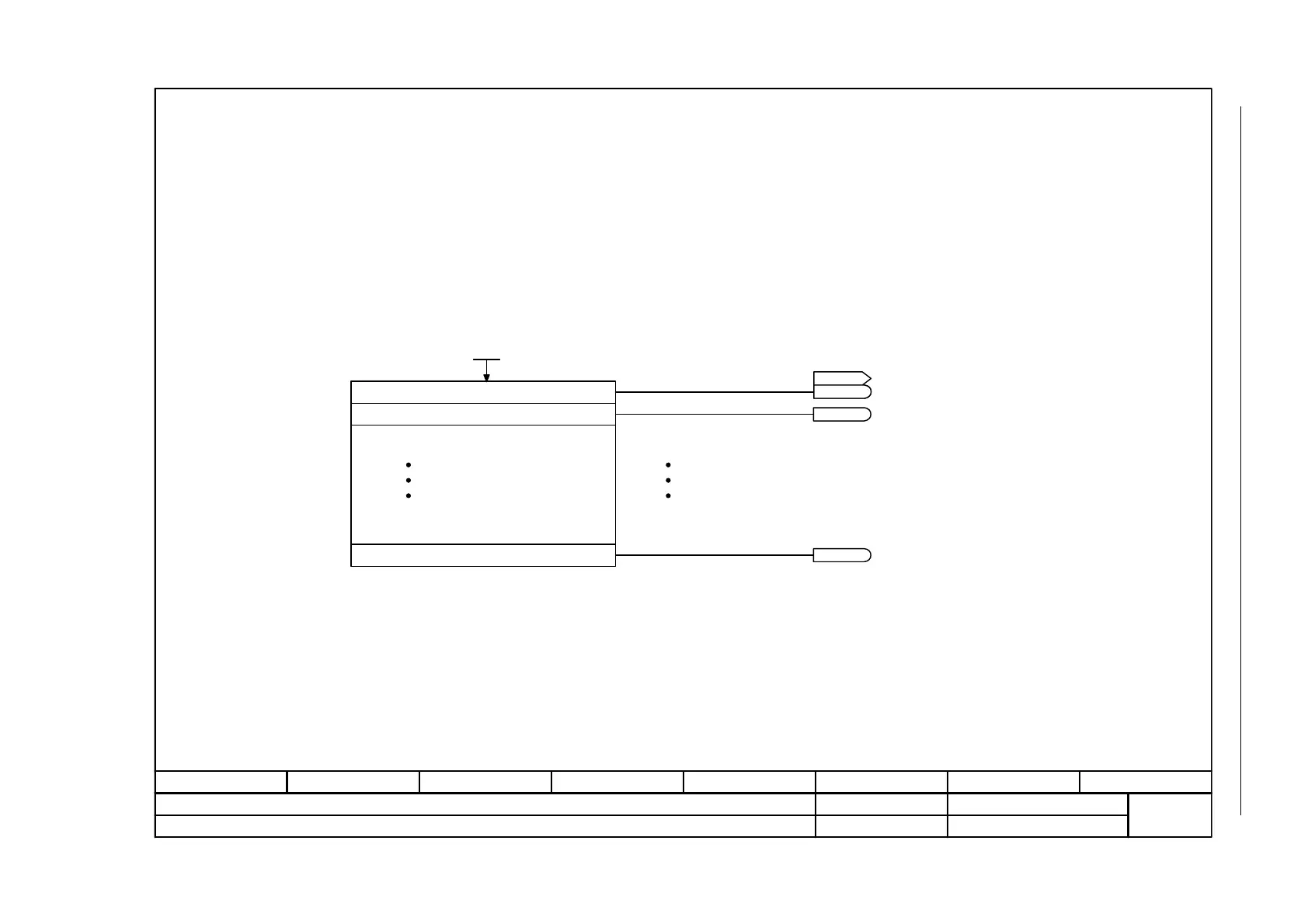

Fig. 2-131 8070 – Fault/warning trigger word (r2129)
- 8070 -
Function diagram
87654321
FP_8070_97_51.vsd
Faults and warnings
G120 CU230P-2
29.10.2009 V4.3
Fault/warning trigger word (r2129)
[0]
[1]
[15]
r2129.15
r2129.1
0. Fault/alarm code
1. Fault/alarm code
15. Fault/alarm code
Setting, fault/alarm trigger
1. Message/signal present
0. Message/signal present
15. Message/signal present
Fault/alarm trigger word
(e.g. as trigger condition to record traces)
Message trigger
0 ... 65535
p2128 (0)
Trigger word
r2129
r2129
r2129.0
