3. SIGNALS AND WIRING

3 - 57

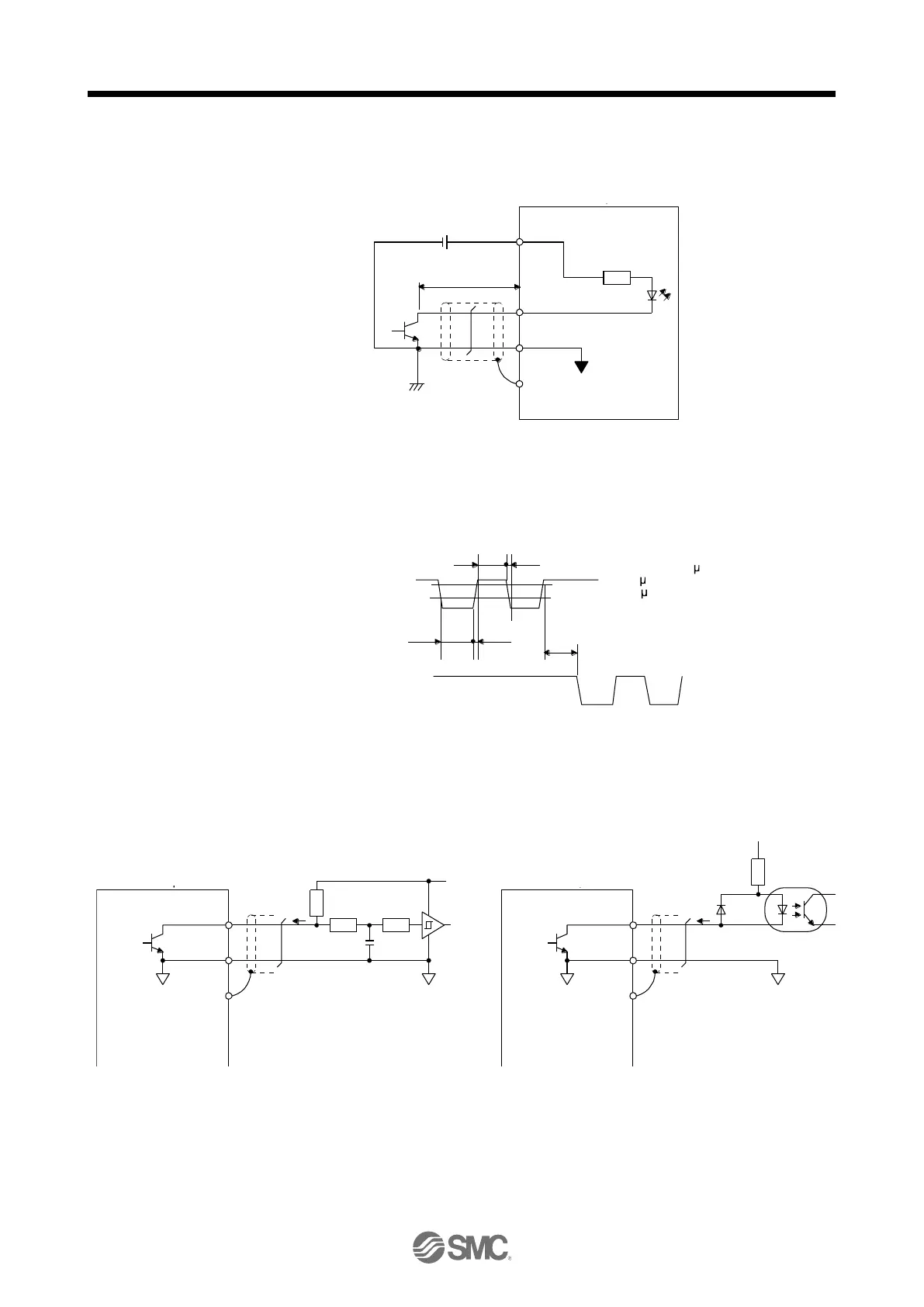

(b) Open-collector type

1) Interface

Approximately

1.2 kΩ

Servo amplifier

24 V DC

OPC

PP, NP

DOCOM

Max. input pulse

frequency 200 kpulses/s

2 m or less

(Note)

Note.

Pulse train input interface is comprised of a photocoupler.

If a resistor is connected to the pulse train signal line, it may malfunction due to

reduction in current.

2) Input pulse condition

0.9

0.1

tc tLH

tc tHL

tLH = tHL < 0.2 s

tc > 2 s

tF > 3 s

(4) Encoder output pulse DO-2

(a) Open-collector type

Interface

Maximum sink current: 35 mA

Photocoupler

Servo amplifier

5 V DC to 24 V DC

Driver
